ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

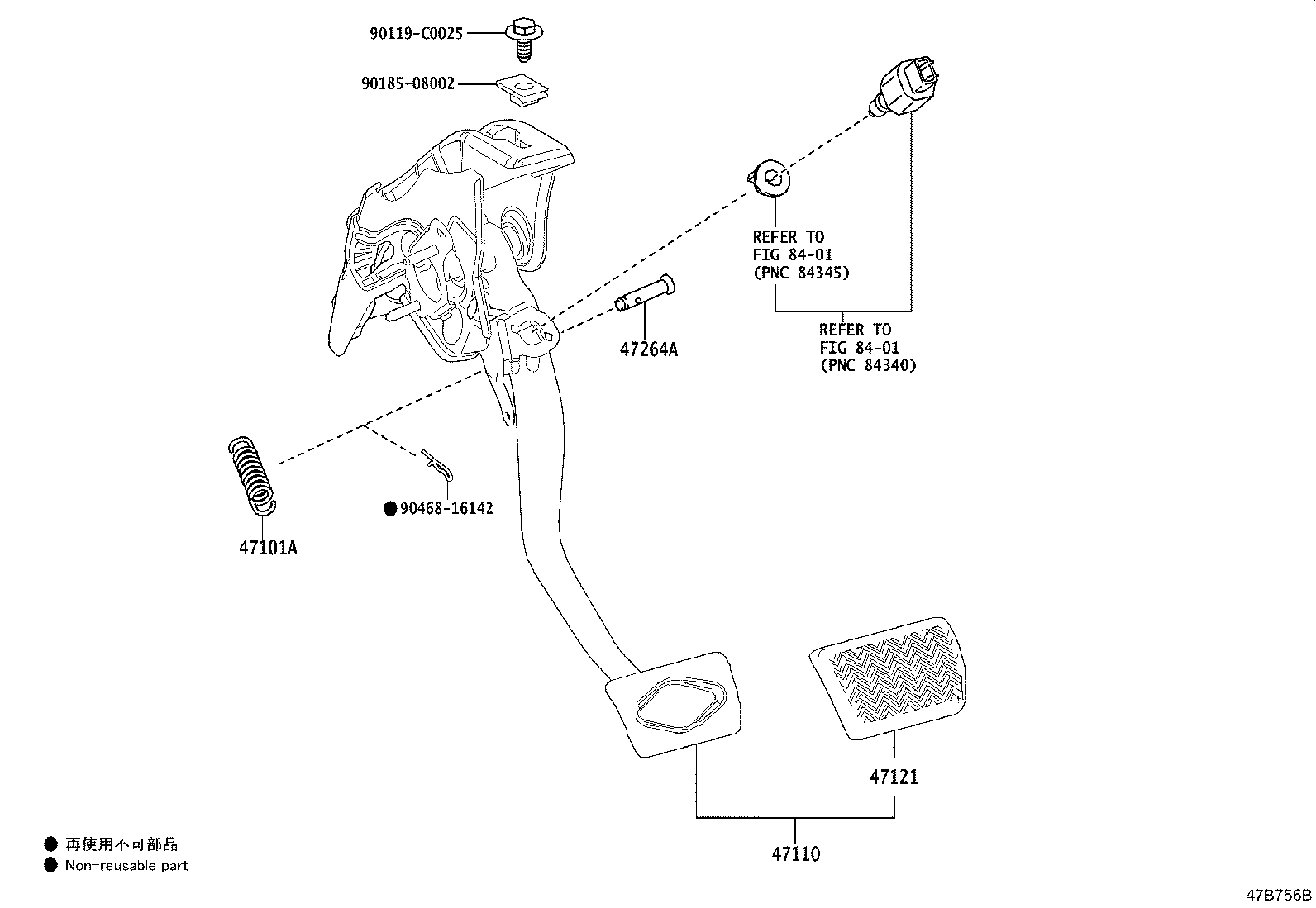

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90506-14090 |
ZWE183 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-02390 |
ZWE183 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-02110 |
ZWE183 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-33011 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0025 | ||||
| 90185-08002 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
