ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

Click highlighted areas on diagram

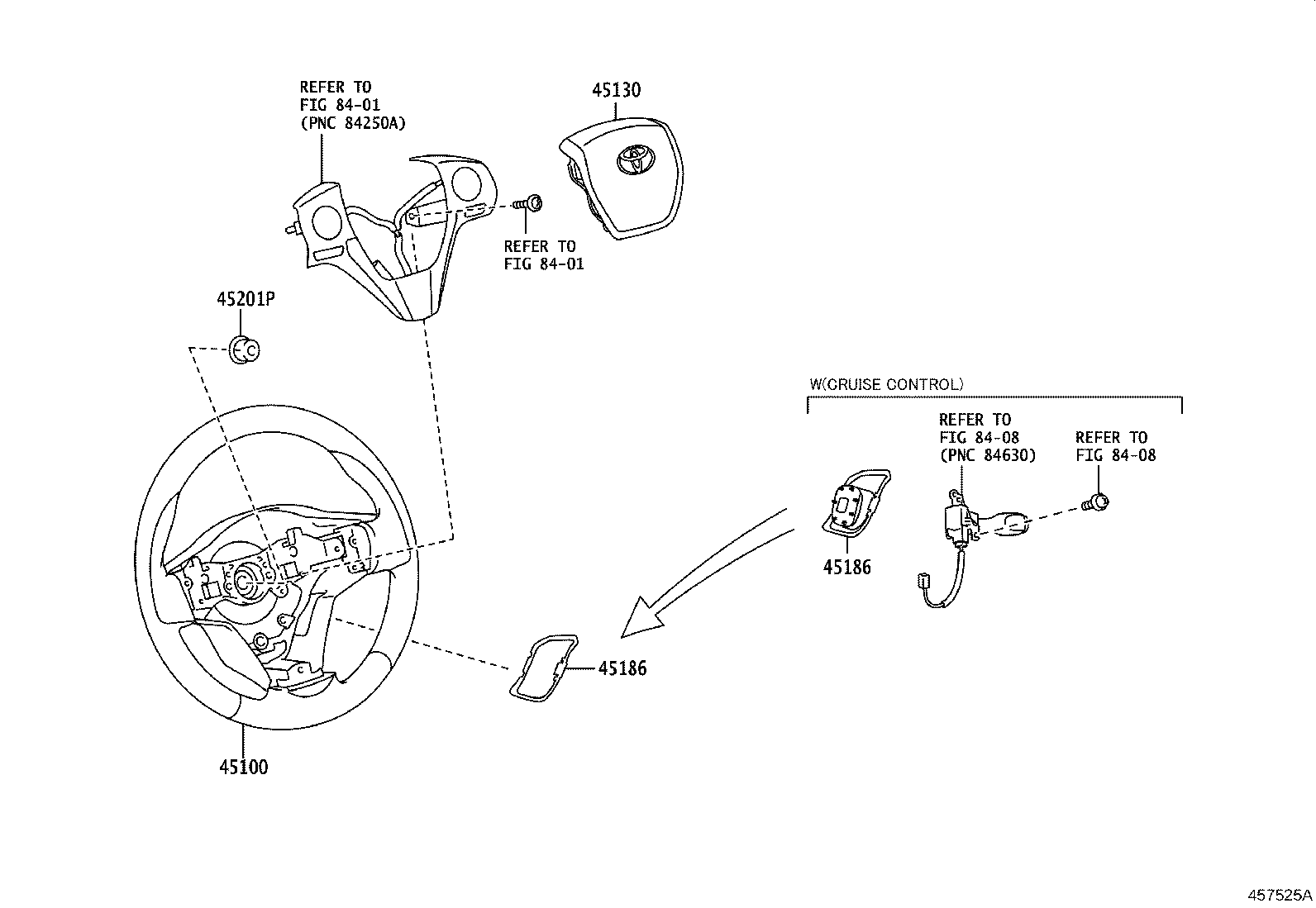

diagram 45100 45130 45186 45186 45201P 8401 8401 8408 8408
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-02S90C0

ZWE183..E,G

3-SPOKE,URETHANE,BLACK,TRIM0#,2#,4#

 1
45100-0Z290C0

ZWE183..V

3-SPOKE,LEATHER,BLACK,TRIM0#,2#,4#

 1
45130 - BUTTON ASSY, HORN
45130-02670C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02180C0

ZWE183..E,G

BLACK,TRIM0#,2#,4#

 1
45186-02310C0

ZWE183..V

BLACK,TRIM0#,2#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02180C0

ZWE183..E,G

BLACK,TRIM0#,2#,4#

 1
45186-02310C0

ZWE183..V

BLACK,TRIM0#,2#,4#

 1
45201P - NUT, STEERING WHEEL SET
90178-C0025

ZWE183

 1
Linked diagrams
8401
8408
