ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

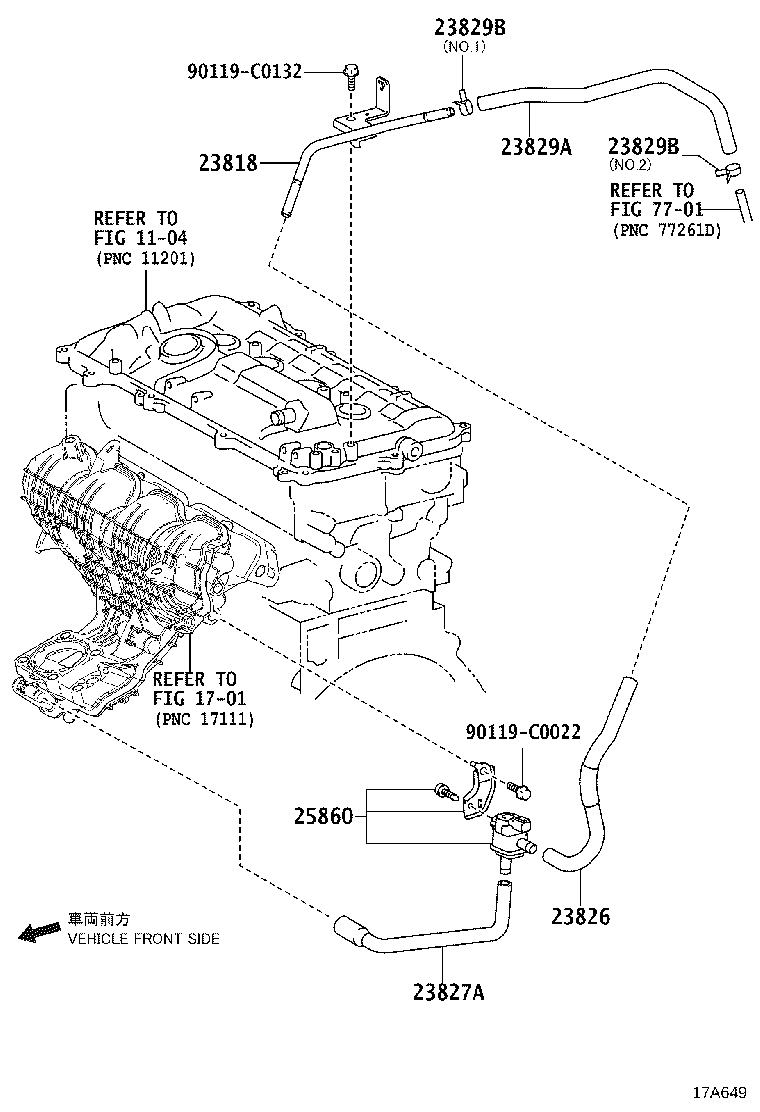

Click highlighted areas on diagram

diagram 1104 1701 23818 23826 23827A 23829A 23829B 23829B 25860 7701 90119C0022 90119C0132
Part # Description Qty Price
23818 - PIPE, FUEL VAPOR FEED
23818-0T020

8ZRFXE..ZWE183

 1
23818-37010

8ZRFXE..ZWE183

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T380

8ZRFXE..ZWE183

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37040

8ZRFXE..ZWE183

 1
23829A - HOSE, FUEL VAPOR FEED
23826-0T340

8ZRFXE..ZWE183

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-C0039

8ZRFXE..ZWE183

(L),NO.1

 1
96136-41901

8ZRFXE..ZWE183

(J),NO.1

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-C0039

8ZRFXE..ZWE183

(L),NO.1

 1
96136-41901

8ZRFXE..ZWE183

(J),NO.1

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-37020

8ZRFXE..ZWE183

 1
Common parts
90119-C0022
90119-C0132
Linked diagrams
1104
1701
7701
