ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999

Engine 8ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1904- )

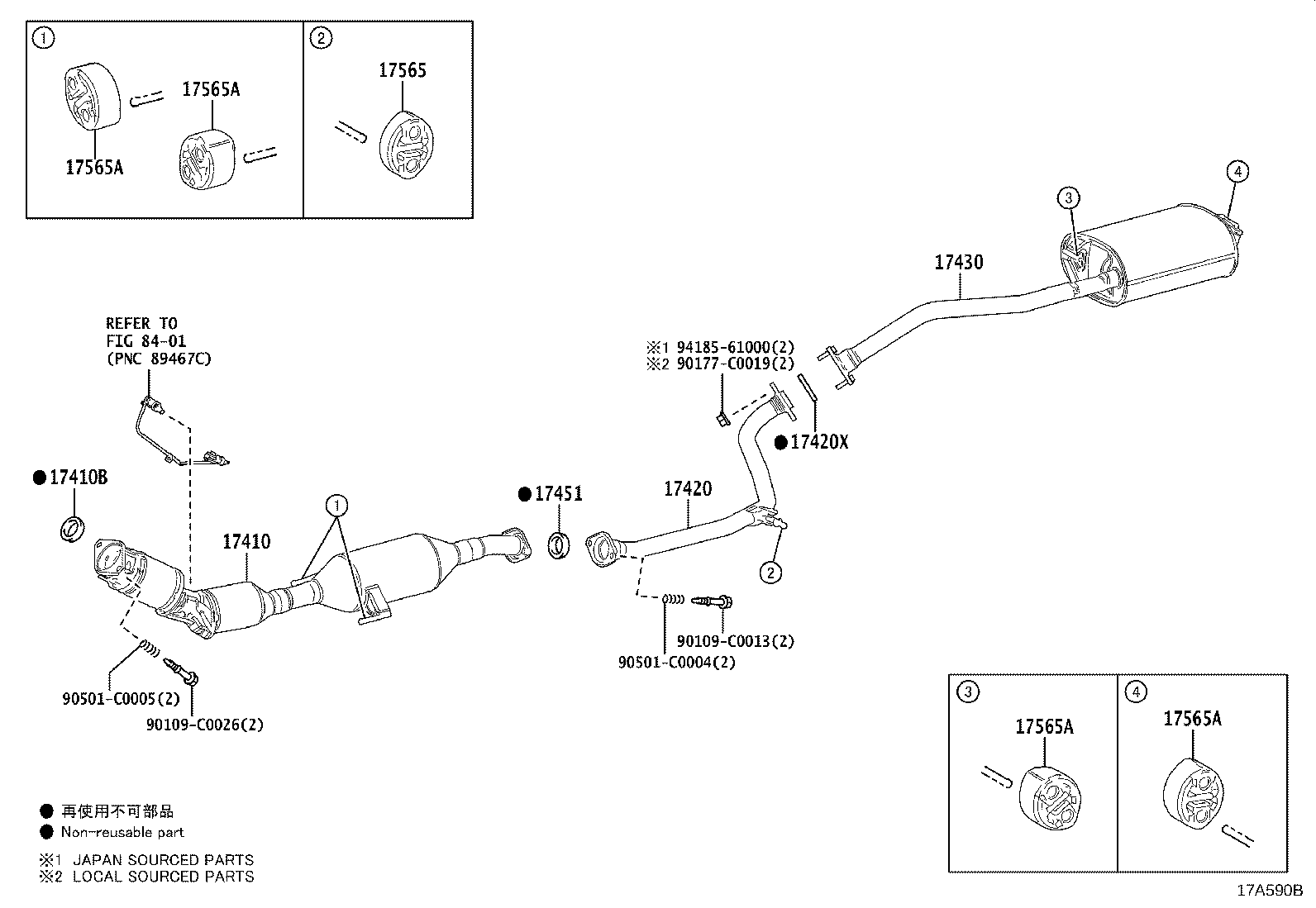

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0TF00	8ZRFXE..ZWE183	04/2019 - 12/2999	1
17410B - GASKET, EXHAUST PIPE
17451-0T010	8ZRFXE..ZWE183	04/2019 - 12/2999	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0T090	8ZRFXE..ZWE183	04/2019 - 12/2999	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06089	8ZRFXE..ZWE183	04/2019 - 12/2999	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T450	8ZRFXE..ZWE183	04/2019 - 12/2999	1
17451 - GASKET, EXHAUST PIPE
17451-0T022	8ZRFXE..ZWE183	04/2019 - 12/2999	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0H070	8ZRFXE..ZWE183	04/2019 - 12/2999	1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080	8ZRFXE..ZWE183	04/2019 - 12/2999	4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080	8ZRFXE..ZWE183	04/2019 - 12/2999	4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080	8ZRFXE..ZWE183	04/2019 - 12/2999	4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0H080	8ZRFXE..ZWE183	04/2019 - 12/2999	4
Common parts
90109-C0013
90109-C0026
90177-C0019
90501-C0004
90501-C0005
94185-61000
Linked diagrams
8401
