ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

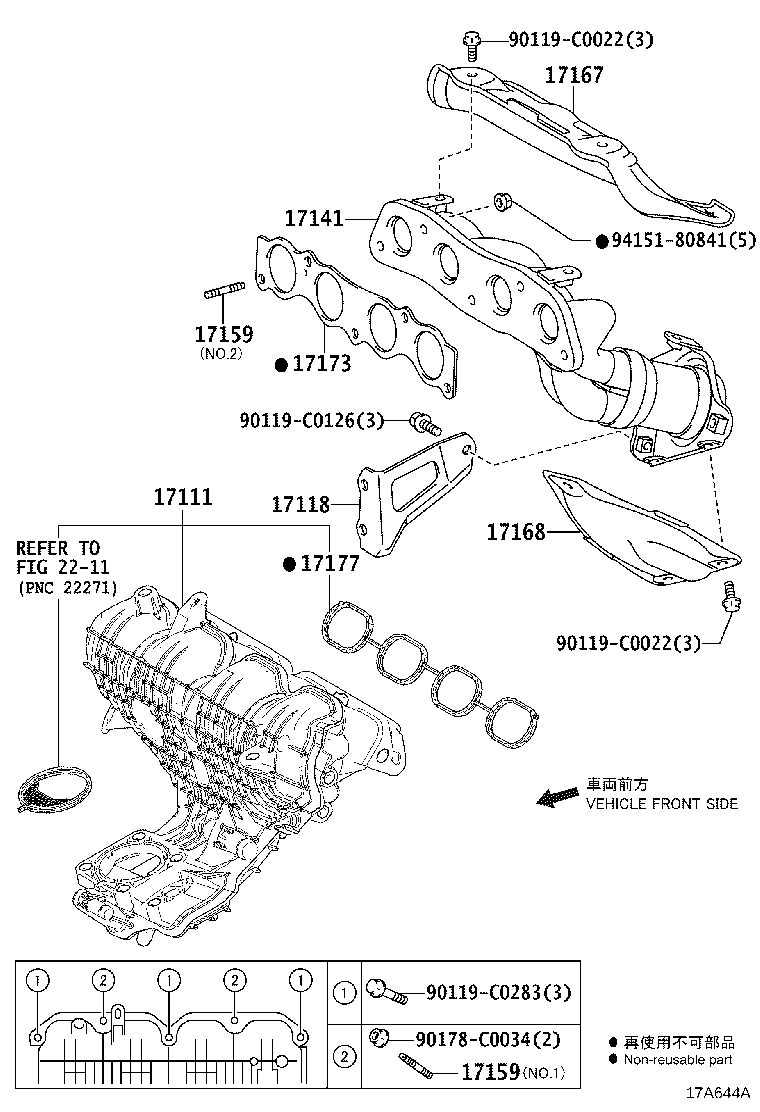

Click highlighted areas on diagram

diagram 17111 17118 17141 17159 17159 17167 17168 17173 17177 2211 90119C0022 90119C0022 90119C0126 90119C0283 90178C0034 9415180841
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0T160

8ZRFXE..ZWE183

 1
17118 - STAY, MANIFOLD
17118-0T070

8ZRFXE..ZWE183

 1
17141 - MANIFOLD, EXHAUST
17141-0T110

8ZRFXE..ZWE183

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

8ZRFXE..ZWE183

NO.1

 2
90126-08052

8ZRFXE..ZWE183

NO.2

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

8ZRFXE..ZWE183

NO.1

 2
90126-08052

8ZRFXE..ZWE183

NO.2

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0T110

8ZRFXE..ZWE183

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0T100

8ZRFXE..ZWE183

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0T010

8ZRFXE..ZWE183

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0T010

8ZRFXE..ZWE183

 1
Common parts
90119-C0022
90119-C0126
90119-C0283
90178-C0034
94151-80841
Linked diagrams
2211
