ZWE183L-CEXVBC (2019)
Toyota Levin

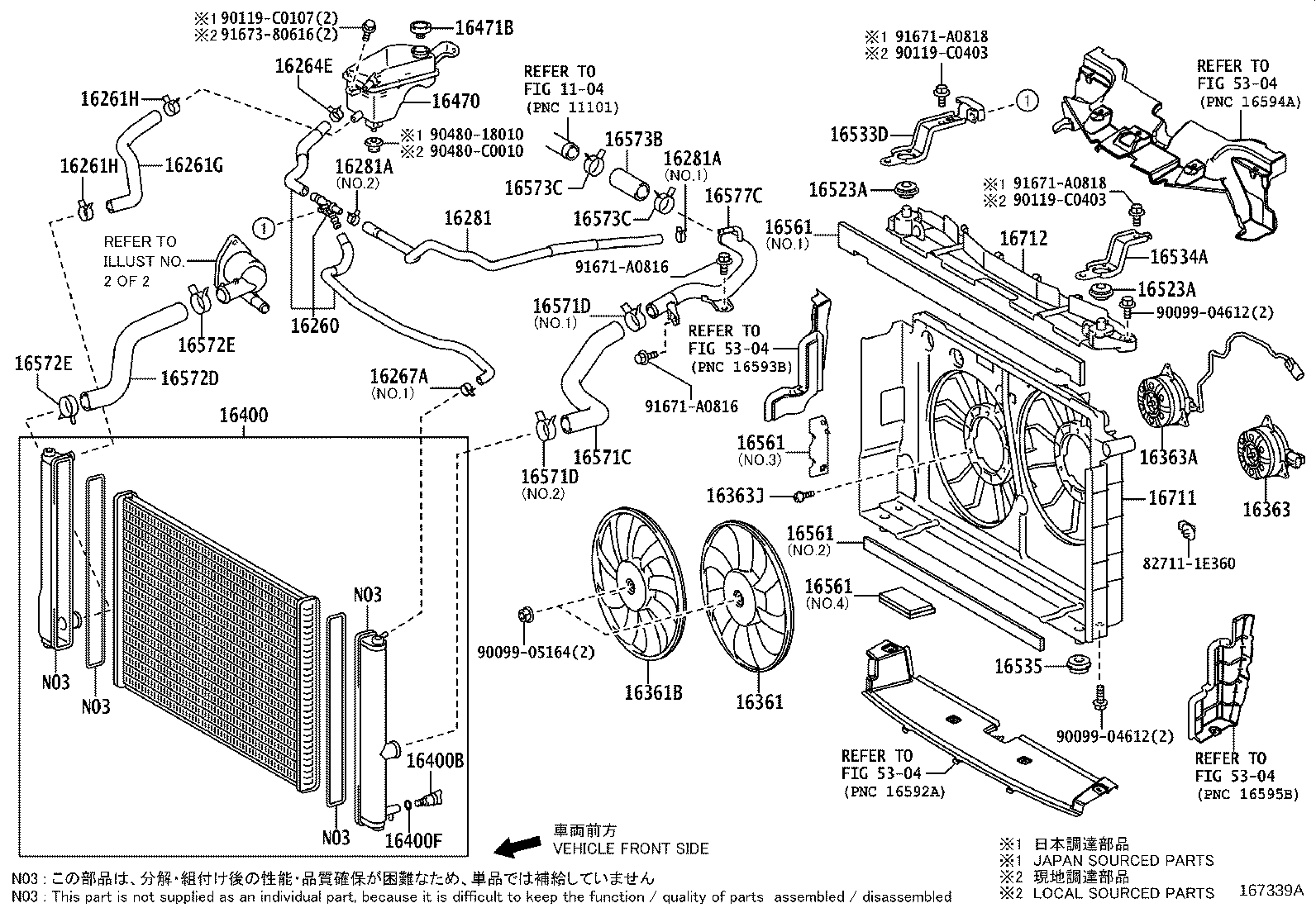

ILLUST NO. 1 OF 2(1904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-0T090 |
8ZRFXE..ZWE183 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0T220 |
8ZRFXE..ZWE183 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0014 |
8ZRFXE..ZWE183 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0014 |
8ZRFXE..ZWE183 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0004 |
8ZRFXE..ZWE183 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0005 |
8ZRFXE..ZWE183 NO.1 |
1 | ||
| 90466-C0014 |
8ZRFXE..ZWE183 NO.2 |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0T130 |
8ZRFXE..ZWE183 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96137-41701 |
8ZRFXE..ZWE183 (J),NO.1 |
1 | ||
| 90466-C0005 |
8ZRFXE..ZWE183 NO.2 |
1 | ||
| 90466-C0043 |
8ZRFXE..ZWE183 (L),NO.1 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96137-41701 |
8ZRFXE..ZWE183 (J),NO.1 |
1 | ||
| 90466-C0005 |
8ZRFXE..ZWE183 NO.2 |
1 | ||
| 90466-C0043 |
8ZRFXE..ZWE183 (L),NO.1 |
1 | ||
| 16361 - FAN | ||||
| 16361-0T200 |
8ZRFXE..ZWE183 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0T210 |
8ZRFXE..ZWE183 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0T300 |
8ZRFXE..ZWE183 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0T310 |
8ZRFXE..ZWE183 |
1 | ||
| 16363J - BOLT(FOR COOLING FAN MOTOR) | ||||
| 90099-04119 |
8ZRFXE..ZWE183 |
6 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0T270 |
8ZRFXE..ZWE183 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0H290 |
8ZRFXE..ZWE183 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-0T270 |
8ZRFXE..ZWE183 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 164A2-0T010 |
8ZRFXE..ZWE183 |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-0T081 |
8ZRFXE..ZWE183 (L) |
1 | ||
| 16475-28140 |
8ZRFXE..ZWE183 (J) |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T080 |
8ZRFXE..ZWE183 |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T080 |
8ZRFXE..ZWE183 |
2 | ||
| 16533D - SUPPORT, RADIATOR, RH | ||||
| 16533-0T120 |
8ZRFXE..ZWE183 |
1 | ||
| 16534A - SUPPORT, RADIATOR, LH | ||||
| 16534-0T030 |
8ZRFXE..ZWE183 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0H090 |
8ZRFXE..ZWE183 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T190 |
8ZRFXE..ZWE183 NO.4 |
1 | ||
| 16561-0T180 |
8ZRFXE..ZWE183 NO.3 |
1 | ||
| 16561-0T170 |
8ZRFXE..ZWE183 NO.2 |
1 | ||
| 16561-0T160 |
8ZRFXE..ZWE183 NO.1 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T190 |
8ZRFXE..ZWE183 NO.4 |
1 | ||
| 16561-0T180 |
8ZRFXE..ZWE183 NO.3 |
1 | ||
| 16561-0T170 |
8ZRFXE..ZWE183 NO.2 |
1 | ||
| 16561-0T160 |
8ZRFXE..ZWE183 NO.1 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T190 |
8ZRFXE..ZWE183 NO.4 |
1 | ||
| 16561-0T180 |
8ZRFXE..ZWE183 NO.3 |
1 | ||
| 16561-0T170 |
8ZRFXE..ZWE183 NO.2 |
1 | ||
| 16561-0T160 |
8ZRFXE..ZWE183 NO.1 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0T190 |
8ZRFXE..ZWE183 NO.4 |
1 | ||
| 16561-0T180 |
8ZRFXE..ZWE183 NO.3 |
1 | ||
| 16561-0T170 |
8ZRFXE..ZWE183 NO.2 |
1 | ||
| 16561-0T160 |
8ZRFXE..ZWE183 NO.1 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T250 |
8ZRFXE..ZWE183 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-C0008 |
8ZRFXE..ZWE183 NO.1 |
1 | ||
| 90466-C0009 |
8ZRFXE..ZWE183 NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-C0008 |
8ZRFXE..ZWE183 NO.1 |
1 | ||
| 90466-C0009 |
8ZRFXE..ZWE183 NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T210 |
8ZRFXE..ZWE183 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-C0009 |
8ZRFXE..ZWE183 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-C0009 |
8ZRFXE..ZWE183 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T100 |
8ZRFXE..ZWE183 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-C0008 |
8ZRFXE..ZWE183 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-C0008 |
8ZRFXE..ZWE183 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-0T110 |
8ZRFXE..ZWE183 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0T300 |
8ZRFXE..ZWE183 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0T100 |
8ZRFXE..ZWE183 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-C0107 | ||||
| 90119-C0403 | ||||
| 90480-18010 | ||||
| 90480-C0010 | ||||
| 91671-A0816 | ||||
| 91671-A0818 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 5304 | ||||

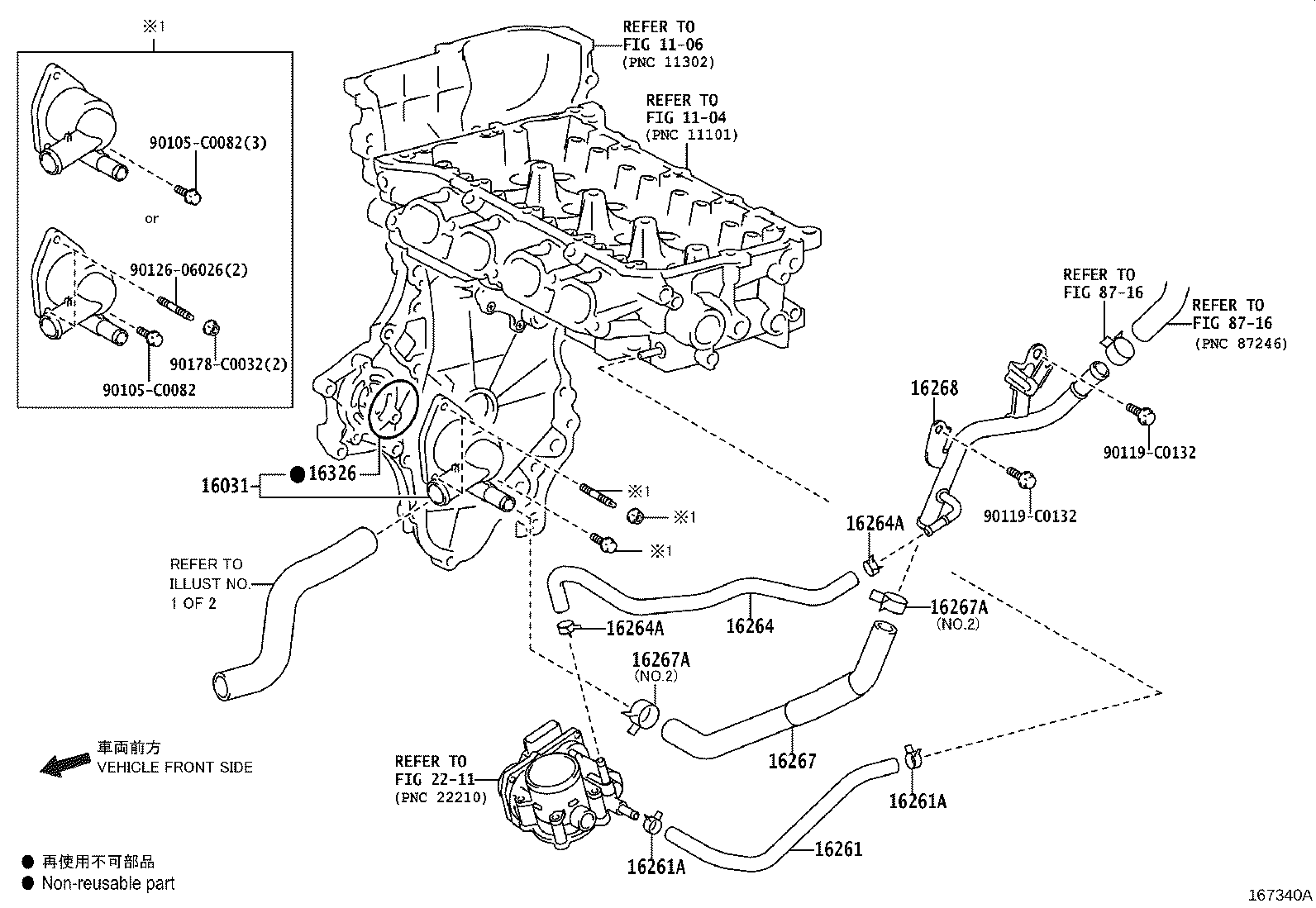

ILLUST NO. 2 OF 2(1904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-0T010 |
8ZRFXE..ZWE183 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0T230 |
8ZRFXE..ZWE183 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0026 |
8ZRFXE..ZWE183 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0026 |
8ZRFXE..ZWE183 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0T180 |
8ZRFXE..ZWE183 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0026 |
8ZRFXE..ZWE183 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0026 |
8ZRFXE..ZWE183 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0T150 |
8ZRFXE..ZWE183 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0005 |
8ZRFXE..ZWE183 NO.1 |
1 | ||
| 90466-C0014 |
8ZRFXE..ZWE183 NO.2 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0005 |
8ZRFXE..ZWE183 NO.1 |
1 | ||
| 90466-C0014 |
8ZRFXE..ZWE183 NO.2 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0T010 |
8ZRFXE..ZWE183 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37020 |
8ZRFXE..ZWE183 |
1 | ||
| Common parts | ||||
| 90105-C0082 | ||||
| 90119-C0132 | ||||
| 90126-06026 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1106 | ||||
| 2211 | ||||
| 8716 | ||||
