ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

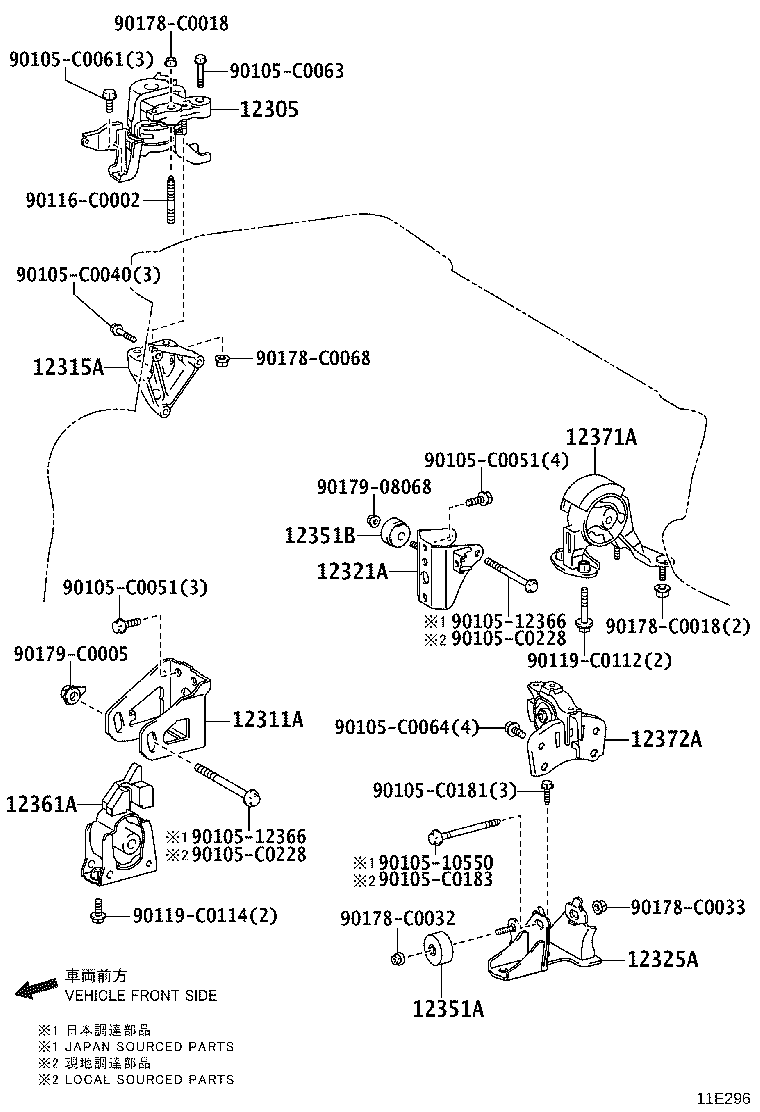

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T400 |
8ZRFXE..ZWE183 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T520 |
8ZRFXE..ZWE183 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0T010 |
8ZRFXE..ZWE183 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T600 |
8ZRFXE..ZWE183 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T480 |
8ZRFXE..ZWE183 |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-0T310 |
8ZRFXE..ZWE183 |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-0T300 |
8ZRFXE..ZWE183 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T411 |
8ZRFXE..ZWE183 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T480 |
8ZRFXE..ZWE183 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T560 |
8ZRFXE..ZWE183 |
1 | ||
| Common parts | ||||
| 90105-10550 | ||||
| 90105-12366 | ||||
| 90105-C0040 | ||||
| 90105-C0051 | ||||
| 90105-C0061 | ||||
| 90105-C0063 | ||||
| 90105-C0064 | ||||
| 90105-C0181 | ||||
| 90105-C0183 | ||||
| 90105-C0228 | ||||
| 90116-C0002 | ||||
| 90119-C0112 | ||||
| 90119-C0114 | ||||
| 90178-C0018 | ||||
| 90178-C0032 | ||||
| 90178-C0033 | ||||
| 90178-C0068 | ||||
| 90179-08068 | ||||
| 90179-C0005 | ||||
