ZWE183L-CEXEBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

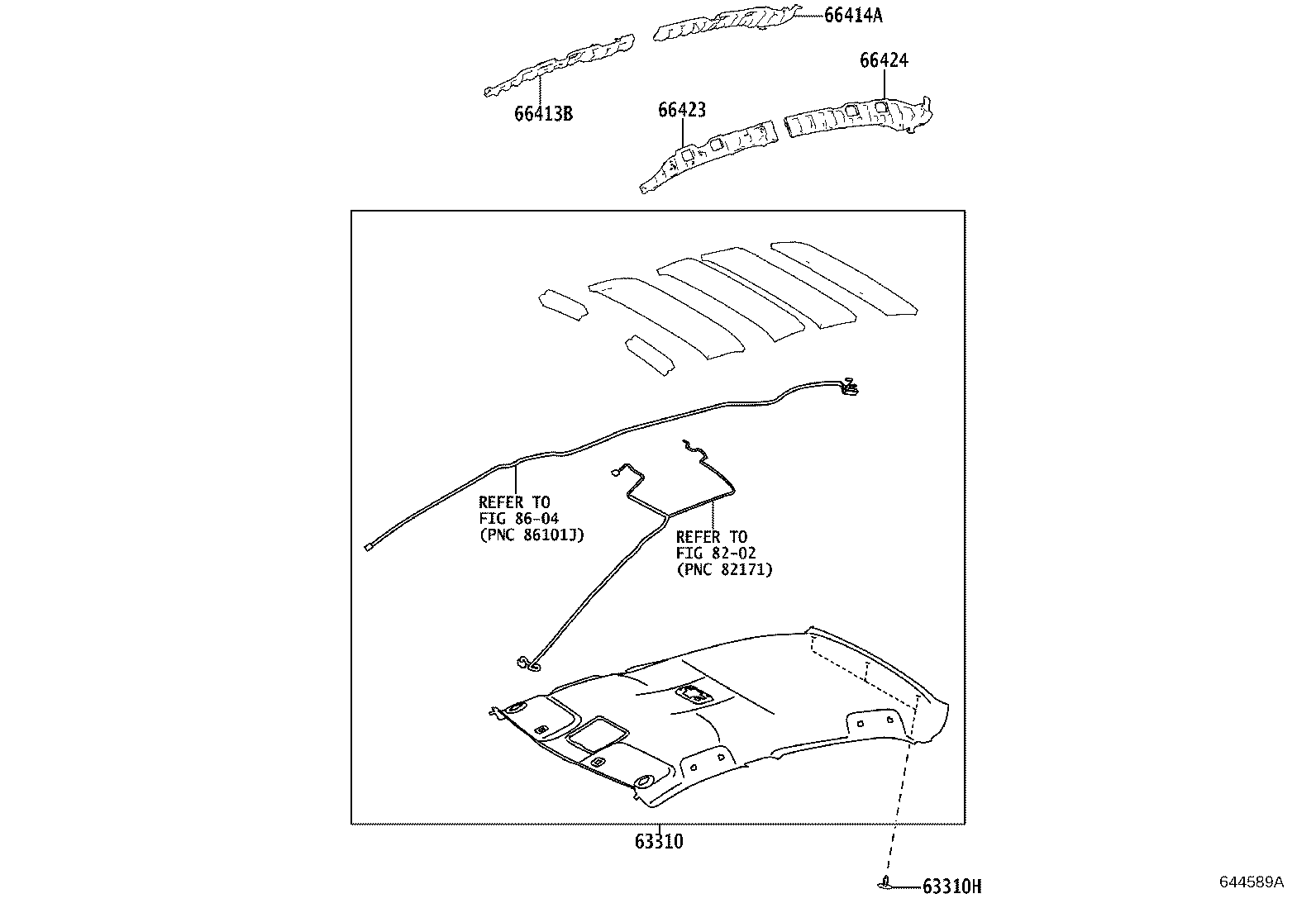

Click highlighted areas on diagram

diagram 63310 63310H 66413B 66414A 66423 66424 8202 8604
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-02R60B0

ZWE183..E

LT.GRAY,TRIM2#,4#

 1
63310-02R60B0

ZWE183..G,V

MOON ROOF-WITHOUT,LT.GRAY,TRIM2#,4#

 1
63310-02R70B0

ZWE183..G,V

LT.GRAY,TRIM2#,4#

 1
63310-02R80B0

ZWE183..G,V

AUDIO-AVN(ACCESSORY) & 4SPEAKER,LT.GRAY,TRIM2#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-C0016B0

ZWE183

GRAY,TRIM2#,4#

 3
66413B - SPACER, SIDE RAIL, FRONT RH
66413-02240

ZWE183..E

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-02260

ZWE183..E

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-02230

ZWE183..E

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-02260

ZWE183..E

 1
Linked diagrams
8202
8604

(1904- )

Click highlighted areas on diagram

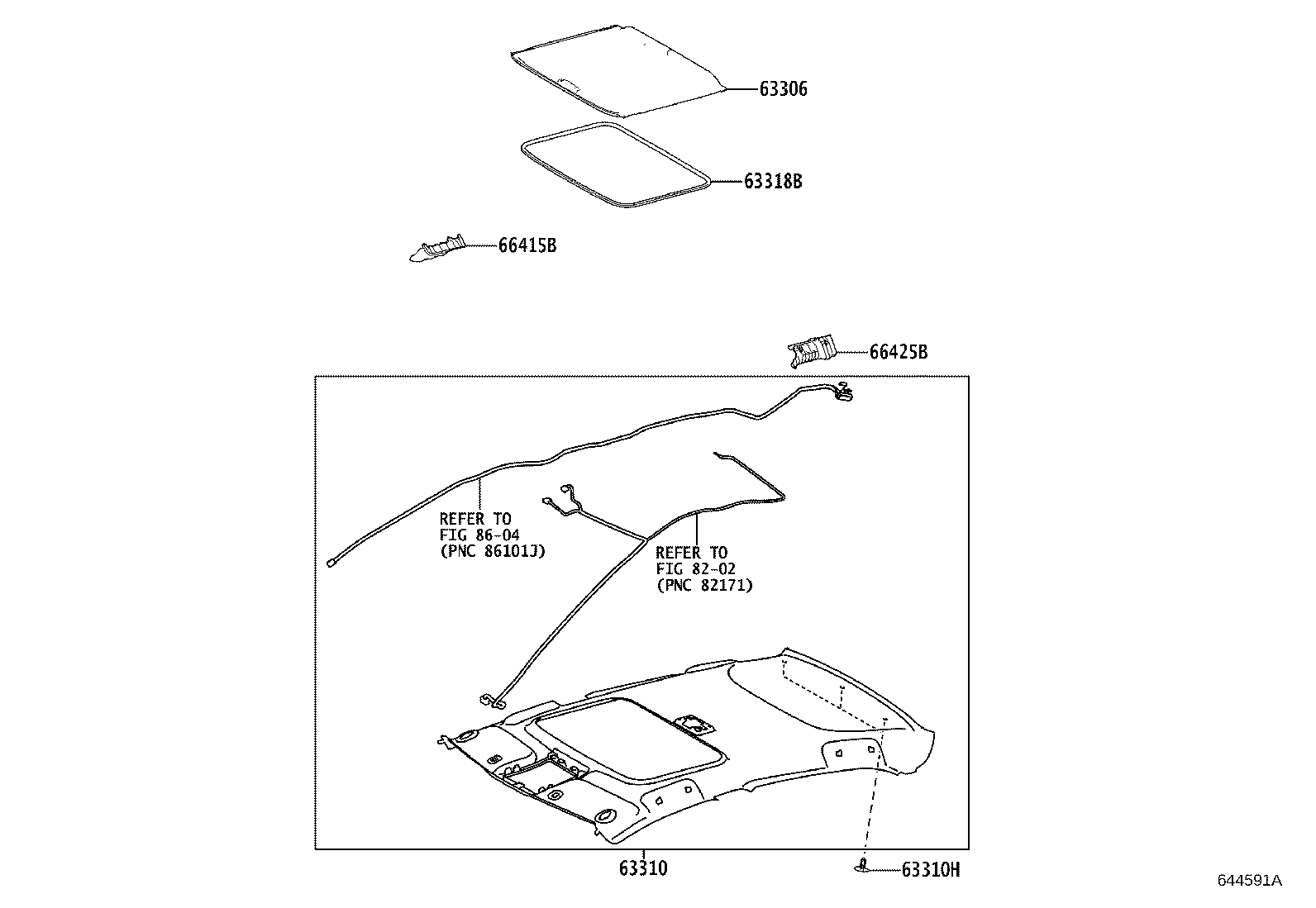

W(MOON ROOF)

diagram 63306 63310 63310H 63318B 66415B 66425B 8202 8604
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-02140B0

ZWE183..G,V

LT.GRAY,TRIM2#,4#

 1
63310 - HEADLINING ASSY, ROOF
63310-02R60B0

ZWE183..E

LT.GRAY,TRIM2#,4#

 1
63310-02R60B0

ZWE183..G,V

MOON ROOF-WITHOUT,LT.GRAY,TRIM2#,4#

 1
63310-02R70B0

ZWE183..G,V

LT.GRAY,TRIM2#,4#

 1
63310-02R80B0

ZWE183..G,V

AUDIO-AVN(ACCESSORY) & 4SPEAKER,LT.GRAY,TRIM2#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-C0016B0

ZWE183

GRAY,TRIM2#,4#

 3
63318B - MOULDING, ROOF HEADLINING SET, NO.1
63318-02140B0

ZWE183..G,V

LT.GRAY,TRIM2#,4#

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-02150

ZWE183..G,V

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-02160

ZWE183..G,V

 1
Linked diagrams
8202
8604
