ZWE183L-CEXEBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

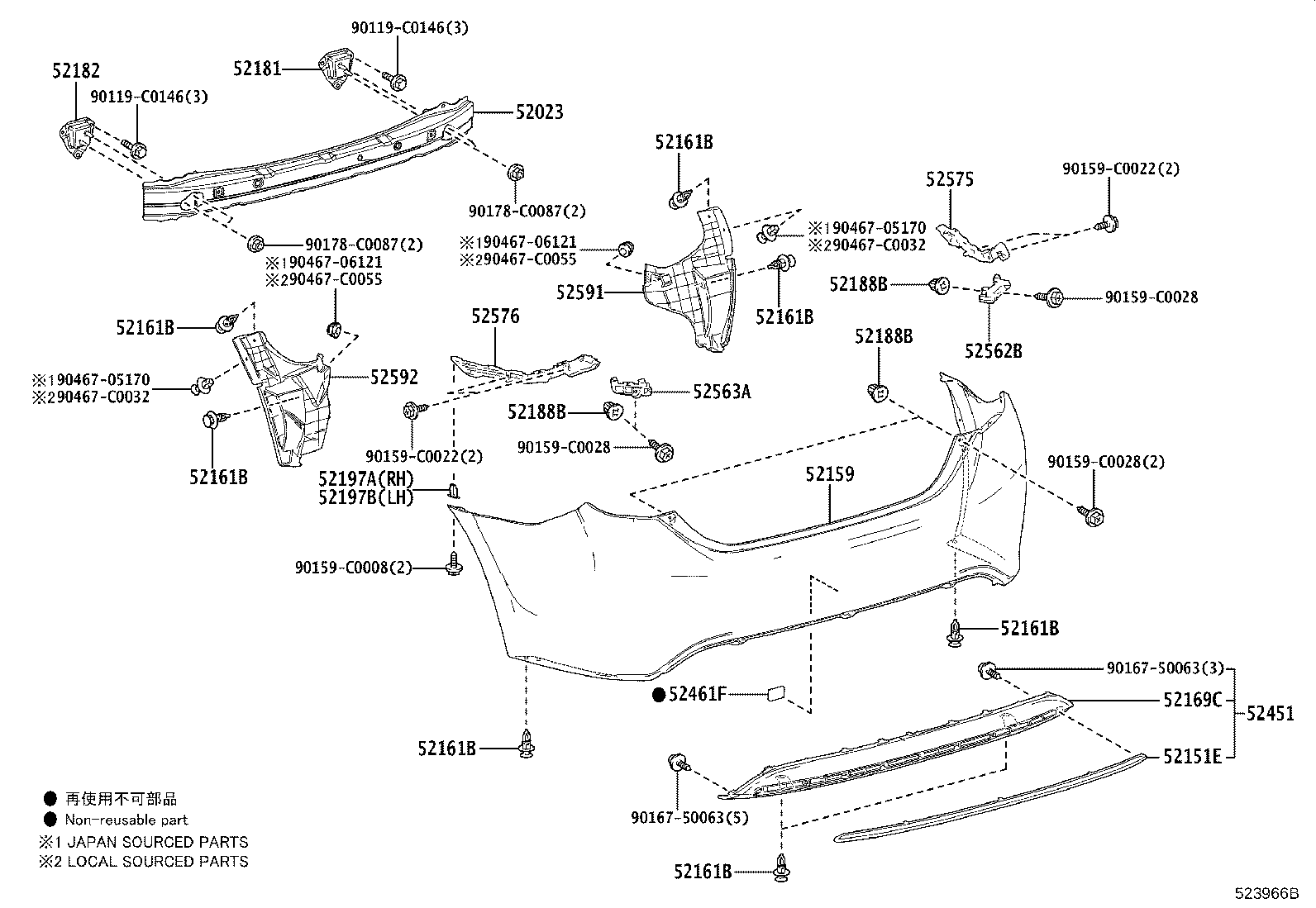

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-02220 |
ZWE183 |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52151-02070 |
ZWE183 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0Z918 |
ZWE183 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE183 (J) |
8 | ||
| 52161-02040 |
ZWE183 (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE183 (J) |
8 | ||
| 52161-02040 |
ZWE183 (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE183 (J) |
8 | ||
| 52161-02040 |
ZWE183 (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE183 (J) |
8 | ||
| 52161-02040 |
ZWE183 (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE183 (J) |
8 | ||
| 52161-02040 |
ZWE183 (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE183 (J) |
8 | ||
| 52161-02040 |
ZWE183 (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWE183 (J) |
8 | ||
| 52161-02040 |
ZWE183 (L) |
8 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-02150 |
ZWE183 |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-02230 |
ZWE183 |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-02200 |
ZWE183 |
1 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-06040 |
ZWE183 |
4 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-06040 |
ZWE183 |
4 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-06040 |
ZWE183 |
4 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-06010 |
ZWE183 |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-06010 |
ZWE183 |
1 | ||
| 52451 - GUARD, REAR BUMPER | ||||
| 52105-02010 |
ZWE183 |
1 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52462-02230 |
ZWE183 |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-02280 |
ZWE183 |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-02280 |
ZWE183 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-02170 |
ZWE183 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-02170 |
ZWE183 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-02351 |
ZWE183 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-02331 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0146 | ||||
| 90159-C0008 | ||||
| 90159-C0022 | ||||
| 90159-C0028 | ||||
| 90167-50063 | ||||
| 90178-C0087 | ||||
| 90467-05170 | ||||
| 90467-06121 | ||||
| 90467-C0032 | ||||
| 90467-C0055 | ||||
