Toyota Levin ZWE183 TRANSAXLE ASSY(HV OR EV OR FCV)

Part #	Description	Period	Qty
30900 - TRANSAXLE ASSY, HYBRID VEHICLE
30900-02030	ZWE183	04/2019 - 12/2999	1
30900A - BOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
90119-C0139	ZWE183 *10-1.25PX45-30	04/2019 - 12/2999	7
30900H - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & C
90341-18060	ZWE183	04/2019 - 12/2999	1
30900J - GASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)
90430-18008	ZWE183	04/2019 - 12/2999	1
30900N - PLUG, BREATHER(FOR TRANSAXLE)
90930-03246	ZWE183	04/2019 - 12/2999	1
30900P - PLUG, DRAIN(HV)
90341-18016	ZWE183	04/2019 - 12/2999	1
30900Q - PLUG, FILLER(HV)
90341-18016	ZWE183	04/2019 - 12/2999	1
30900R - GASKET, DRAIN PLUG(HV)
90430-18008	ZWE183	04/2019 - 12/2999	1
30900S - GASKET, FILLER PLUG(HV)
90430-18008	ZWE183	04/2019 - 12/2999	1
31270 - DAMPER ASSY, TRANSMISSION INPUT
31270-47060	ZWE183	04/2019 - 12/2999	1
35513 - BOLT, SHIFT CONTROL ACTUATOR
35513-47010	ZWE183	04/2019 - 12/2999	3
35514 - CAP, SHIFT CONTROL ACTUATOR BOLT
35514-47010	ZWE183	04/2019 - 12/2999	3
35563 - SEAL, SHIFT CONTROL ACTUATOR
35563-02010	ZWE183	04/2019 - 12/2999	1
35580 - ACTUATOR ASSY, SHIFT CONTROL
35580-47020	ZWE183	04/2019 - 12/2999	1
35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT)
90311-C0039	ZWE183	04/2019 - 12/2999	1
G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1
G1020-02020	ZWE183	04/2019 - 12/2999	1
G1143 - BRACKET, MOTOR CABLE
G1143-02010	ZWE183	04/2019 - 12/2999	1
G1143F - BRACKET, MOTOR CABLE, NO.2
G1143-02020	ZWE183	04/2019 - 12/2999	1
G1148 - CABLE, MOTOR
G1148-02020	ZWE183	04/2019 - 12/2999	1
G114D - CAP, MOTOR CABLE TERMINAL
G114D-02020	ZWE183	04/2019 - 12/2999	2
G114D - CAP, MOTOR CABLE TERMINAL
G114D-02020	ZWE183	04/2019 - 12/2999	2
Common parts
90105-C0106
90105-C0134
90105-C0302
90119-C0100
90119-C0107
90178-06023
91551-80610
91551-80820
91671-80816
91673-80616

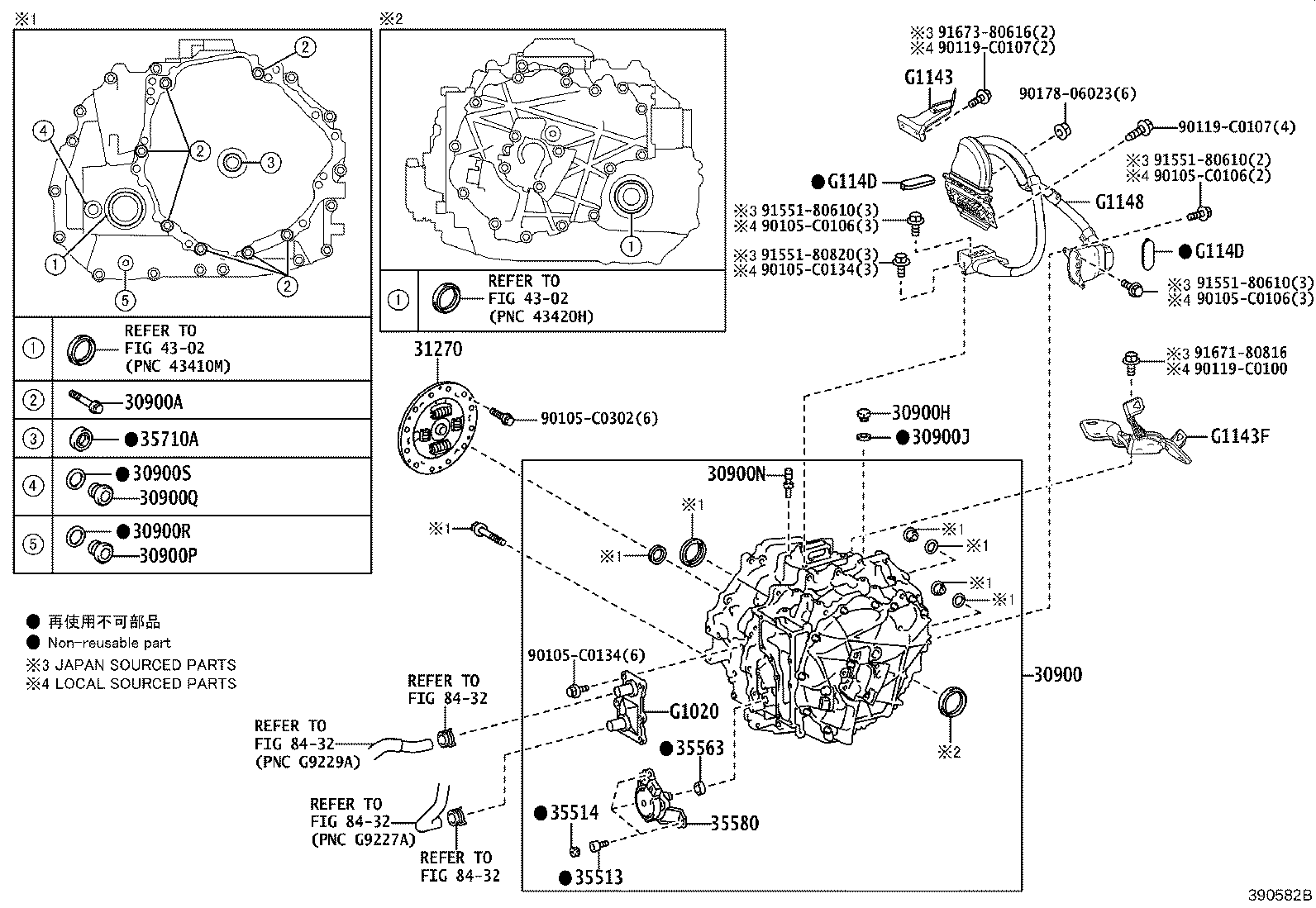

Linked diagrams
4302
8432

ZWE183L-CEXEBC (2019)

(1904- )
