ZWE211L-CEXNBC (2019)

Toyota Levin/Hybrid

Production Jun 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1906- )CVT

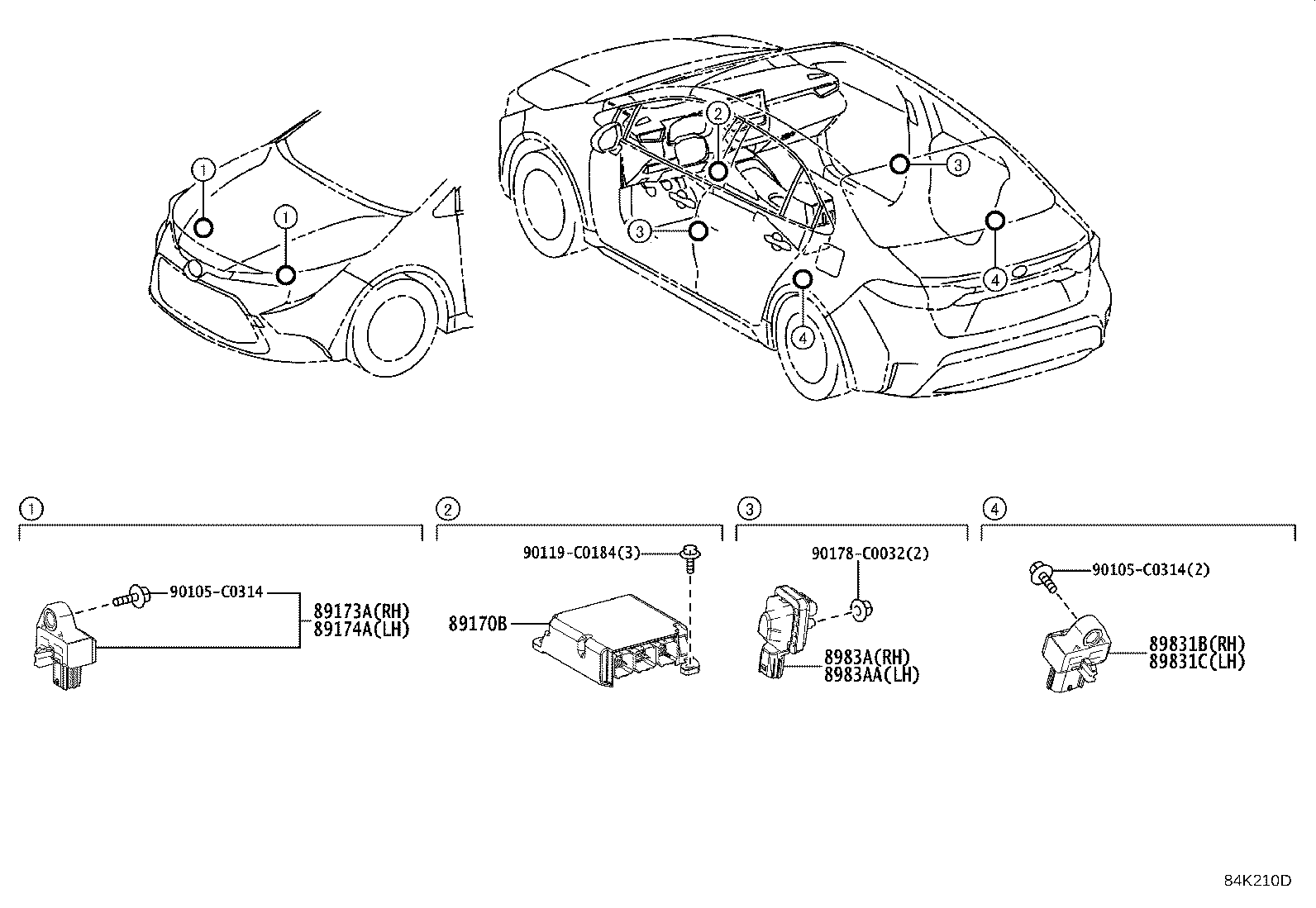

Click highlighted areas on diagram

diagram 89170B 89173A 89174A 89831B 89831C 8983A 8983AA 90105C0314 90105C0314 90119C0184 90178C0032
Part # Description Qty Price
89170B - SENSOR ASSY, AIR BAG(W/COMPUTER)
89170-02R90

ZWE211

 1
89170-02R90

ZWE211

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION)

 1
89170-02T90

ZWE211

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09C80

MZEA11,NRE210,ZWE211..CVT

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09C80

MZEA11,NRE210,ZWE211..CVT

 1
89831B - SENSOR, SIDE AIR BAG, RH, NO.2
89831-F4060

MZEA11,NRE210,ZWE211..CVT

 1
89831C - SENSOR, SIDE AIR BAG, LH, NO.2
89831-F4060

MZEA11,NRE210,ZWE211..CVT

 1
8983A - SENSOR, SIDE AIR BAG PRESSURE, RH
8983A-02031

MZEA11,NRE210,ZWE211..CVT

 1
8983A-02030

NRE210,ZWE211

 1
8983AA - SENSOR, SIDE AIR BAG PRESSURE, LH
8983A-02031

MZEA11,NRE210,ZWE211..CVT

 1
8983A-02030

NRE210,ZWE211

 1
Common parts
90105-C0314
90119-C0184
90178-C0032
