ZWE211L-CEXNBC (2019)
Toyota Levin/Hybrid

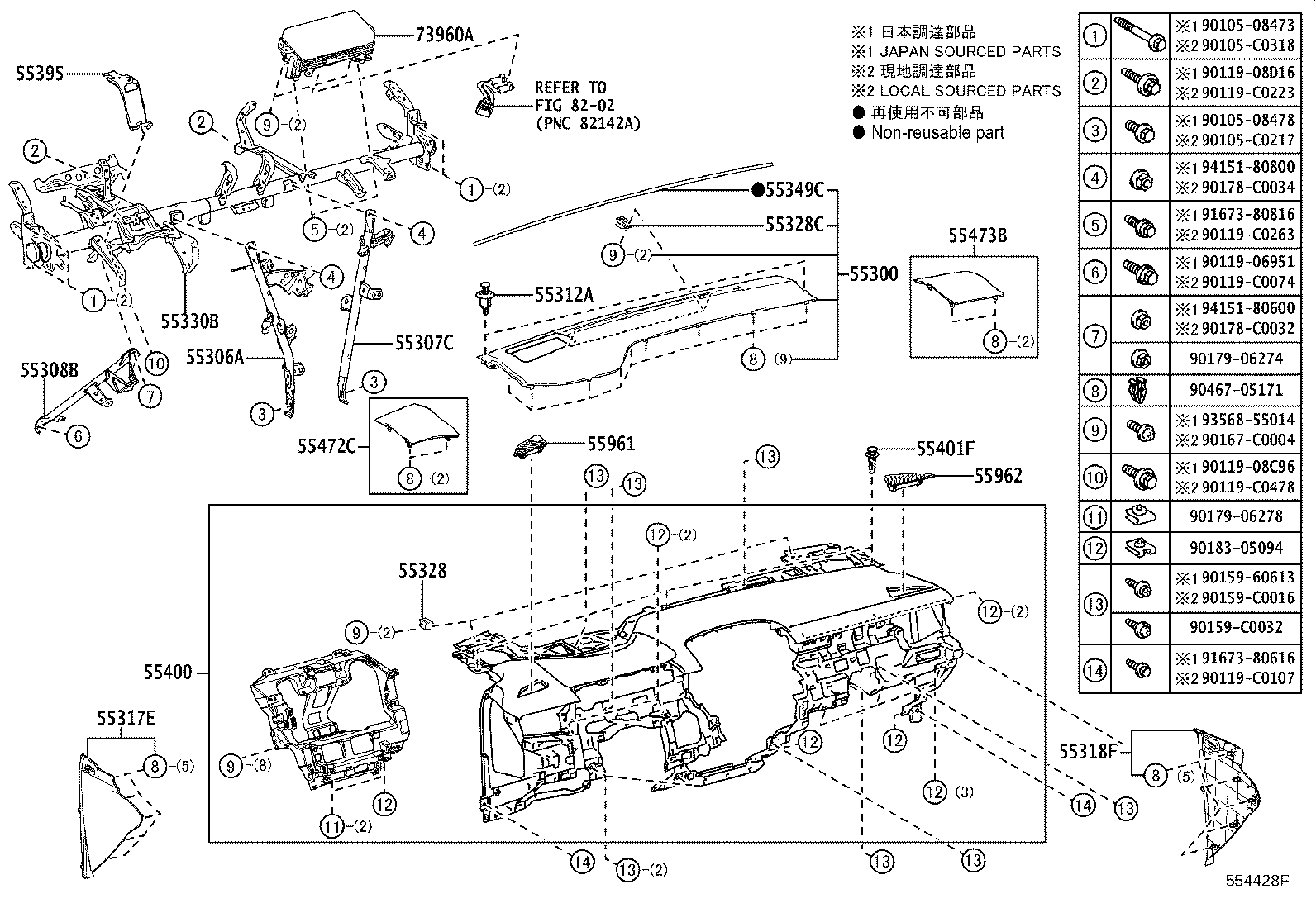

ILLUST NO. 1 OF 2(1906- )CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-02210C0 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55300-02200C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02770 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02610 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-02260 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-C0051 |
MZEA11,NRE210,ZWE211..CVT (L) |
2 | ||
| 90467-07217 |
MZEA11,NRE210,ZWE211..CVT (J) |
2 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-02780C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-02410C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E100 |
MZEA11,NRE210,ZWE211..CVT |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-02800 |
MZEA11,NRE210,ZWE211..CVT |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02D60 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE |
1 | ||
| 55330-02B80 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55330-02D60 |
NRE210,ZWE211..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER |
1 | ||
| 55330-02B80 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02360 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-02130 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-02500C1 |
MZEA11,NRE210,ZWE211..CVT..(E,N) SOFT BLACK,TRIM1#,2# |
1 | ||
| 55400-02560C1 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55400-02500C1 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55400-02560C1 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02040 |
MZEA11,NRE210,ZWE211..CVT (L) |
3 | ||
| 52161-16010 |
MZEA11,NRE210,ZWE211..CVT (J) |
3 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-02180C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-02160C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02280C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02240C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02460 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-C0217 | ||||
| 90105-C0318 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90119-C0074 | ||||
| 90119-C0107 | ||||
| 90119-C0223 | ||||
| 90119-C0263 | ||||
| 90119-C0478 | ||||
| 90159-60613 | ||||
| 90159-C0016 | ||||
| 90159-C0032 | ||||
| 90167-C0004 | ||||
| 90178-C0032 | ||||
| 90178-C0034 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

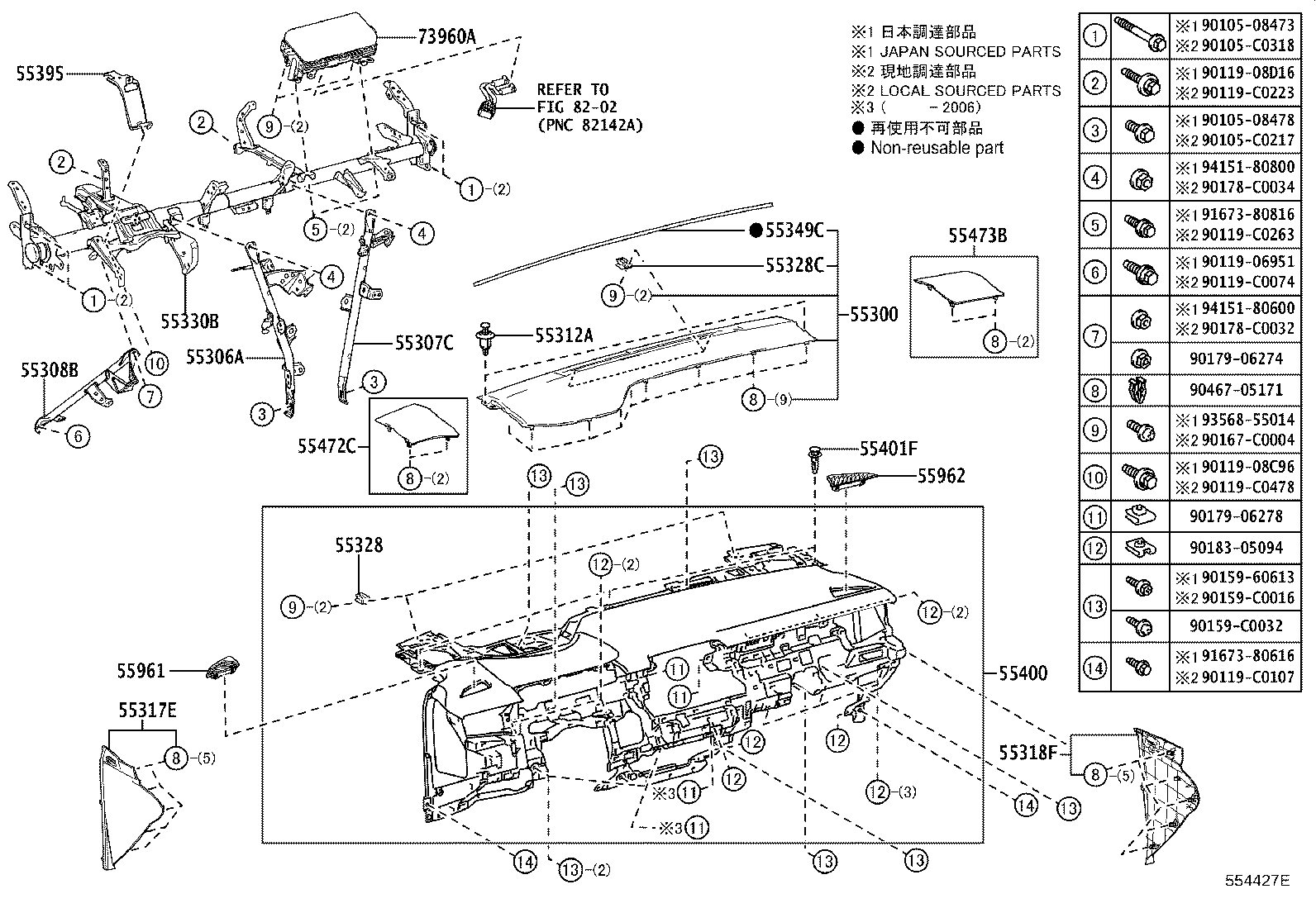

ILLUST NO. 1 OF 2(1906- )CVT..E
W(LARGE DISPLAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-02210C0 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55300-02200C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02770 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02610 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-02260 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-C0051 |
MZEA11,NRE210,ZWE211..CVT (L) |
2 | ||
| 90467-07217 |
MZEA11,NRE210,ZWE211..CVT (J) |
2 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-02780C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-02410C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-0E100 |
MZEA11,NRE210,ZWE211..CVT |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-02800 |
MZEA11,NRE210,ZWE211..CVT |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02D60 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE |
1 | ||
| 55330-02B80 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55330-02D60 |
NRE210,ZWE211..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER |
1 | ||
| 55330-02B80 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02360 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-02130 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-02500C1 |
MZEA11,NRE210,ZWE211..CVT..(E,N) SOFT BLACK,TRIM1#,2# |
1 | ||
| 55400-02560C1 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55400-02500C1 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55400-02560C1 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SOFT BLACK,TRIM1#,2# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02040 |
MZEA11,NRE210,ZWE211..CVT (L) |
3 | ||
| 52161-16010 |
MZEA11,NRE210,ZWE211..CVT (J) |
3 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-02180C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-02160C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02280C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02240C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02460 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-C0217 | ||||
| 90105-C0318 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90119-C0074 | ||||
| 90119-C0107 | ||||
| 90119-C0223 | ||||
| 90119-C0263 | ||||
| 90119-C0478 | ||||
| 90159-60613 | ||||
| 90159-C0016 | ||||
| 90159-C0032 | ||||
| 90167-C0004 | ||||
| 90178-C0032 | ||||
| 90178-C0034 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

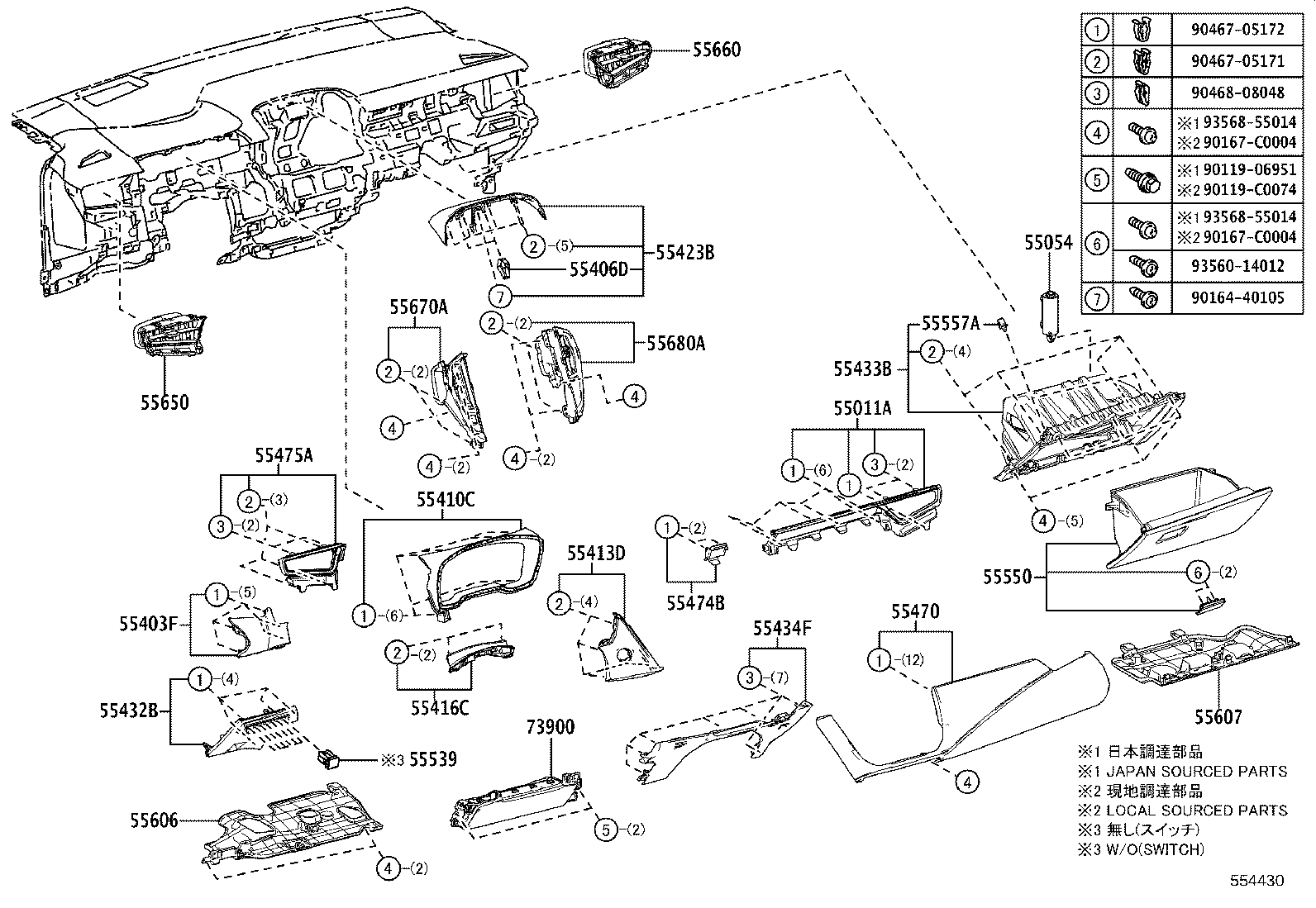

ILLUST NO. 2 OF 2(1906- )CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02510C1 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55011-02460C1 |
NRE210,ZWE211..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55011-02510C1 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55011-02460C1 |
MZEA11,NRE210,ZWE211..CVT..(E,G) SILVER,TRIM1#,2# |
1 | ||
| 55011-02460C1 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55011-02460C1 |
NRE210,ZWE211..E SPORT PACKAGE,SILVER,TRIM1#,2# |
1 | ||
| 55011-02470C1 |
MZEA11,NRE210,ZWE211..CVT..N SILVER,TRIM1#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02740C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM2# |
1 | ||
| 55403-02740B0 |
MZEA11,NRE210,ZWE211..CVT COOL GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02G40B0 |
NRE210,ZWE211..E SPORT PACKAGE,SILVER,TRIM1#,2# |
1 | ||
| 55405-02G40B0 |
NRE210,ZWE211..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55405-02G40B0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55405-02G40B0 |
MZEA11,NRE210,ZWE211..CVT..(E,G) SILVER,TRIM1#,2# |
1 | ||
| 55405-02B70 |
MZEA11,NRE210,ZWE211..CVT..N |
1 | ||
| 55405-02860 |
NRE210,ZWE211..N |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02A01C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55410-02A00 |
NRE210,ZWE211 |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-02810C0 |
ZWE211;MZEA11,NRE210..CVT..(E,G) BLACK,TRIM2# |
1 | ||
| 55413-02810B0 |
ZWE211;MZEA11,NRE210..CVT..(E,G) COOL GRAY,TRIM1# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02580 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-02880 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55422-02880 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-02A60C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02640C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02700C0 |
ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55434-02670C0 |
ZWE211..E TECH PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55434-02700C0 |
ZWE211..E TECH PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55434-02670C0 |
ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02860C0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,BLACK,TRIM2# |
1 | ||
| 55470-02830C0 |
MZEA11,NRE210,ZWE211..CVT..(E,N) BLACK,TRIM2# |
1 | ||
| 55470-02860C0 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,BLACK,TRIM2# |
1 | ||
| 55470-02860B0 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,COOL GRAY,TRIM1# |
1 | ||
| 55470-02830B0 |
MZEA11,NRE210,ZWE211..CVT..(E,N) COOL GRAY,TRIM1# |
1 | ||
| 55470-02830B0 |
MZEA11,NRE210,ZWE211..CVT..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,COOL GRAY,TRIM1# |
1 | ||
| 55470-02860B0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,COOL GRAY,TRIM1# |
1 | ||
| 55470-02830C0 |
MZEA11,NRE210,ZWE211..CVT..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,BLACK,TRIM2# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-02290B0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55474-02250B0 |
MZEA11,NRE210,ZWE211..CVT..(E,G) SILVER,TRIM1#,2# |
1 | ||
| 55474-02250B0 |
NRE210,ZWE211..E SPORT PACKAGE,SILVER,TRIM1#,2# |
1 | ||
| 55474-02260B0 |
MZEA11,NRE210,ZWE211..CVT..N SILVER,TRIM1#,2# |
1 | ||
| 55474-02250B0 |
NRE210,ZWE211..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55474-02250B0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55474-02290B0 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02200C1 |
NRE210,ZWE211..E SPORT PACKAGE,SILVER,TRIM1#,2# |
1 | ||
| 55475-02200C1 |
MZEA11,NRE210,ZWE211..CVT SILVER,TRIM1#,2# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-12010C0 |
MZEA11,NRE210,ZWE211..CVT..N BLACK,TRIM1#,2#,(J) |
1 | ||
| 55524-02040C0 |
MZEA11,NRE210,ZWE211..CVT..N BLACK,TRIM1#,2#,(L) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-06120 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55539-06120 |
ZWE211..N ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02620C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
MZEA11,NRE210,ZWE211..CVT |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02390 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02400 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02A40 |
MZEA11,NRE210,ZWE211..CVT..N |
1 | ||
| 55650-02A50 |
NRE210,ZWE211..E SPORT PACKAGE |
1 | ||
| 55650-02A50 |
MZEA11,NRE210,ZWE211..CVT..(E,G) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02620 |
NRE210,ZWE211..E SPORT PACKAGE |
1 | ||
| 55660-02610 |
MZEA11,NRE210,ZWE211..CVT..N |
1 | ||
| 55660-02620 |
MZEA11,NRE210,ZWE211..CVT..(E,G) |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02A40 |
NRE210,ZWE211..E SPORT PACKAGE |
1 | ||
| 55670-02A90 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER |
1 | ||
| 55670-02A40 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE |
1 | ||
| 55670-02A90 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE |
1 | ||
| 55670-02A30 |
MZEA11,NRE210,ZWE211..CVT..N |
1 | ||
| 55670-02A40 |
MZEA11,NRE210,ZWE211..CVT..(E,G) |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02290C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-C0074 | ||||
| 90167-C0004 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(1906- )CVT..E
W(LARGE DISPLAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02510C1 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55011-02460C1 |
NRE210,ZWE211..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55011-02510C1 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55011-02460C1 |
MZEA11,NRE210,ZWE211..CVT..(E,G) SILVER,TRIM1#,2# |
1 | ||
| 55011-02460C1 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55011-02460C1 |
NRE210,ZWE211..E SPORT PACKAGE,SILVER,TRIM1#,2# |
1 | ||
| 55011-02470C1 |
MZEA11,NRE210,ZWE211..CVT..N SILVER,TRIM1#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02740C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM2# |
1 | ||
| 55403-02740B0 |
MZEA11,NRE210,ZWE211..CVT COOL GRAY,TRIM1# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
NRE210,ZWE211..E TECH PACKAGE,MELLOW WHITE |
2 | ||
| 90467-13082A0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,MELLOW WHITE |
2 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02A01C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55410-02A00 |
NRE210,ZWE211 |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-02810C0 |
ZWE211;MZEA11,NRE210..CVT..(E,G) BLACK,TRIM2# |
1 | ||
| 55413-02810B0 |
ZWE211;MZEA11,NRE210..CVT..(E,G) COOL GRAY,TRIM1# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02580 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-02200 |
NRE210,ZWE211..E TECH PACKAGE |
1 | ||
| 55423-02200 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-02A60C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02640C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02700C0 |
ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55434-02670C0 |
ZWE211..E TECH PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55434-02700C0 |
ZWE211..E TECH PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55434-02670C0 |
ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02860C0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,BLACK,TRIM2# |
1 | ||
| 55470-02830C0 |
MZEA11,NRE210,ZWE211..CVT..(E,N) BLACK,TRIM2# |
1 | ||
| 55470-02860C0 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,BLACK,TRIM2# |
1 | ||
| 55470-02860B0 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,COOL GRAY,TRIM1# |
1 | ||
| 55470-02830B0 |
MZEA11,NRE210,ZWE211..CVT..(E,N) COOL GRAY,TRIM1# |
1 | ||
| 55470-02830B0 |
MZEA11,NRE210,ZWE211..CVT..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,COOL GRAY,TRIM1# |
1 | ||
| 55470-02860B0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,COOL GRAY,TRIM1# |
1 | ||
| 55470-02830C0 |
MZEA11,NRE210,ZWE211..CVT..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,BLACK,TRIM2# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-02290B0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55474-02250B0 |
MZEA11,NRE210,ZWE211..CVT..(E,G) SILVER,TRIM1#,2# |
1 | ||
| 55474-02250B0 |
NRE210,ZWE211..E SPORT PACKAGE,SILVER,TRIM1#,2# |
1 | ||
| 55474-02260B0 |
MZEA11,NRE210,ZWE211..CVT..N SILVER,TRIM1#,2# |
1 | ||
| 55474-02250B0 |
NRE210,ZWE211..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55474-02250B0 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55474-02290B0 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE&AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02200C1 |
NRE210,ZWE211..E SPORT PACKAGE,SILVER,TRIM1#,2# |
1 | ||
| 55475-02200C1 |
MZEA11,NRE210,ZWE211..CVT SILVER,TRIM1#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-06120 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55539-06120 |
ZWE211..N ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02620C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
MZEA11,NRE210,ZWE211..CVT |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02390 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02400 |
MZEA11,NRE210,ZWE211..CVT |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02A40 |
MZEA11,NRE210,ZWE211..CVT..N |
1 | ||
| 55650-02A50 |
NRE210,ZWE211..E SPORT PACKAGE |
1 | ||
| 55650-02A50 |
MZEA11,NRE210,ZWE211..CVT..(E,G) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02620 |
NRE210,ZWE211..E SPORT PACKAGE |
1 | ||
| 55660-02610 |
MZEA11,NRE210,ZWE211..CVT..N |
1 | ||
| 55660-02620 |
MZEA11,NRE210,ZWE211..CVT..(E,G) |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02A40 |
NRE210,ZWE211..E SPORT PACKAGE |
1 | ||
| 55670-02A90 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER |
1 | ||
| 55670-02A40 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE |
1 | ||
| 55670-02A90 |
MZEA11,NRE210,ZWE211..CVT..E TECH PACKAGE |
1 | ||
| 55670-02A30 |
MZEA11,NRE210,ZWE211..CVT..N |
1 | ||
| 55670-02A40 |
MZEA11,NRE210,ZWE211..CVT..(E,G) |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-02260 |
NRE210,ZWE211..E TECH PACKAGE |
1 | ||
| 55680-02260 |
NRE210,ZWE211..E AUDIO(OVERSEAS MARKET)-AVN(12.1INCH) & 4SPEAKER |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02290C0 |
MZEA11,NRE210,ZWE211..CVT BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-C0074 | ||||
| 90164-40105 | ||||
| 90167-C0004 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
