ZWE211L-CEXNBC (2019)

Toyota Levin/Hybrid

Production Jun 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1906- )CVT

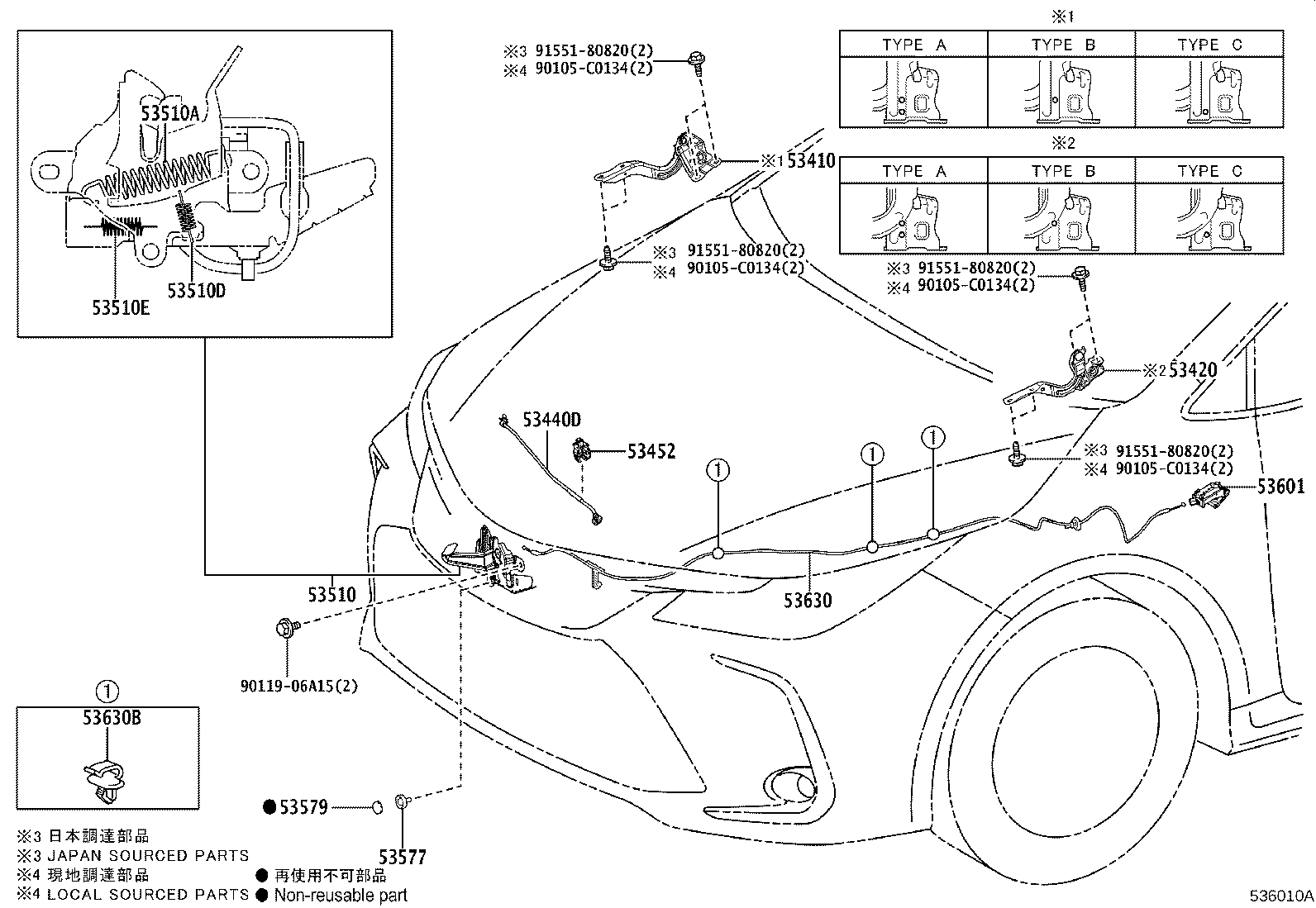

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452 53510 53510A 53510D 53510E 53577 53579 53601 53630 53630B 90105C0134 90105C0134 90105C0134 90105C0134 9011906A15 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-02740

MZEA11,NRE210,ZWE211..CVT

TYPE C:REFER ILLUST.

 1
53410-02720

MZEA11,NRE210,ZWE211..CVT

TYPE A:REFER ILLUST.

 1
53410-02730

MZEA11,NRE210,ZWE211..CVT

TYPE B:REFER ILLUST.

 1
53420 - HINGE ASSY, HOOD, LH
53420-02760

MZEA11,NRE210,ZWE211..CVT

TYPE A:REFER ILLUST.

 1
53420-02720

MZEA11,NRE210,ZWE211..CVT

TYPE B:REFER ILLUST.

 1
53420-02750

MZEA11,NRE210,ZWE211..CVT

TYPE C:REFER ILLUST.

 1
53440D - SUPPORT ASSY, HOOD
53440-02360

MZEA11,NRE210,ZWE211..CVT

 1
53452 - HOLDER, HOOD STAY
53452-15020

MZEA11,NRE210,ZWE211..CVT

 1
53510 - LOCK ASSY, HOOD
53510-02A90

MZEA11,ZWE211..CVT..E

TECH PACKAGE

 1
53510-02A90

ZWE211..E

SPORT PACKAGE

 1
53510-02A60

ZWE211..E,N;MZEA11..CVT..E

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

MZEA11,NRE210,ZWE211..CVT

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

MZEA11,NRE210,ZWE211..CVT

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-14085

MZEA11,NRE210,ZWE211..CVT

WD=1.4,CW=12

 1
53577 - BOLT, HOOD LOCK
53577-33010

NRE210,ZWE211

 1
53577-33010

MZEA11,NRE210,ZWE211..CVT

 1
53579 - CAP, HOOD LOCK NUT
53579-0E020

NRE210,ZWE211

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-0D060C1

NRE210,ZWE211

BLACK,TRIM1#,2#

 1
53601-0D061C1

MZEA11,NRE210,ZWE211..CVT

BLACK,TRIM1#,2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-02530

NRE210,ZWE211

 1
53630-02531

MZEA11,NRE210,ZWE211..CVT

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-C0008

MZEA11,NRE210,ZWE211..CVT

 3
Common parts
90105-C0134
90119-06A15
91551-80820
