ZWE211L-CEXNBC (2019)
Toyota Levin/Hybrid
Production
Jun 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1906- )ZWE211

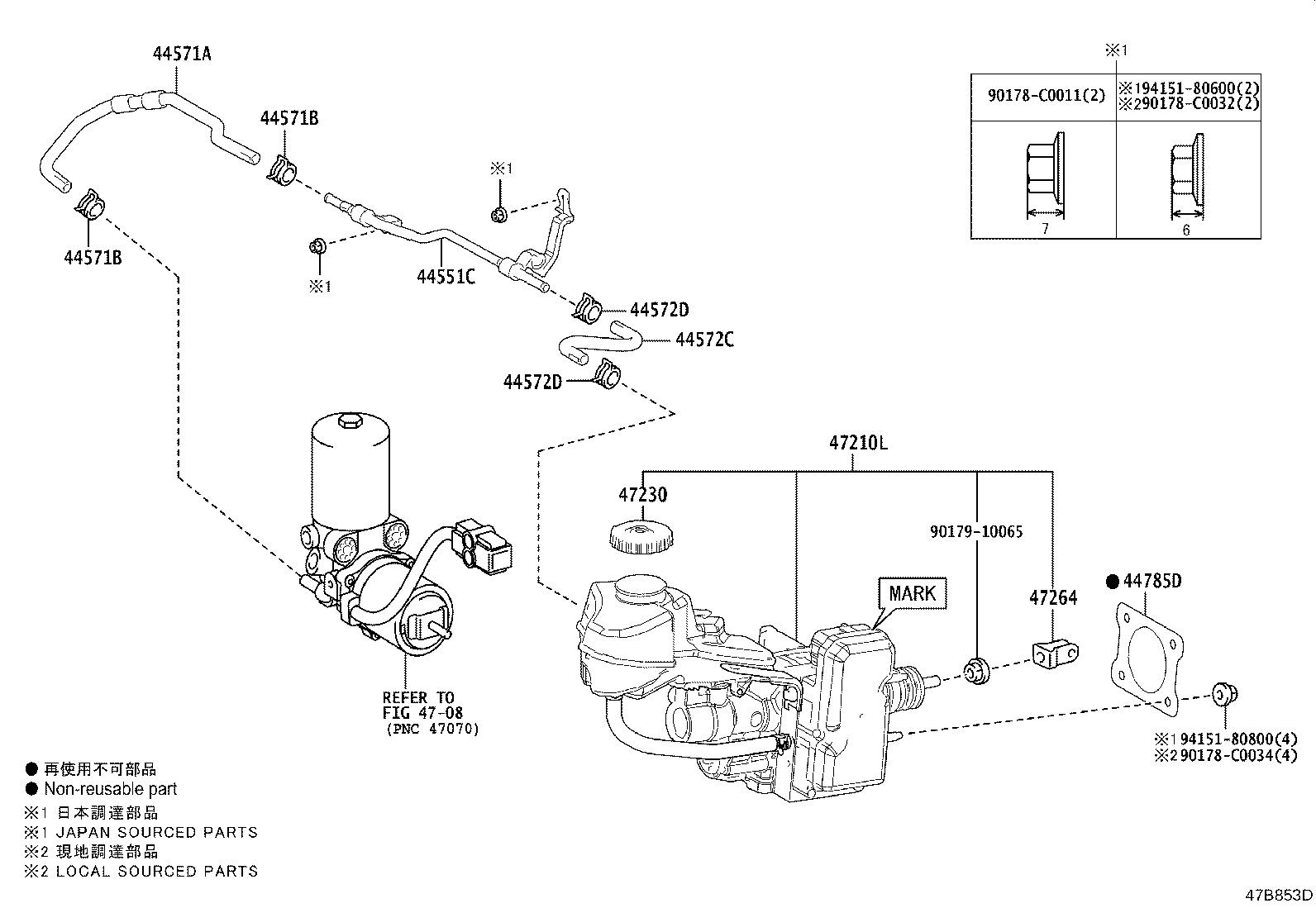

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-02080 |
ZWE211 |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-02110 |
ZWE211 |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
ZWE211 (J) |
1 | ||
| 90466-C0026 |
ZWE211 (L) |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
ZWE211 (J) |
1 | ||
| 90466-C0026 |
ZWE211 (L) |
1 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-02080 |
ZWE211 |
1 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
ZWE211 (J) |
1 | ||
| 90466-C0026 |
ZWE211 (L) |
1 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
ZWE211 (J) |
1 | ||
| 90466-C0026 |
ZWE211 (L) |
1 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-02050 |
ZWE211 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-02020 |
ZWE211..E SPORT PACKAGE,MARK=47210-02010 |
1 | ||
| 47050-02070 |
ZWE211 MARK=47210-02040 |
1 | ||
| 47050-02080 |
ZWE211..E SPORT PACKAGE,MARK=47210-02040 |
1 | ||
| 47050-02010 |
ZWE211 MARK=47210-02010 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
ZWE211 |
1 | ||
| 47230-47090 |
ZWE211 |
1 | ||
| 47230-33330 |
ZWE211 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90178-C0011 | ||||
| 90178-C0032 | ||||
| 90178-C0034 | ||||
| 90179-10065 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4708 | ||||
