ZWE211L-CEXGBC (2019)

Toyota Levin/Hybrid

Production Jun 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1906- )CVT

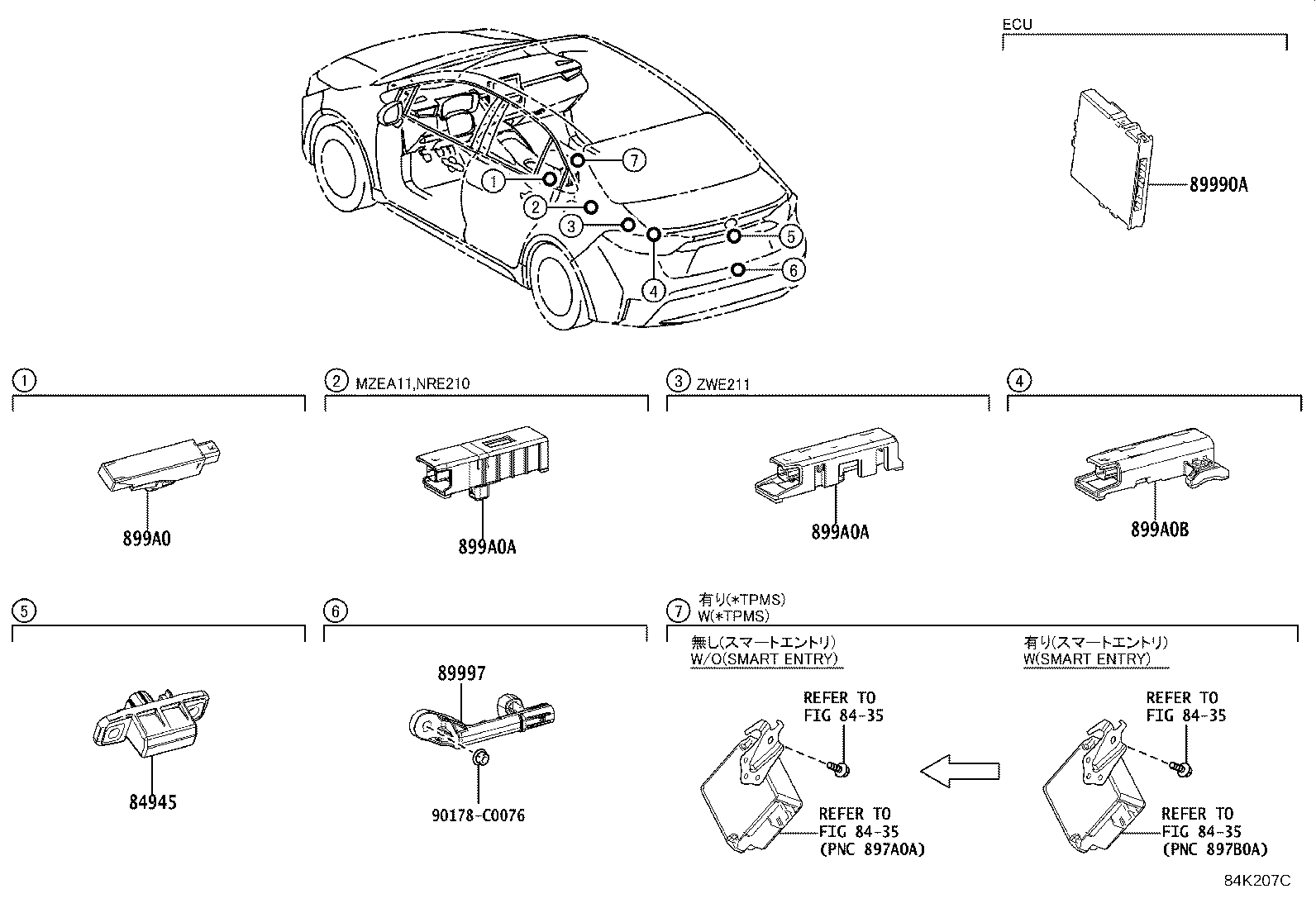

Click highlighted areas on diagram

diagram 8435 8435 8435 8435 84945 89990A 89997 899A0 899A0A 899A0A 899A0B 90178C0076
Part # Description Qty Price
84945 - SWITCH, LUGGAGE ELECTRICAL KEY
84945-02080

ZWE211;MZEA11,NRE210..CVT..(E,G)

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-02310

ZWE211..E,G

 1
899H0-02560

ZWE211..E,G

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-0E060

ZWE211;MZEA11,NRE210..CVT..(E,G)

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-02330

ZWE211;MZEA11,NRE210..CVT..(E,G)

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-02350

ZWE211

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-02350

ZWE211

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-02360

ZWE211;MZEA11,NRE210..CVT..(E,G)

 1
Common parts
90178-C0076
Linked diagrams
8435
