ZWE211L-CEXEBC (2019)

Toyota Levin/Hybrid

Production Jun 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1906- )CVT

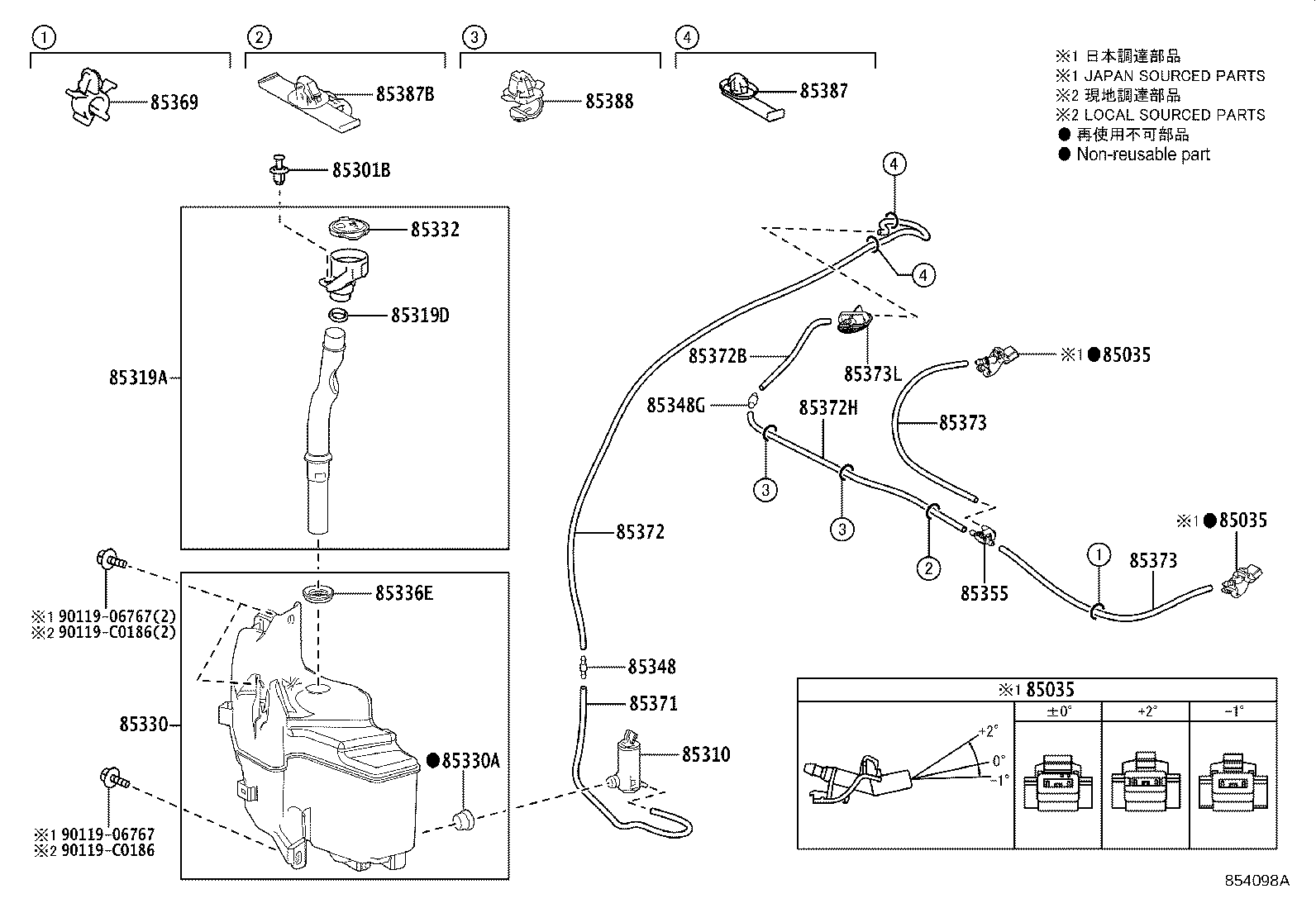

Click highlighted areas on diagram

diagram 85035 85035 85035 85301B 85310 85319A 85319D 85330 85330A 85332 85336E 85348 85348G 85355 85369 85371 85372 85372B 85372H 85373 85373 85373L 85387 85387B 85388 9011906767 9011906767 90119C0186 90119C0186
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12440

MZEA11,NRE210,ZWE211..CVT

ANGLE +2

 2
85381-12360

MZEA11,NRE210,ZWE211..CVT

ANGLE 0

 2
85381-33080

MZEA11,NRE210,ZWE211..CVT

ANGLE -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12440

MZEA11,NRE210,ZWE211..CVT

ANGLE +2

 2
85381-12360

MZEA11,NRE210,ZWE211..CVT

ANGLE 0

 2
85381-33080

MZEA11,NRE210,ZWE211..CVT

ANGLE -1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12440

MZEA11,NRE210,ZWE211..CVT

ANGLE +2

 2
85381-12360

MZEA11,NRE210,ZWE211..CVT

ANGLE 0

 2
85381-33080

MZEA11,NRE210,ZWE211..CVT

ANGLE -1

 2
85301B - CLIP, WASHER
90467-C0041

MZEA11,NRE210,ZWE211..CVT

(L)

 1
90467-07214

NRE210,ZWE211

 1
90467-07214

MZEA11,NRE210,ZWE211..CVT

(J)

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-33070

MZEA11,NRE210,ZWE211..CVT

 1
85319A - HOSE, INLET
85319-02830

MZEA11,NRE210,ZWE211..CVT

 1
85319D - PACKING, FRONT WASHER
85336-42320

MZEA11,NRE210,ZWE211..CVT

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-02830

MZEA11,NRE210,ZWE211..CVT

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

MZEA11,NRE210,ZWE211..CVT

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-06120

MZEA11,NRE210,ZWE211..CVT

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

MZEA11,NRE210,ZWE211..CVT

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-0E140

MZEA11,NRE210,ZWE211..CVT

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-0E140

MZEA11,NRE210,ZWE211..CVT

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

MZEA11,NRE210,ZWE211..CVT

 1
85369 - CLAMP
90469-C0015

MZEA11,NRE210,ZWE211..CVT

(L)

 1
90469-07011

NRE210,ZWE211

 1
90469-07011

MZEA11,NRE210,ZWE211..CVT

(J)

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33348

MZEA11,NRE210,ZWE211..CVT

*H,L=500

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33345

MZEA11,NRE210,ZWE211..CVT

L=1090

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33347

MZEA11,NRE210,ZWE211..CVT

L=280

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90068-33350

MZEA11,NRE210,ZWE211..CVT

L=510

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33351

MZEA11,NRE210,ZWE211..CVT

L=465

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33351

MZEA11,NRE210,ZWE211..CVT

L=465

 2
85373L - GROMMET, WASHER
85373-12050

MZEA11,NRE210,ZWE211..CVT

 1
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-52090

MZEA11,NRE210,ZWE211..CVT

 2
85387B - CLAMP, WASHER, NO.3
82711-35750

MZEA11,NRE210,ZWE211..CVT

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85371-12040

MZEA11,NRE210,ZWE211..CVT

 2
Common parts
90119-06767
90119-C0186
