ZWE182L-CEXVBC (2015)

Toyota Levin/Hybrid

Production Dec 2015 - Jun 2017
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1512- )ZWE182

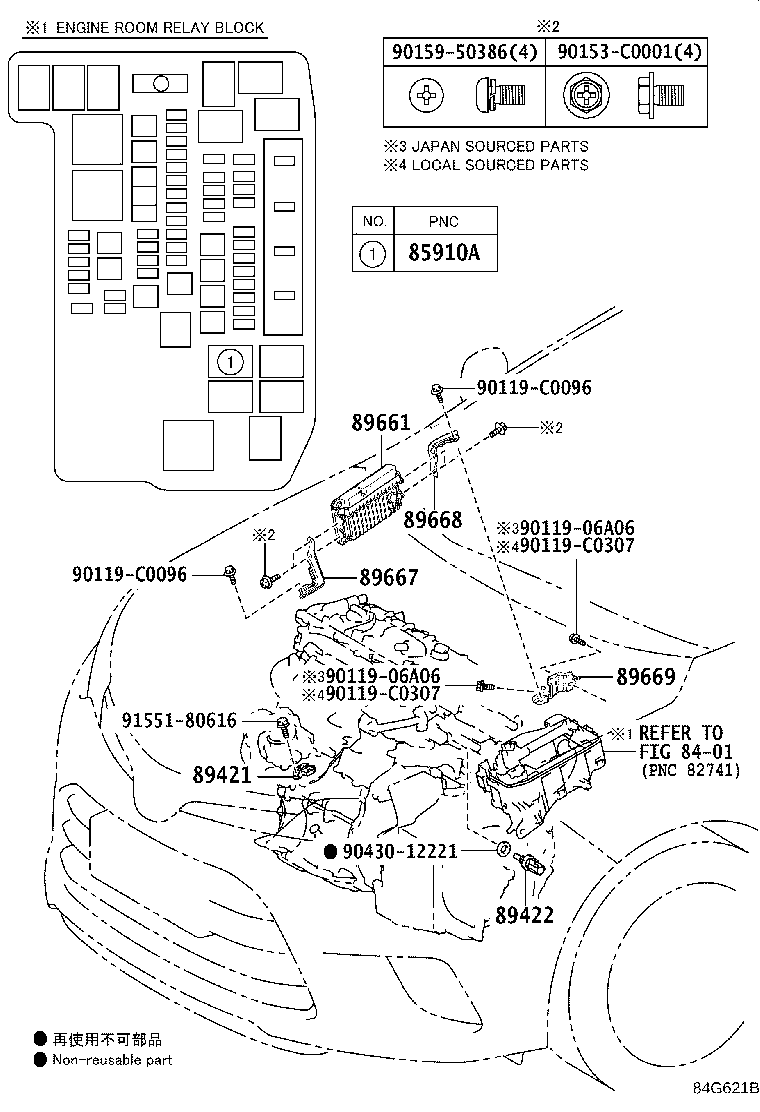

Click highlighted areas on diagram

diagram 8401 85910A 89421 89422 89661 89667 89668 89669 9011906A06 9011906A06 90119C0096 90119C0096 90119C0307 90119C0307 90153C0001 9015950386 9043012221 9155180616
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-T2005

ZWE182

(L)

 1
90987-02027

ZWE182

(J)

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-47010

ZWE182

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-0D010

ZWE182

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0Z700

ZWE182

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-02440

ZWE182

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02420

ZWE182

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-02120

ZWE182

 1
Common parts
90119-06A06
90119-C0096
90119-C0307
90153-C0001
90159-50386
90430-12221
91551-80616
Linked diagrams
8401
