ZWE182L-CEXGBC (2015)

Toyota Levin/Hybrid

Production Dec 2015 - Jun 2017
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1512- )ZWE182

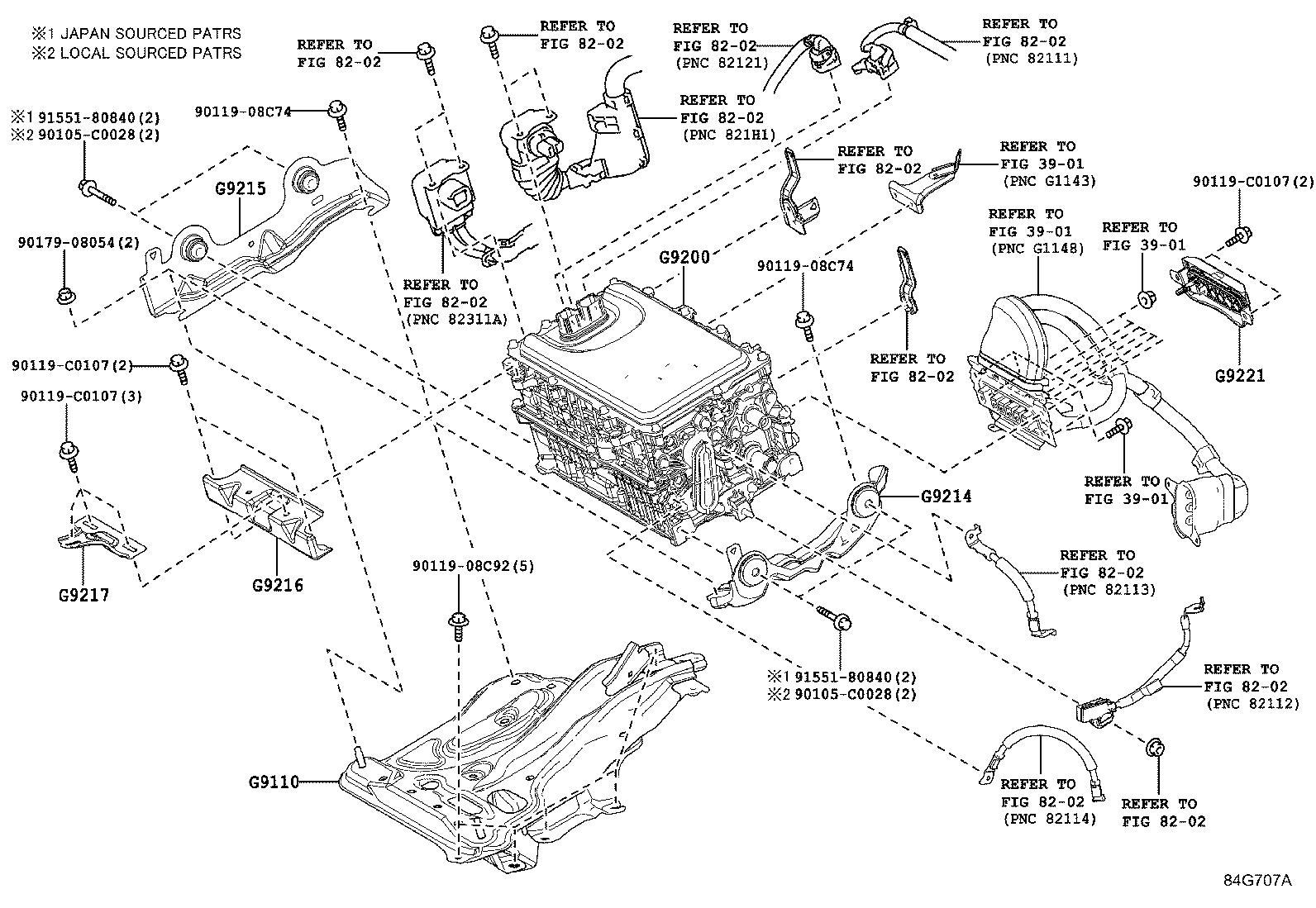

Click highlighted areas on diagram

diagram 3901 3901 3901 3901 8202 8202 8202 8202 8202 8202 8202 8202 8202 8202 8202 8202 90105C0028 90105C0028 9011908C74 9011908C74 9011908C92 90119C0107 90119C0107 90119C0107 9017908054 9155180840 9155180840 G9110 G9200 G9214 G9215 G9216 G9217 G9221
Part # Description Qty Price
G9110 - BRACKET ASSY, INVERTER
G9110-02020

ZWE182

 1
G9200 - INVERTER ASSY, W/CONVERTER
G92A0-02010

ZWE182

 1
G9214 - BRACKET, INVERTER, NO.1
G9214-02050

ZWE182

 1
G9215 - BRACKET, INVERTER, NO.2
G9215-02040

ZWE182

 1
G9216 - BRACKET, INVERTER, NO.3
G9216-02030

ZWE182

 1
G9217 - BRACKET, INVERTER, NO.4
G9217-02030

ZWE182

 1
G9221 - COVER, INVERTER
G9022-02010

ZWE182

 1
Common parts
90105-C0028
90119-08C74
90119-08C92
90119-C0107
90179-08054
91551-80840
Linked diagrams
3901
8202
