ZWE182L-CEXGBC (2015)

Toyota Levin/Hybrid

Production Dec 2015 - Jun 2017
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1512- )ZWE182

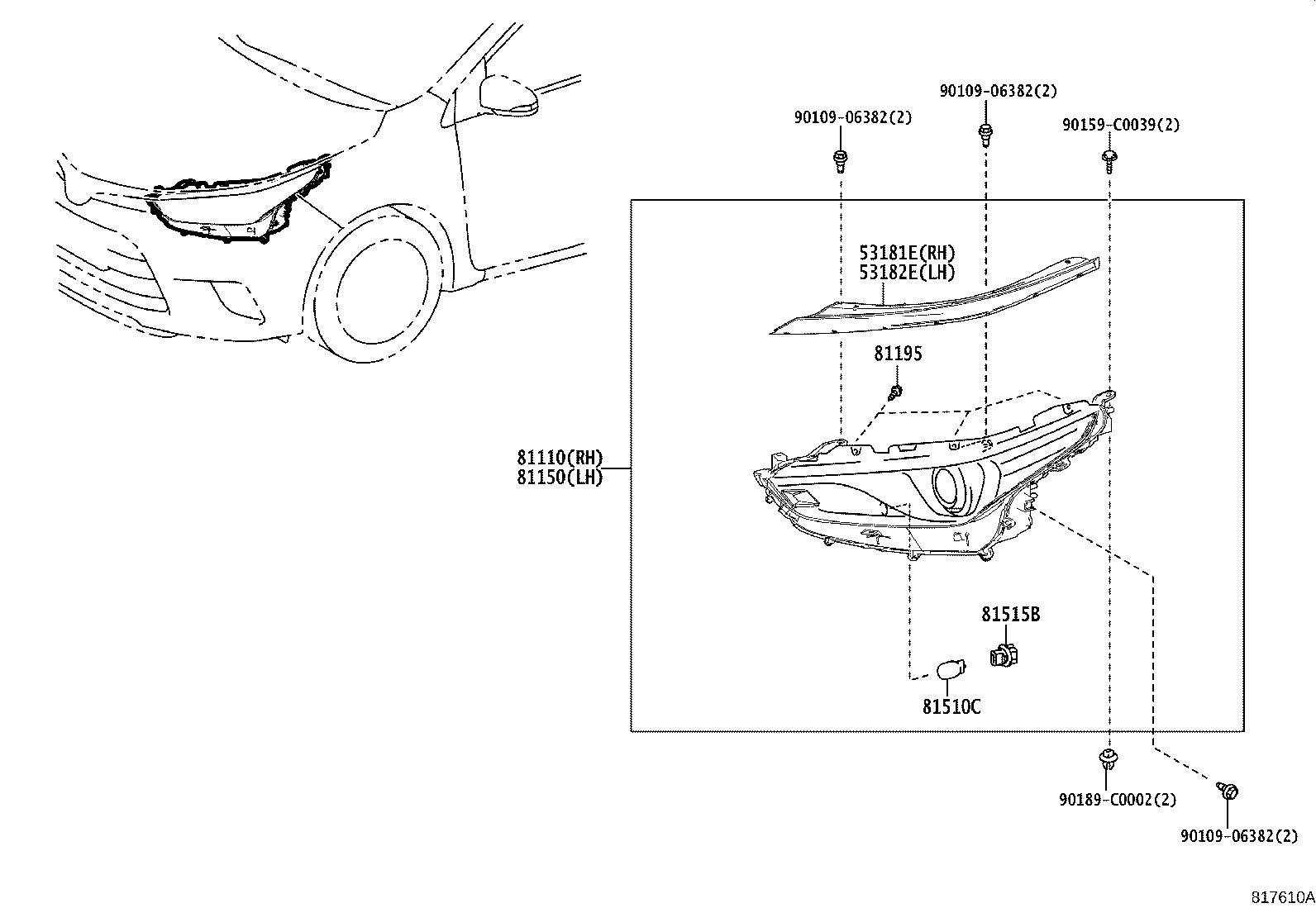

Click highlighted areas on diagram

diagram 53181E 53182E 81110 81150 81195 81510C 81515B 9010906382 9010906382 9010906382 90159C0039 90189C0002
Part # Description Qty Price
53181E - COVER, HEADLAMP, RH
81116-02K20

ZWE182

 1
53182E - COVER, HEADLAMP, LH
81156-02K20

ZWE182

 1
81110 - HEADLAMP ASSY, RH
81110-02K20

ZWE182

 1
81150 - HEADLAMP ASSY, LH
81150-02K20

ZWE182

 1
81195 - SCREW, HEADLAMP
90075-02063

ZWE182

 6
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZRE182..CVT;NRE181,ZWE182

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ZRE182..CVT;NRE181,ZWE182

 2
Common parts
90109-06382
90159-C0039
90189-C0002
