ZWE182L-CEXEBC (2017)

Toyota Levin/Hybrid

Production Jun 2017 - May 2019
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

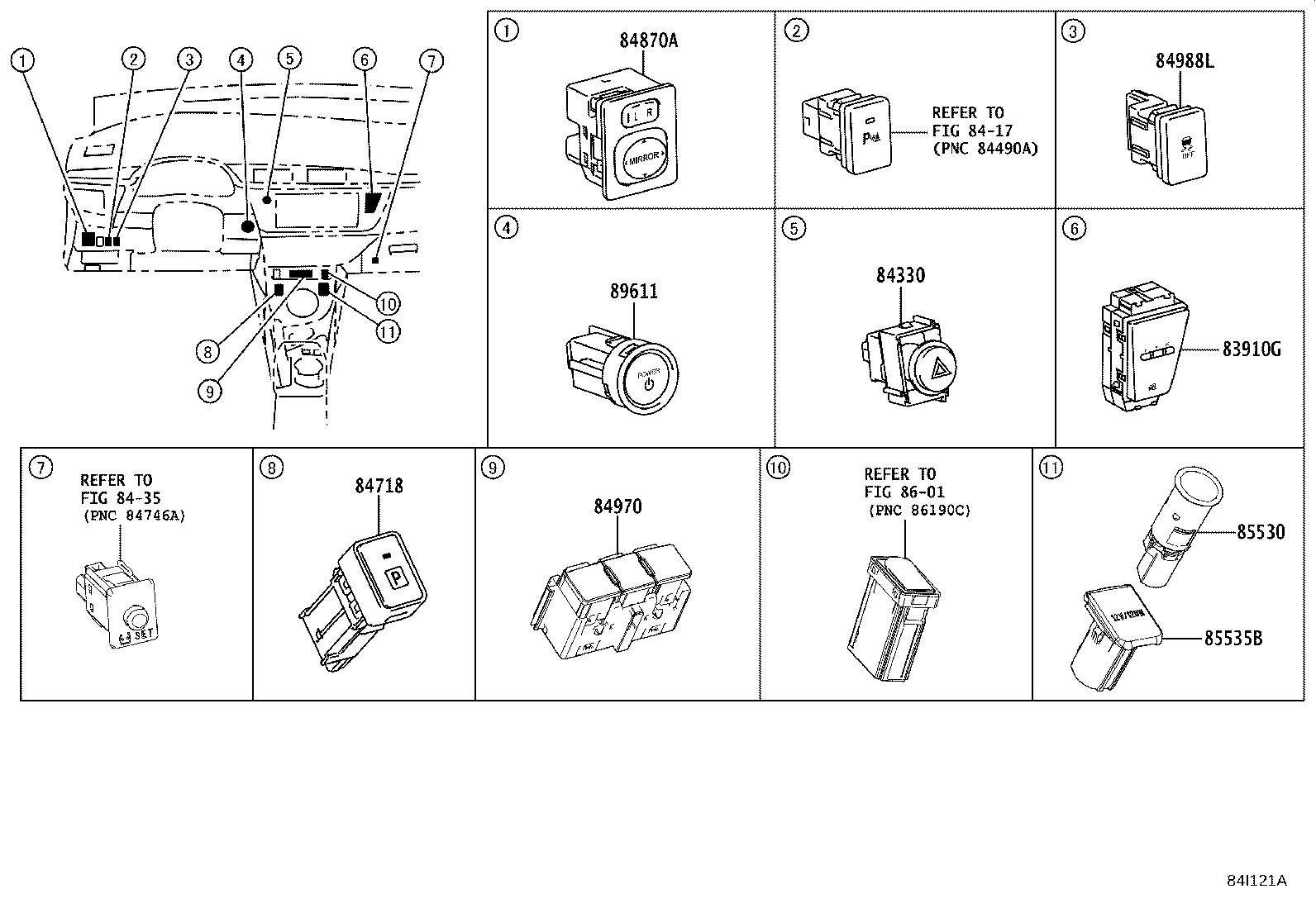

ILLUST NO. 6 OF 9(1706- )ZWE182

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 83910G 8417 84330 8435 84718 84870A 84970 84988L 85530 85535B 8601 89611
Part # Description Qty Price
83910G - CLOCK ASSY
83910-02190

ZRE182..CVT;NRE181,ZWE182

 1
83910-02330

ZWE182..G,V;NRE181,ZRE182..E,G,V

 1
83910-02340

ZRE182,ZWE182..V

AUDIO-AVN(ACCESSORY) & 6SPEAKER

 1
83910-02340

NRE181..N;ZWE182..E

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-02370

NRE181,ZRE182,ZWE182

 1
84718 - SWITCH, TRANSMISSION SHIFT MAIN
84718-02050

ZWE182

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-02230

NRE181,ZRE182,ZWE182

 1
84870-02230

ZRE182..CVT;NRE181,ZWE182

 1
84970 - SWITCH ASSY, COMBINATION
84970-02080

ZWE182

 1
84988L - SWITCH, VSC OFF
84988-02061

NRE181,ZRE182,ZWE182

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0E070

NRE181,ZRE182,ZWE182

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-02100

NRE181,ZRE182,ZWE182

 1
89611 - SWITCH, PUSH START
89611-02162

ZWE182

 1
Linked diagrams
8417
8435
8601
