ZRE182L-CEXVKC (2017)

Toyota Levin/Hybrid

Production Jun 2017 - May 2019
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )

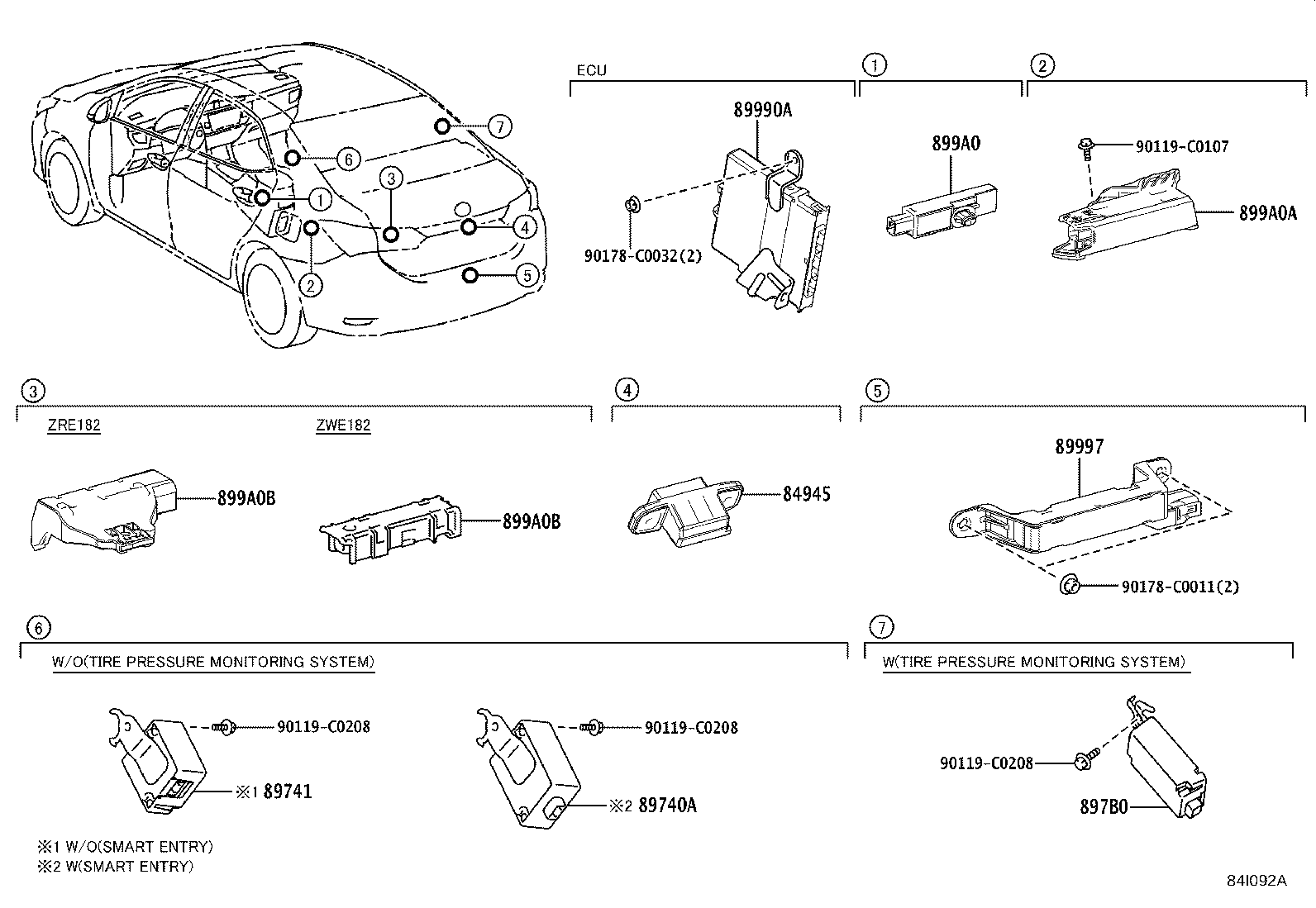

Click highlighted areas on diagram

diagram 84945 89740A 89741 897B0 89990A 89997 899A0 899A0A 899A0B 899A0B 90119C0107 90119C0208 90119C0208 90119C0208 90178C0011 90178C0032
Part # Description Qty Price
84945 - SWITCH, LUGGAGE ELECTRICAL KEY
84945-02030

ZWE182;ZRE182..V

 1
84945-02030

ZRE182,ZWE182

 1
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-02190

ZRE182,ZWE182..E,G

 1
89740-02190

ZWE182;ZRE182..V

 1
897B0 - RECEIVER ASSY, ELECTRICAL KEY & TPMS
897B0-02040

ZRE182,ZWE182..V

 1
89990A - COMPUTER ASSY, SMART KEY
89990-02440

ZRE182

 1
89990-02290

ZRE182..V

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30070

ZWE182;ZRE182..V

 1
89997-30070

ZRE182,ZWE182

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0F010

ZWE182;ZRE182..V

 1
899A0-0F010

ZRE182,ZWE182

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-02150

ZWE182;ZRE182..V

 1
899A0-02150

ZRE182,ZWE182

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-02160

ZRE182..V

 1
899A0-02160

ZRE182

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-02160

ZRE182..V

 1
899A0-02160

ZRE182

 1
Common parts
90119-C0107
90119-C0208
90178-C0011
90178-C0032
