ZRE182L-CEXGKC (2017)
Toyota Levin/Hybrid

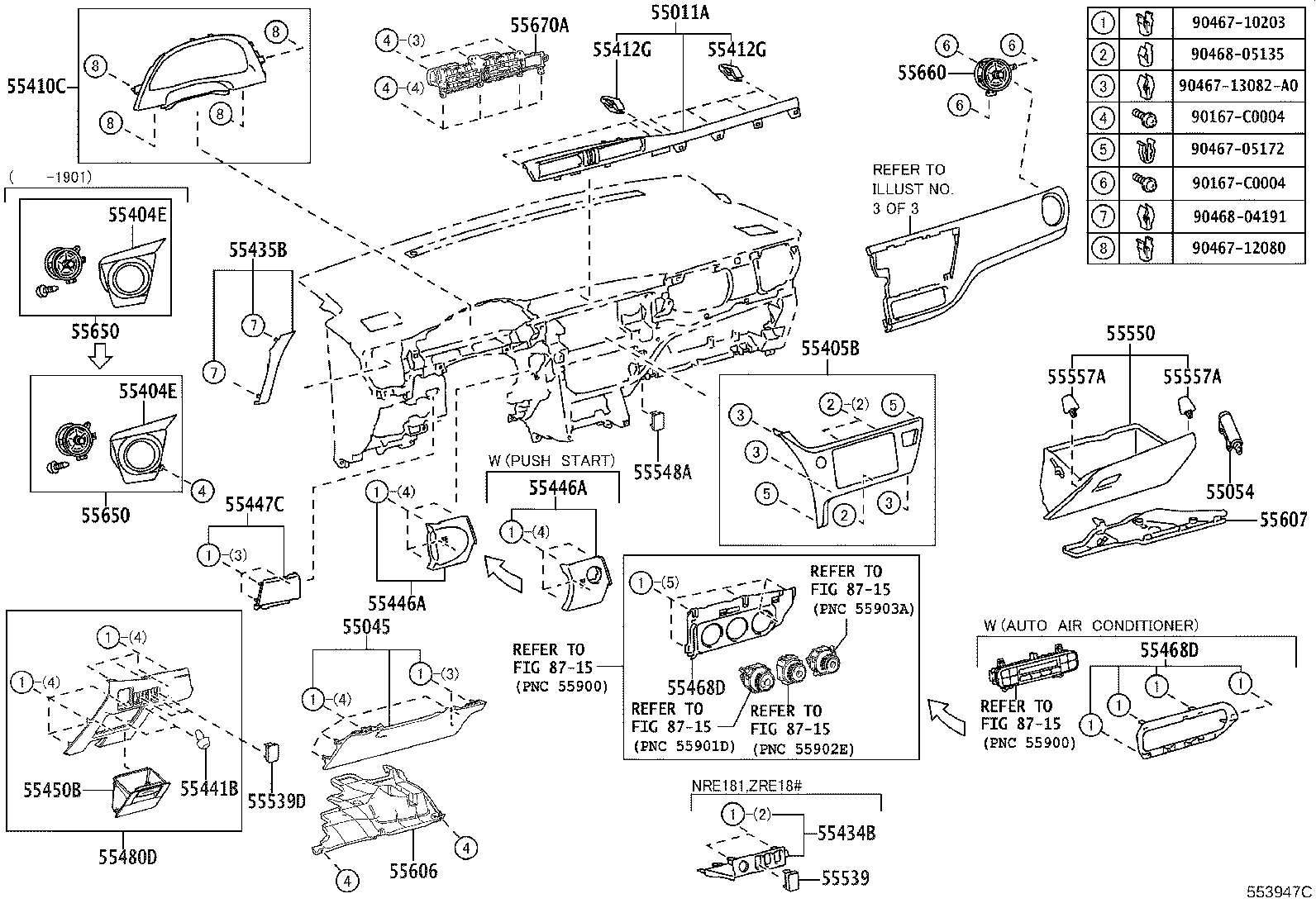

ILLUST NO. 2 OF 3(1706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02160B1 |
ZRE182,ZWE182..V MD.SILVER /MD.SILVER,TRIM2# |
1 | ||
| 55011-02170C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55011-02170C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55011-02160B1 |
NRE181,ZRE18#,ZWE182..E,G,N MD.SILVER /MD.SILVER,TRIM0#,2# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02480C0 |
ZRE182..V BLACK,TRIM2# |
1 | ||
| 55045-02480C0 |
ZRE18#..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55045-02481C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55045-02481C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 55054-47010 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-02620C1 |
ZWE182..G;NRE181,ZRE182 BLACK,TRIM2# |
1 | ||
| 55404-02620C0 |
NRE181,ZRE182,ZWE182..E,G,N FLAXEN,TRIM0# |
1 | ||
| 55404-02621C1 |
NRE181,ZRE182 BLACK,TRIM2# |
1 | ||
| 55404-02621A0 |
NRE181,ZRE182,ZWE182..E,G,N FLAXEN,TRIM0# |
1 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-02620C1 |
ZWE182..G;NRE181,ZRE182 BLACK,TRIM2# |
1 | ||
| 55404-02620C0 |
NRE181,ZRE182,ZWE182..E,G,N FLAXEN,TRIM0# |
1 | ||
| 55404-02621C1 |
NRE181,ZRE182 BLACK,TRIM2# |
1 | ||
| 55404-02621A0 |
NRE181,ZRE182,ZWE182..E,G,N FLAXEN,TRIM0# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02820C0 |
ZRE182..G AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,BLACK METALLC,TRIM0#,2# |
1 | ||
| 55405-02820C0 |
ZRE182..V BLACK METALLC,TRIM2# |
1 | ||
| 55405-02D10 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 55405-02820C0 |
ZRE18#..E,G,N BLACK METALLC,TRIM0#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02551C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55410-02550C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55410-02430C0 |
ZRE182..V BLACK,TRIM2# |
1 | ||
| 55410-02551C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55410-02430C0 |
ZRE18#..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55410-02550C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
NRE181,ZRE182,ZWE182 MELLOW WHITE |
7 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
NRE181,ZRE182,ZWE182 MELLOW WHITE |
7 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02300C0 |
ZRE182..V BLACK,TRIM2# |
1 | ||
| 55434-02300C0 |
NRE181,ZRE18#..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55434-02300C0 |
NRE181,ZRE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55434-02300C0 |
ZRE182..V BLACK,TRIM2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-02750C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55435-02751C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55435-02751C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55435-02750C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 58959-60060 |
ZRE182..CVT;NRE181,ZWE182 |
2 | ||
| 58959-60060 |
NRE181,ZRE182,ZWE182 |
2 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02540C0 |
NRE181,ZRE18#..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55446-02530C0 |
ZRE182,ZWE182..E,G BLACK,TRIM0#,2# |
1 | ||
| 55446-02530C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55446-02530C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02540C0 |
NRE181,ZRE18#..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55446-02530C0 |
ZRE182,ZWE182..E,G BLACK,TRIM0#,2# |
1 | ||
| 55446-02530C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55446-02530C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02290C0 |
NRE181,ZRE18#,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55447-02290C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55447-02290C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55447-02290C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02230C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55450-02230C0 |
NRE181,ZRE18#,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55450-02230C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55450-02230C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55468D - RETAINER, INSTRUMENT PANEL SAFETY PAD, CENTER | ||||
| 55468-02170 |
NRE181,ZRE182..E,G,N |
1 | ||
| 55468-02160 |
ZWE182;ZRE182..V |
1 | ||
| 55468D - RETAINER, INSTRUMENT PANEL SAFETY PAD, CENTER | ||||
| 55468-02170 |
NRE181,ZRE182..E,G,N |
1 | ||
| 55468-02160 |
ZWE182;ZRE182..V |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-02150C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55480-02150C0 |
ZRE182,ZWE182..CVT..(E,G) BLACK,TRIM0#,2# |
1 | ||
| 55480-02151C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55480-02151C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D100C0 |
ZRE182..V BLACK,TRIM2# |
1 | ||
| 55539-0D100C0 |
ZRE182..V AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55539-0D100C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55539-0D100C0 |
NRE181,ZRE182..CVT..(E,G) LEATHER SEAT & 16INCH ALUMINUM WHEEL&AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 55539-0D100C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55539-0D100C0 |
NRE181,ZRE182..E,G AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 55539-0D100C0 |
NRE181,ZRE182..E,G AUDIO-AVN(ACCESSORY) & 4SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 55539-0D100C0 |
ZRE182..V AUDIO-AVN(ACCESSORY) & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55539-0D100C0 |
NRE181,ZRE182..CVT..(E,G) LEATHER SEAT & 16INCH ALUMINUM WHEEL&AUDIO-*DA & *BT & 4SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 55539-0D100C0 |
NRE181,ZRE18#..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D100C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55539-0D100C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55539-0D100C0 |
NRE181,ZRE182..CVT..(E,G) LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM0#,2# |
1 | ||
| 55539-0D100C0 |
NRE181,ZRE182..G,N;ZRE181,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-02660C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02511C0 |
NRE181,ZRE182,ZWE182..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55550-02510C0 |
ZRE182..V BLACK,TRIM2# |
1 | ||
| 55550-02510C0 |
ZRE18#..E,G,N BLACK,TRIM0#,2# |
1 | ||
| 55550-02511C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE182..CVT;NRE181,ZWE182 |
2 | ||
| 55557-60050 |
NRE181,ZRE182,ZWE182 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE182..CVT;NRE181,ZWE182 |
2 | ||
| 55557-60050 |
NRE181,ZRE182,ZWE182 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02300 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 55606-02300 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02250 |
ZRE182..V |
1 | ||
| 55607-02250 |
ZRE18#..E,G,N COLD AREA SPEC |
1 | ||
| 55607-02251 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02570A0 |
ZRE182,ZWE182..CVT..G IVORY,TRIM0# |
1 | ||
| 55650-02570C0 |
ZRE182,ZWE182..CVT..(G,V) BLACK,TRIM2# |
1 | ||
| 55650-02710C4 |
ZWE182..G;NRE181,ZRE182..E,G BLACK/FLAXEN,TRIM0# |
1 | ||
| 55650-02710C5 |
ZWE182..G;NRE181,ZRE182..E,G,V BLACK/BLACK,TRIM2# |
1 | ||
| 55650-02711A0 |
ZWE182..G;NRE181,ZRE182..E,G FLAXEN,TRIM0# |
1 | ||
| 55650-02711C5 |
NRE181,ZRE182..E,G,V BLACK,TRIM2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02570A0 |
ZRE182,ZWE182..CVT..G IVORY,TRIM0# |
1 | ||
| 55650-02570C0 |
ZRE182,ZWE182..CVT..(G,V) BLACK,TRIM2# |
1 | ||
| 55650-02710C4 |
ZWE182..G;NRE181,ZRE182..E,G BLACK/FLAXEN,TRIM0# |
1 | ||
| 55650-02710C5 |
ZWE182..G;NRE181,ZRE182..E,G,V BLACK/BLACK,TRIM2# |
1 | ||
| 55650-02711A0 |
ZWE182..G;NRE181,ZRE182..E,G FLAXEN,TRIM0# |
1 | ||
| 55650-02711C5 |
NRE181,ZRE182..E,G,V BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02380B0 |
ZWE182..G;NRE181,ZRE18#..E,G MD.SILVER,TRIM0#,2# |
1 | ||
| 55660-02380B0 |
ZRE182,ZWE182..V MD.SILVER,TRIM2# |
1 | ||
| 55660-02440 |
ZWE182..G,V;NRE181,ZRE182..E,G,V |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02740 |
ZWE182..G,V;NRE181,ZRE182..E,G,V |
1 | ||
| 55670-02530 |
NRE181..E;ZRE182,ZWE182..CVT..(G,V) |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 90468-04191 | ||||
| 90468-05135 | ||||
| Linked diagrams | ||||
| 8715 | ||||

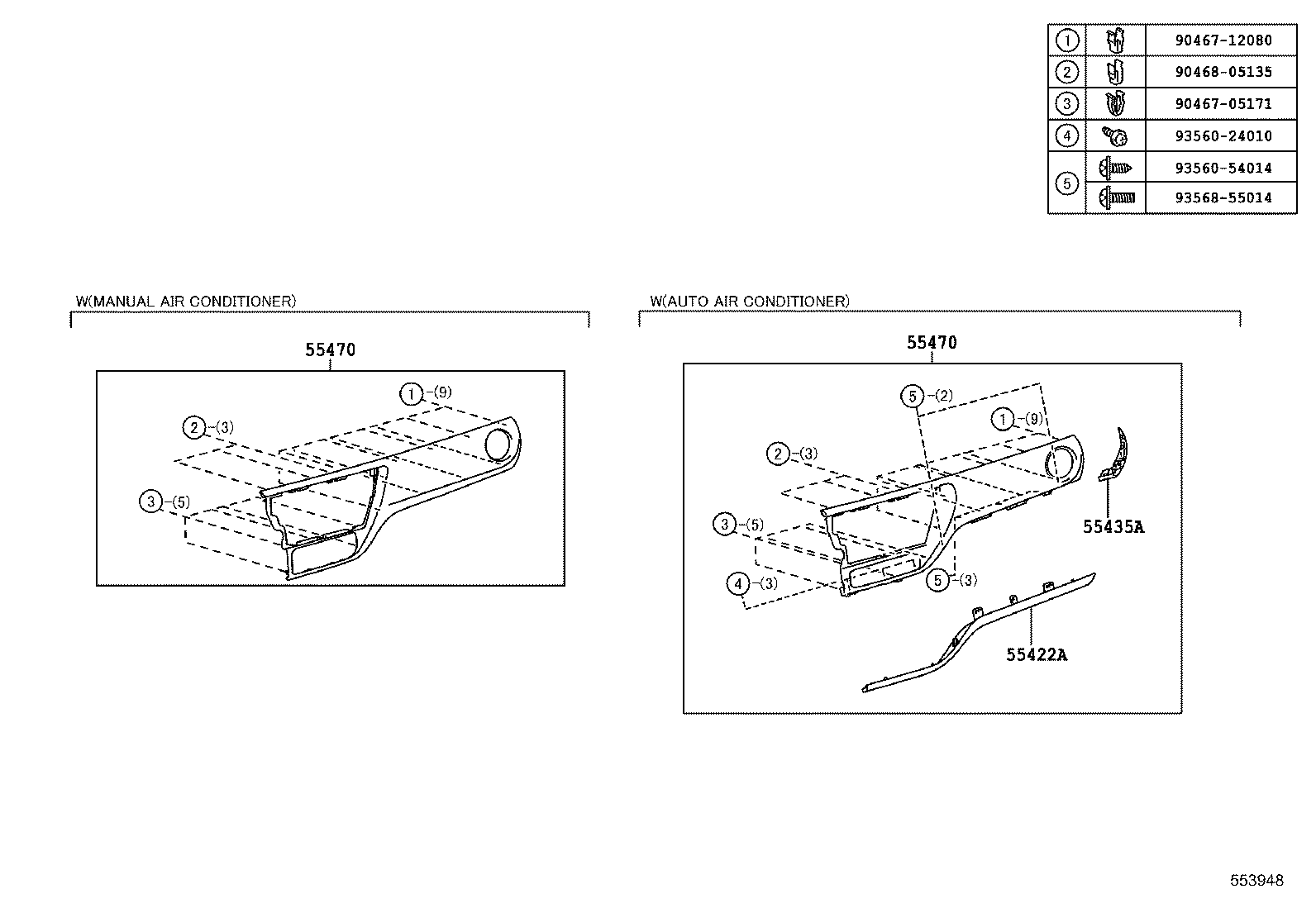

ILLUST NO. 3 OF 3(1706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02650C0 |
ZRE182..V BLACK,TRIM2# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-02760C0 |
ZRE182,ZWE182..V BLACK,TRIM2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02410C0 |
ZRE18# BLACK,TRIM2# |
1 | ||
| 55470-02570C2 |
NRE181,ZRE182..E,G,N BLACK/BLACK,TRIM2# |
1 | ||
| 55470-02580C1 |
ZRE182..V BLACK,TRIM2# |
1 | ||
| 55470-02570C1 |
NRE181,ZRE182..E,G,N BLACK/FLAXEN,TRIM0# |
1 | ||
| 55470-02410A0 |
ZRE18#..E,G,N IVORY,TRIM0# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02410C0 |
ZRE18# BLACK,TRIM2# |
1 | ||
| 55470-02570C2 |
NRE181,ZRE182..E,G,N BLACK/BLACK,TRIM2# |
1 | ||
| 55470-02580C1 |
ZRE182..V BLACK,TRIM2# |
1 | ||
| 55470-02570C1 |
NRE181,ZRE182..E,G,N BLACK/FLAXEN,TRIM0# |
1 | ||
| 55470-02410A0 |
ZRE18#..E,G,N IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93560-24010 | ||||
| 93560-54014 | ||||
| 93568-55014 | ||||
