ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408-1706)

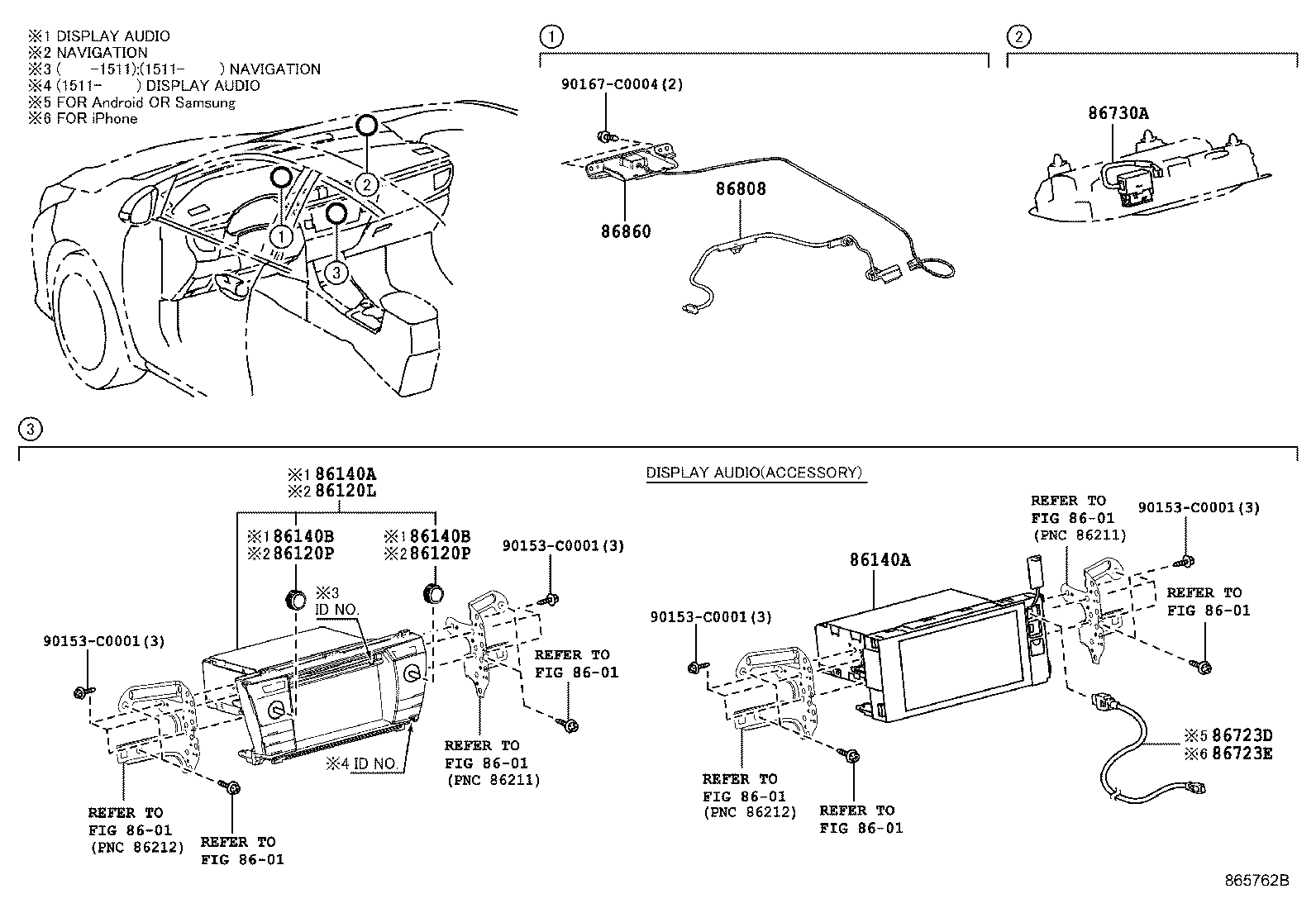

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8601 86120L 86120P 86120P 86140A 86140A 86140B 86140B 86723D 86723E 86730A 86808 86860 90153C0001 90153C0001 90153C0001 90153C0001 90167C0004
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-02200

ZRE182..G

FUJITSU TEN,ID100304

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-02200

ZRE182..G

FUJITSU TEN,ID100304

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25240

ZRE182..6F

 2
90011-25240

ZRE182..6F

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

 2
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90011-25240

ZRE182..6F

 2
90011-25240

ZRE182..6F

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

 2
86723D - WIRE, MOBILEPHONE, NO.1
86723-YY110

ZRE182..6F

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

 1
86723E - WIRE, MOBILEPHONE, NO.2
86723-YY130

ZRE182..6F

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-06020

ZRE182,ZWE182..G,V

 1
Common parts
90153-C0001
90167-C0004
Linked diagrams
8601
