ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

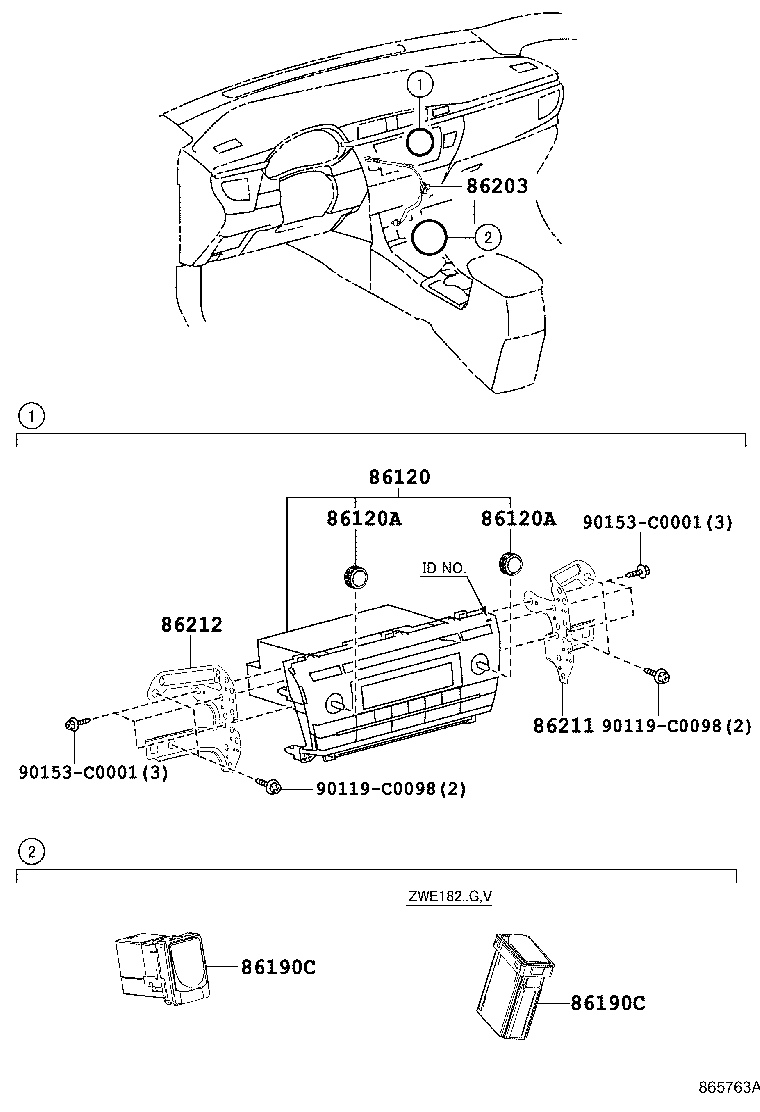

ILLUST NO. 1 OF 2(1408-1706)

Click highlighted areas on diagram

RECEIVER & STEREO JACK ADAPTER

diagram 86120 86120A 86120A 86190C 86190C 86203 86211 86212 90119C0098 90119C0098 90153C0001 90153C0001
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-02040

ZRE182..6F

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-02040

ZRE182..6F

 1
86203 - WIRE, RADIO
86203-02110

ZRE182..6F

 1
86211 - BRACKET, RADIO, NO.1
86211-02420

NRE181,ZRE18#,ZWE182

 1
86212 - BRACKET, RADIO, NO.2
86212-02410

NRE181,ZRE18#,ZWE182

 1
Common parts
90119-C0098
90153-C0001

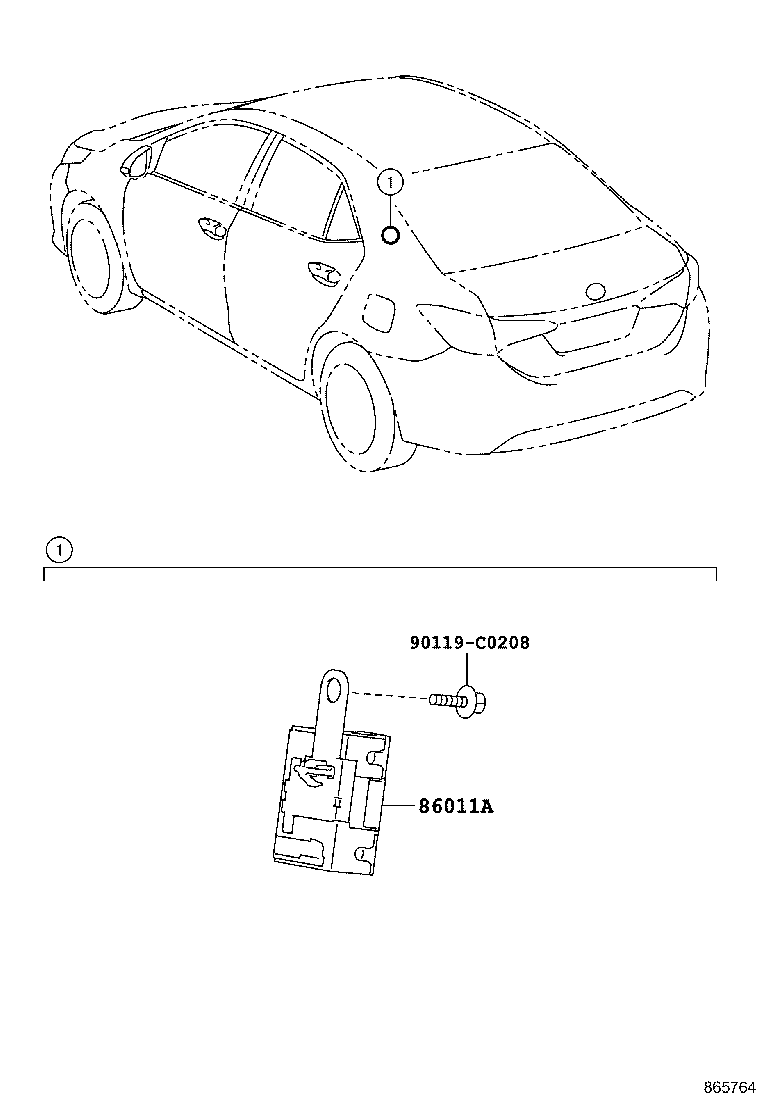

ILLUST NO. 2 OF 2(1408- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 90119C0208
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04204

NRE181,ZRE18#,ZWE182

 1
Common parts
90119-C0208
