ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )

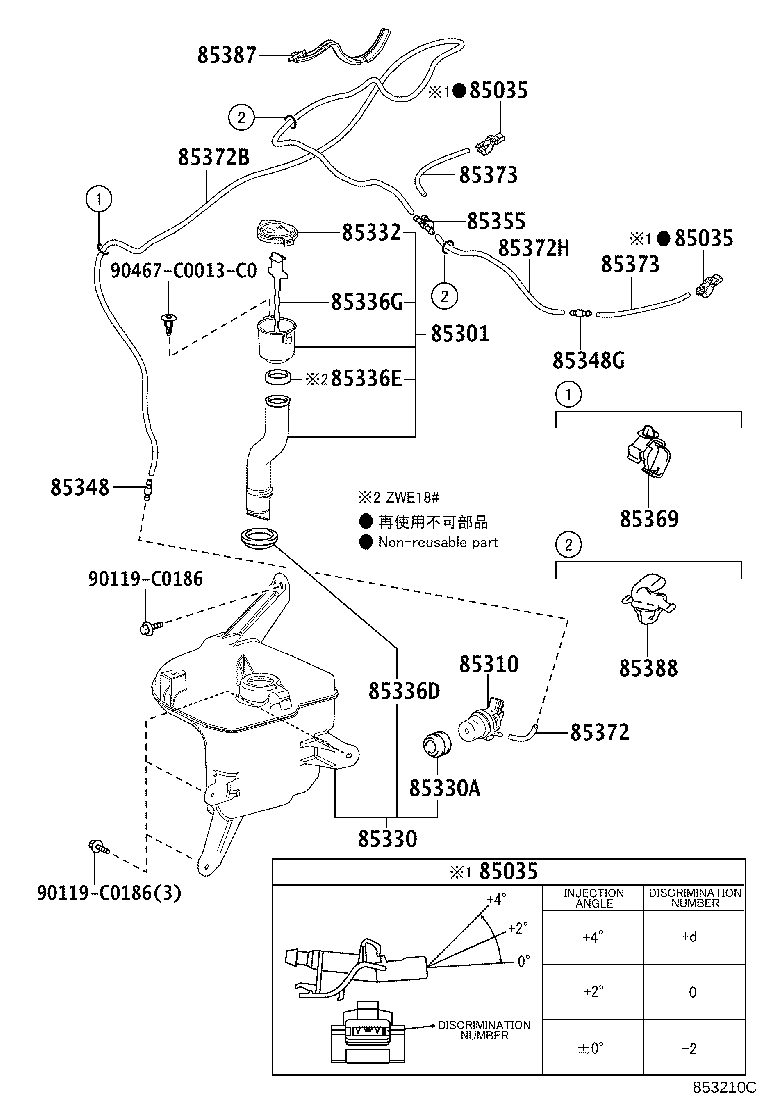

Click highlighted areas on diagram

diagram 85035 85035 85035 85301 85310 85330 85330A 85332 85336D 85336E 85336G 85348 85348G 85355 85369 85372 85372B 85372H 85373 85373 85387 85388 90119C0186 90119C0186 90467C0013C0
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

ZRE181;ZRE182..6F

ANGLE 0

 2
85381-12430

ZRE181;ZRE182..6F

ANGLE +4

 2
85381-12420

ZRE181;ZRE182..6F

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

ZRE181;ZRE182..6F

ANGLE 0

 2
85381-12430

ZRE181;ZRE182..6F

ANGLE +4

 2
85381-12420

ZRE181;ZRE182..6F

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

ZRE181;ZRE182..6F

ANGLE 0

 2
85381-12430

ZRE181;ZRE182..6F

ANGLE +4

 2
85381-12420

ZRE181;ZRE182..6F

ANGLE +2

 2
85301 - INLET SUB-ASSY, WASHER
85301-02140

ZRE181;ZRE182..6F

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

ZRE181;ZRE182..6F

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-02460

ZRE181;ZRE182..6F

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

ZRE181;ZRE182..6F

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-02440

ZRE181;ZRE182..6F

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

ZRE181;ZRE182..6F

 1
85336G - GAGE, WATER LEVEL
85312-0P010

ZRE181;ZRE182..6F

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-0E140

ZRE181;ZRE182..6F

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-0E140

ZRE181;ZRE182..6F

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

ZRE181;ZRE182..6F

 1
85369 - CLAMP
82711-1E350

ZRE18#,ZWE182

 1
82711-06180

ZRE181;ZRE182..6F

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33232

ZRE181;ZRE182..6F

L=60

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-59132

ZRE181;ZRE182..6F

L=2100

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90068-59133

ZRE181;ZRE182..6F

L=360

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33231

ZRE181;ZRE182..6F

L=170

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33231

ZRE181;ZRE182..6F

L=170

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85388-02510

ZRE181;ZRE182..6F

 1
85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER)
85371-12040

ZRE181;ZRE182..6F

 2
Common parts
90119-C0186
90467-C0013C0
