ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408-1706)NRE181,ZRE18#

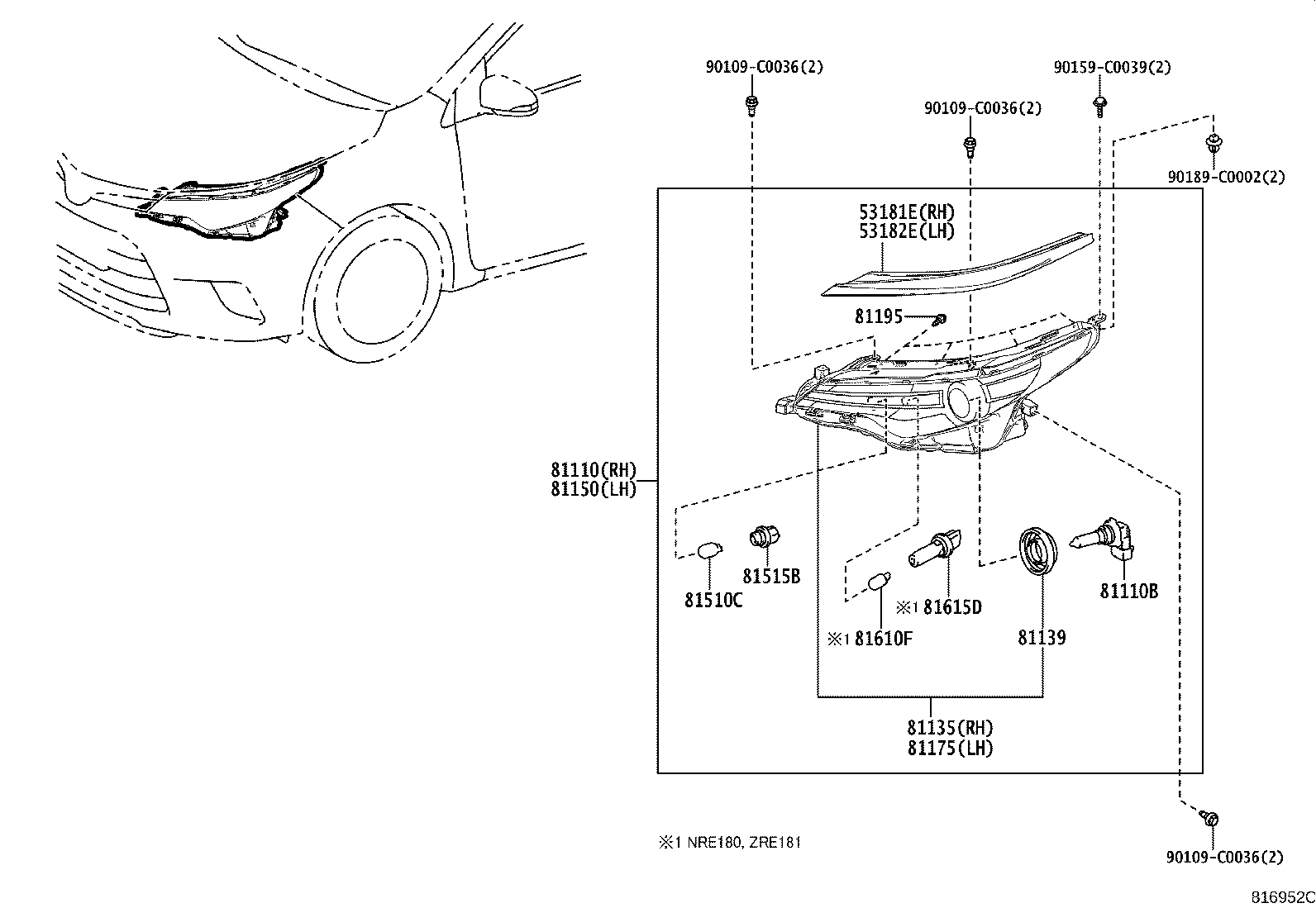

Click highlighted areas on diagram

diagram 53181E 53182E 81110 81110B 81135 81139 81150 81175 81195 81510C 81515B 81610F 81615D 90109C0036 90109C0036 90109C0036 90159C0039 90189C0002
Part # Description Qty Price
53181E - COVER, HEADLAMP, RH
81116-02J20

ZRE181;ZRE182..6F

 1
53182E - COVER, HEADLAMP, LH
81156-02J20

ZRE181;ZRE182..6F

 1
81110 - HEADLAMP ASSY, RH
81110-02J30

ZRE182..6F

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13091

ZRE181;ZRE182..6F

12V 55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-02J30

ZRE182..6F

 1
81139 - COVER, HEADLAMP SOCKET
90075-65006

ZRE181;ZRE182..6F

 2
81150 - HEADLAMP ASSY, LH
81150-02J30

ZRE182..6F

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-02J30

ZRE182..6F

 1
81195 - SCREW, HEADLAMP
90075-02063

ZRE181;ZRE182..6F

 8
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ZRE181;ZRE182..6F

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ZRE181;ZRE182..6F

 2
Common parts
90109-C0036
90159-C0039
90189-C0002
