ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )

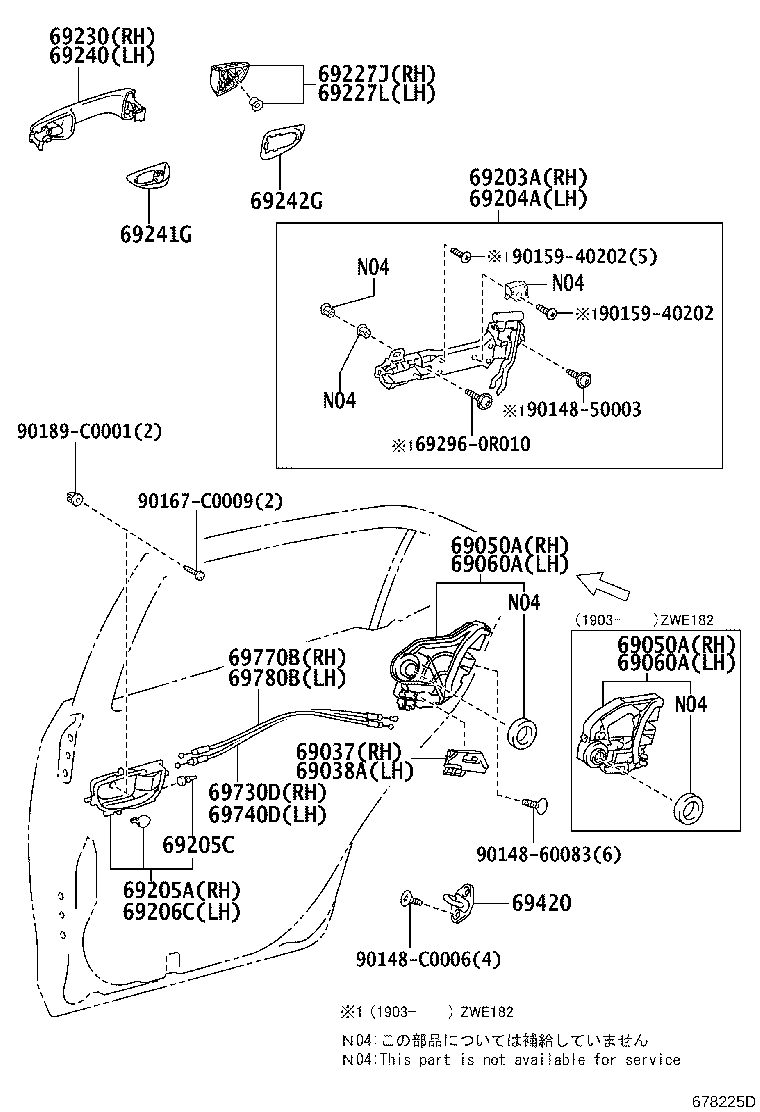

Click highlighted areas on diagram

diagram 69037 69038A 69050A 69050A 69060A 69060A 69203A 69204A 69205A 69205C 69206C 69227J 69227L 69230 69240 69241G 69242G 692960R010 69420 69730D 69740D 69770B 69780B 9014850003 9014860083 90148C0006 9015940202 9015940202 90167C0009 90189C0001
Part # Description Qty Price
69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH
69037-02070

ZRE181;ZRE182..6F

 1
69038A - COVER SUB-ASSY, REAR DOOR LOCK, LH
69038-02070

ZRE181;ZRE182..6F

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-02480

ZRE181;ZRE182..6F

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-02480

ZRE181;ZRE182..6F

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-02480

ZRE181;ZRE182..6F

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-02480

ZRE181;ZRE182..6F

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-02300

ZRE181;ZRE182..6F

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-02300

ZRE181;ZRE182..6F

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-02340C0

NRE181,ZRE18#,ZWE182

BLACK,TRIM2#

 1
69205-02340A0

NRE181,ZRE18#,ZWE182..E,G,N

IVORY,TRIM0#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

ZRE181;ZRE182..6F

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-02330A0

NRE181,ZRE18#,ZWE182..E,G,N

IVORY,TRIM0#

 1
69206-02330C0

NRE181,ZRE18#,ZWE182

BLACK,TRIM2#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-02320C0

ZWE182..E;NRE181,ZRE18#..E,G,N

ATTITUDE BLACK MC.,218

 1
69227-02320D0

ZWE182..E;NRE181,ZRE18#..E,G,N

RED M.M.,3R3

 1
69227-02320B0

ZWE182..E;NRE181,ZRE18#..E,G,N

SILVER ME.,1D4

 1
69227-02320A0

ZWE182..E;NRE181,ZRE18#..E,G,N

WHITE PEARL CS.,070

 1
69227-02320B1

ZRE18#..E,G,N

GRAY ME.,1G3

 1
69227-02320E0

ZWE182..E;NRE181,ZRE18#..E,G,N

ORANGE ME.,4R8

 1
69227-02320J0

ZWE182..E;NRE181,ZRE18#..E,G,N

BLUE ME.,8T7

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69228-02120B1

ZRE18#..E,G,N

GRAY ME.,1G3

 1
69228-02120A0

ZWE182..E;NRE181,ZRE18#..E,G,N

WHITE PEARL CS.,070

 1
69228-02120D0

ZWE182..E;NRE181,ZRE18#..E,G,N

RED M.M.,3R3

 1
69228-02120C0

ZWE182..E;NRE181,ZRE18#..E,G,N

ATTITUDE BLACK MC.,218

 1
69228-02120J0

ZWE182..E;NRE181,ZRE18#..E,G,N

BLUE ME.,8T7

 1
69228-02120E0

ZWE182..E;NRE181,ZRE18#..E,G,N

ORANGE ME.,4R8

 1
69228-02120B0

ZWE182..E;NRE181,ZRE18#..E,G,N

SILVER ME.,1D4

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-02320B1

ZRE18#..E,G,N

GRAY ME.,1G3

 1
69211-02320D0

ZWE182..E;NRE181,ZRE18#..E,G,N

RED M.M.,3R3

 1
69211-02320J0

ZWE182..E;NRE181,ZRE18#..E,G,N

BLUE ME.,8T7

 1
69211-02320A0

ZWE182..E;NRE181,ZRE18#..E,G,N

WHITE PEARL CS.,070

 1
69211-02320B0

ZWE182..E;NRE181,ZRE18#..E,G,N

SILVER ME.,1D4

 1
69211-02320C0

ZWE182..E;NRE181,ZRE18#..E,G,N

ATTITUDE BLACK MC.,218

 1
69211-02320E0

ZWE182..E;NRE181,ZRE18#..E,G,N

ORANGE ME.,4R8

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69212-02170B0

ZWE182..E;NRE181,ZRE18#..E,G,N

SILVER ME.,1D4

 1
69212-02170C0

ZWE182..E;NRE181,ZRE18#..E,G,N

ATTITUDE BLACK MC.,218

 1
69212-02170D0

ZWE182..E;NRE181,ZRE18#..E,G,N

RED M.M.,3R3

 1
69212-02170B1

ZRE18#..E,G,N

GRAY ME.,1G3

 1
69212-02170A0

ZWE182..E;NRE181,ZRE18#..E,G,N

WHITE PEARL CS.,070

 1
69212-02170E0

ZWE182..E;NRE181,ZRE18#..E,G,N

ORANGE ME.,4R8

 1
69212-02170J0

ZWE182..E;NRE181,ZRE18#..E,G,N

BLUE ME.,8T7

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242-02210

ZRE181;ZRE182..6F

LH

 1
69241-02220

ZRE181;ZRE182..6F

RH

 1
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-02220

ZRE181;ZRE182..6F

LH

 1
69241-02230

ZRE181;ZRE182..6F

RH

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D020

ZRE181;ZRE182..6F

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-02290

ZRE181;ZRE182..6F

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-02290

ZRE181;ZRE182..6F

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-02390

ZRE181;ZRE182..6F

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-02390

ZRE181;ZRE182..6F

 1
Common parts
69296-0R010
90148-50003
90148-60083
90148-C0006
90159-40202
90167-C0009
90189-C0001
