ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )NRE181,ZRE18#

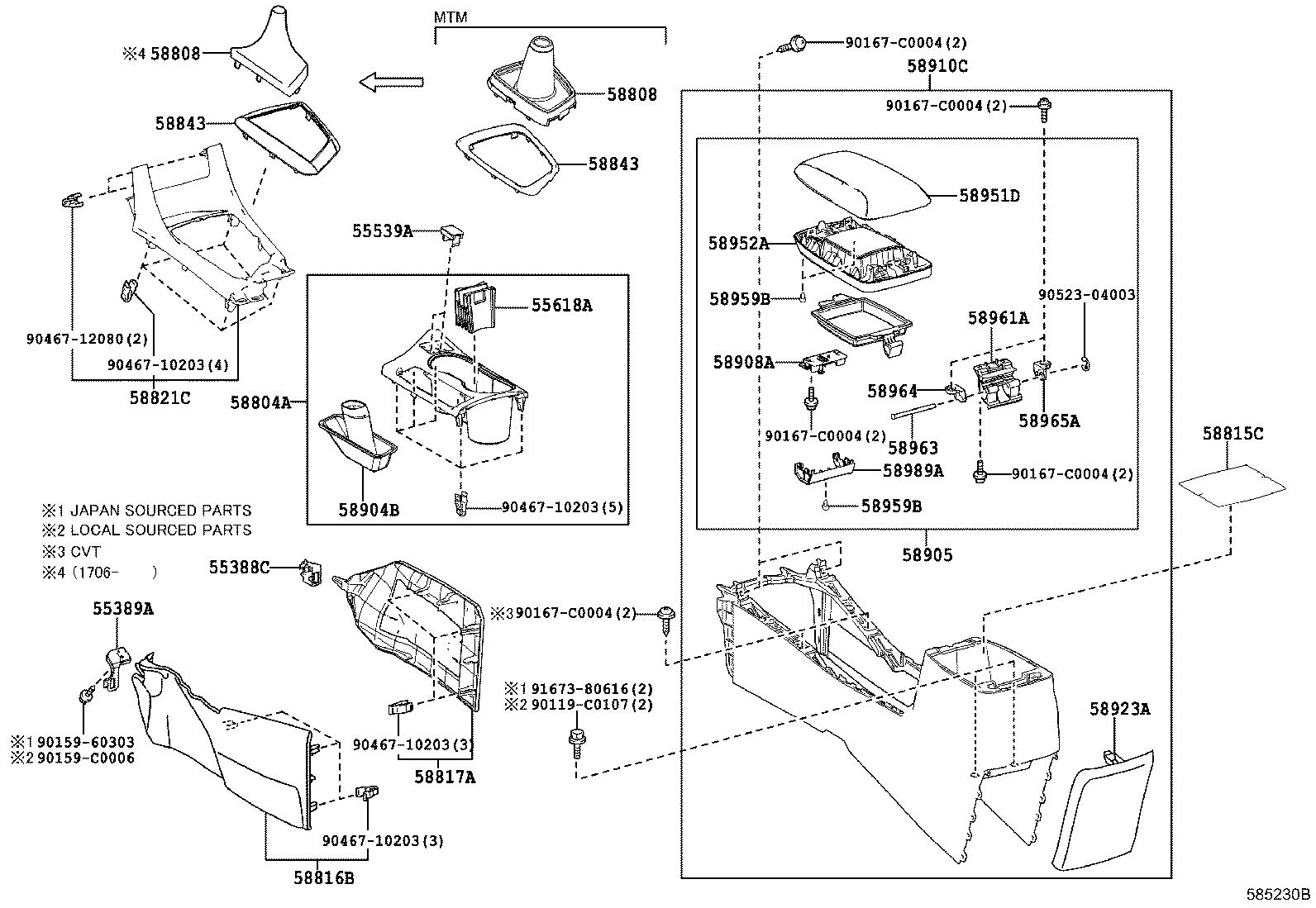

Click highlighted areas on diagram

diagram 55388C 55389A 55539A 55618A 58804A 58808 58808 58815C 58816B 58817A 58821C 58843 58843 58904B 58905 58908A 58910C 58923A 58951D 58952A 58959B 58959B 58961A 58963 58964 58965A 58989A 90119C0107 9015960303 90159C0006 90167C0004 90167C0004 90167C0004 90167C0004 90167C0004 9046710203 9046710203 9046710203 9046710203 9046712080 9052304003 9167380616
Part # Description Qty Price
55388C - BRACKET, CONSOLE MOUNTING, RH
55388-02190

ZRE181;ZRE182..6F

 1
55389A - BRACKET, CONSOLE MOUNTING, LH
55389-02170

ZRE181;ZRE182..6F

 1
55539A - COVER, SPARE SWITCH HOLE
55539-0D100C0

NRE181,ZRE182..6F;ZRE181,ZWE182..E,G,N

BLACK,TRIM0#,2#

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-02300C0

NRE181,ZRE18#,ZWE182..E,G,N

BLACK,TRIM0#,2#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-02450C0

ZWE182..G;ZRE18#..E,G

BLACK,TRIM0#,2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-02460C0

NRE181,ZRE18#..MTM

BLACK,TRIM0#,2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-02460C0

NRE181,ZRE18#..MTM

BLACK,TRIM0#,2#

 1
58815C - CARPET, CONSOLE BOX
58815-02380

ZRE181;ZRE182..6F

 1
58816B - INSERT, CONSOLE BOX
58816-02290C0

ZRE18#..E,G,N

BLACK,TRIM0#,2#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-02290C0

ZRE18#..E,G,N

BLACK,TRIM0#,2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-02880C0

NRE181,ZRE18#..E,G,N

BLACK,TRIM0#,2#

 1
58843 - BEZEL, SHIFTING HOLE
58843-02790

ZRE18#..MTM..(E,G)

 1
58843 - BEZEL, SHIFTING HOLE
58843-02790

ZRE18#..MTM..(E,G)

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-02350C0

NRE181,ZRE18#,ZWE182..E,G,N

BLACK,TRIM0#,2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02C80C2

ZWE182..E;NRE181,ZRE18#..E,G,N

BLACK,TRIM0#

 1
58905-02C80C1

ZWE182..E;NRE181,ZRE18#..E,G,N

IVORY/R080,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-02200

ZRE181;ZRE182..6F

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-02641C1

ZRE18#..E,G,N

BLACK/BLACK,TRIM2#

 1
58910-02641C2

ZRE18#..E,G,N

BLACK/IVORY/R080,TRIM0#

 1
58923A - PANEL, CONSOLE REAR END
58923-02300C0

ZRE182..6F

R&D SEAT,BLACK,TRIM2#

 1
58923-02300C0

NRE181,ZRE18#,ZWE182..E,G,N

BLACK,TRIM0#,2#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02B60A0

ZRE181;ZRE182..6F

IVORY/R080,TRIM01

 1
58951-02B60C0

ZRE181;ZRE182..6F

BLACK,TRIM20

 1
58951-02B70C0

ZRE182..6F

R&D SEAT,BLACK,TRIM2#

 1
58952A - DOOR, CONSOLE COMPARTMENT, INNER
58952-02520C0

ZRE182..6F

R&D SEAT,BLACK,TRIM2#

 1
58952-02520C0

NRE181,ZRE18#,ZWE182..E,G,N

BLACK,TRIM0#,2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

ZRE181;ZRE182..6F

 3
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

ZRE181;ZRE182..6F

 3
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-02220

ZRE181;ZRE182..6F

 1
58963 - SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58963-02180

ZRE181;ZRE182..6F

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-02400

ZRE181;ZRE182..6F

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-02410

ZRE181;ZRE182..6F

 1
58989A - RETAINER, CONSOLE BOX
58989-02250C0

ZRE182..6F

R&D SEAT,BLACK,TRIM2#

 1
58989-02250C0

NRE181,ZRE18#,ZWE182..E,G,N

BLACK,TRIM0#,2#

 1
Common parts
90119-C0107
90159-60303
90159-C0006
90167-C0004
90467-10203
90467-12080
90523-04003
91673-80616
