ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1408- )NRE181,ZRE18#

Click highlighted areas on diagram

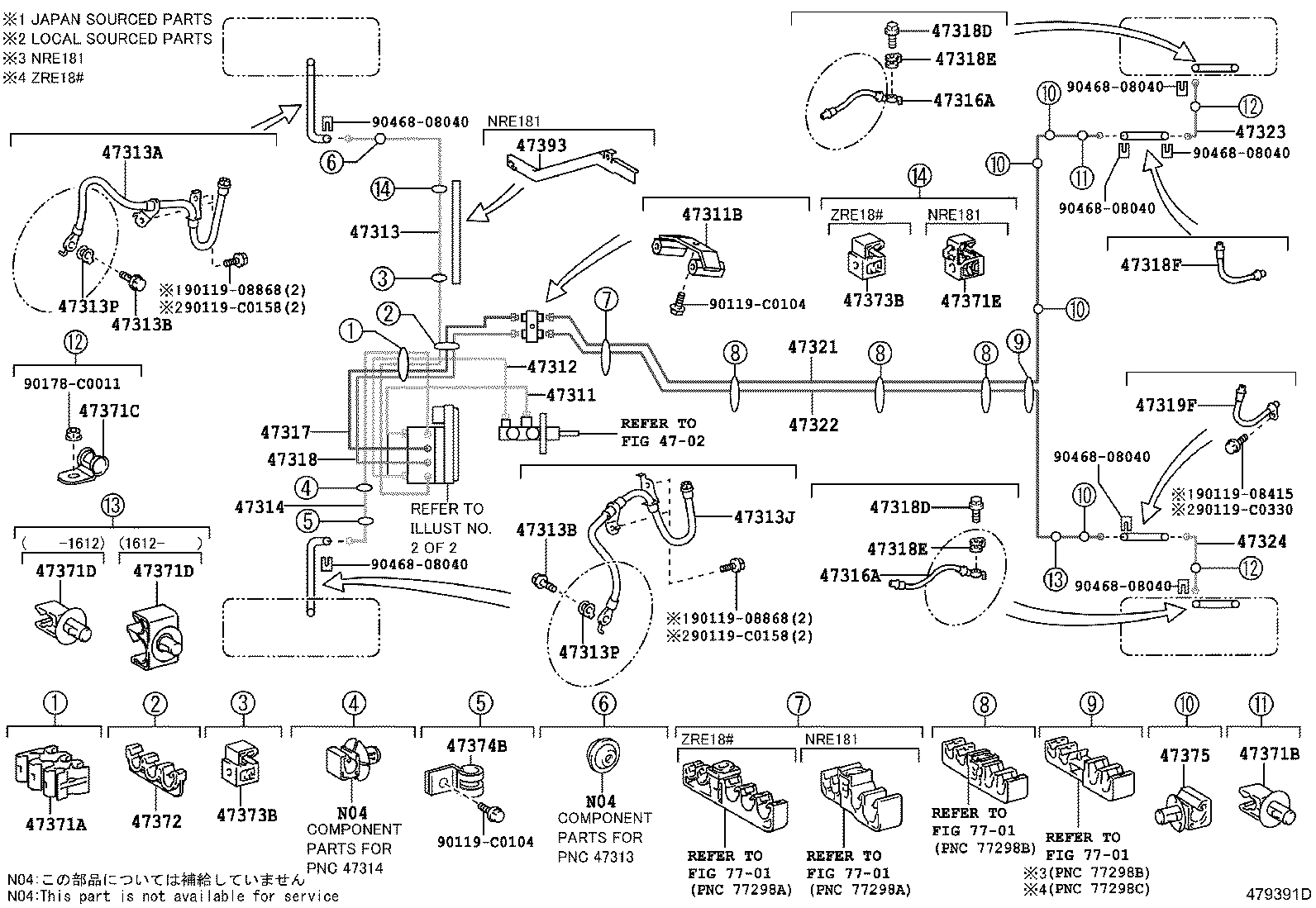

BRAKE TUBE

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47316A 47316A 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47371A 47371B 47371C 47371D 47371D 47371E 47372 47373B 47373B 47374B 47375 47393 7701 7701 7701 7701 9011908415 9011908868 9011908868 90119C0104 90119C0104 90119C0158 90119C0158 90119C0330 90178C0011 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-02B90

ZRE182

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-C0001

ZRE181;ZRE182..6F

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-02A60

ZRE182

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-02C20

ZRE182

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-C2049

ZRE181;ZRE182..6F

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-C0001

ZRE181;ZRE182..6F

(L)

 2
90401-10058

ZRE181;ZRE182..6F

(J)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-C0001

ZRE181;ZRE182..6F

(L)

 2
90401-10058

ZRE181;ZRE182..6F

(J)

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-C2050

ZRE181;ZRE182..6F

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZRE181;ZRE182..6F

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZRE181;ZRE182..6F

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-02B50

ZRE182

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-C2052

ZRE181;ZRE182..6F

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-C2052

ZRE181;ZRE182..6F

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-02A90

ZRE182

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-02B10

ZRE182

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZRE181;ZRE182..6F

(J)

 2
90401-C0001

ZRE181;ZRE182..6F

(L)

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ZRE181;ZRE182..6F

(J)

 2
90401-C0001

ZRE181;ZRE182..6F

(L)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZRE181;ZRE182..6F

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ZRE181;ZRE182..6F

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-C2051

ZRE181;ZRE182..6F

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-C2053

ZRE181;ZRE182..6F

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-02540

ZRE18#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-02540

ZRE18#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0F010

ZRE18#

 1
47323-02200

ZRE181;ZRE182..6F

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-02210

ZRE181;ZRE182..6F

 1
47324-0F010

ZRE18#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00933

ZRE182..6F

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-C1002

NRE181,ZRE18#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90461-C0003

ZRE18#

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90949-C1002

ZRE18#

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-C1002

ZRE18#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-C1004

ZRE18#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-C1001

ZRE181;ZRE182..6F

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90949-C1001

ZRE181;ZRE182..6F

 2
47374B - CLAMP, BRAKE TUBE, NO.4
90461-10781

ZRE181;ZRE182..6F

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-C1003

NRE181,ZRE18#

 4
Common parts
90119-08415
90119-08868
90119-C0104
90119-C0158
90119-C0330
90178-C0011
90468-08040
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1408- )NRE181,ZRE182

Click highlighted areas on diagram

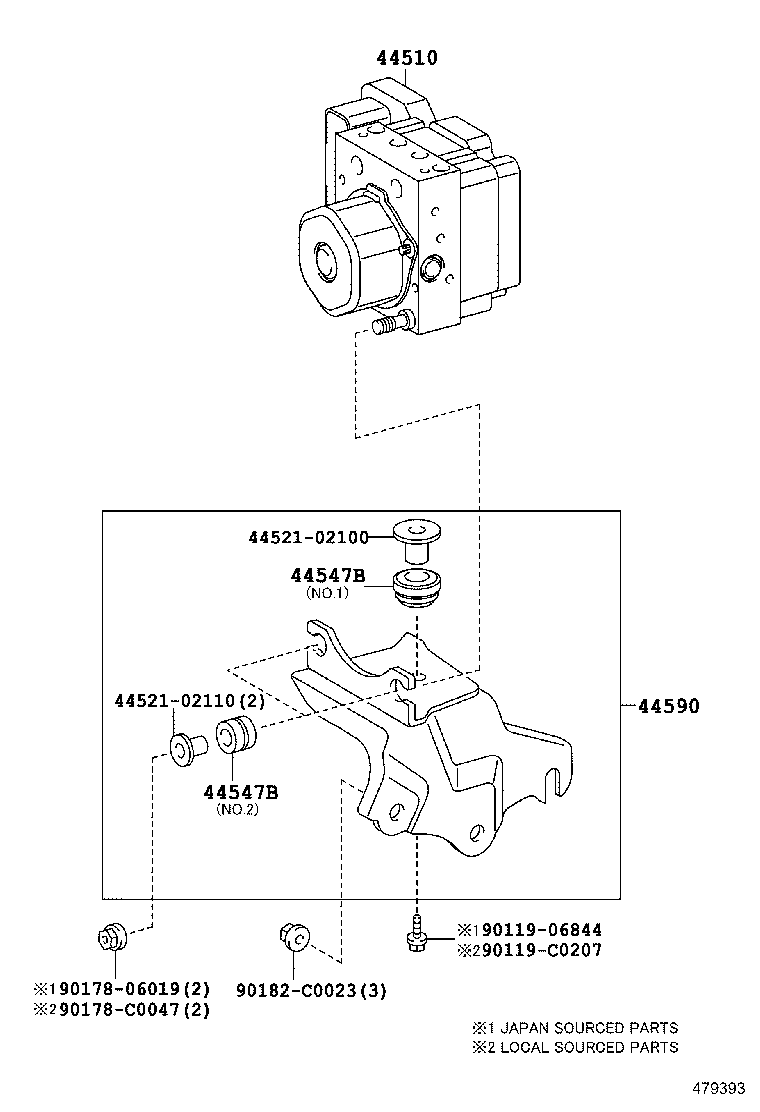

BRAKE ACTUATOR

diagram 44510 4452102100 4452102110 44547B 44547B 44590 9011906844 90119C0207 9017806019 90178C0047 90182C0023
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-02830

ZRE182..6F

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-02020

ZRE181;ZRE182..6F

NO.1:REFER ILLUST.

 1
44547-02060

ZRE181;ZRE182..6F

NO.2:REFER ILLUST.

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-02020

ZRE181;ZRE182..6F

NO.1:REFER ILLUST.

 1
44547-02060

ZRE181;ZRE182..6F

NO.2:REFER ILLUST.

 2
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-02410

NRE181,ZRE182

 1
Common parts
44521-02100
44521-02110
90119-06844
90119-C0207
90178-06019
90178-C0047
90182-C0023
