ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )NRE181,ZRE18#

Click highlighted areas on diagram

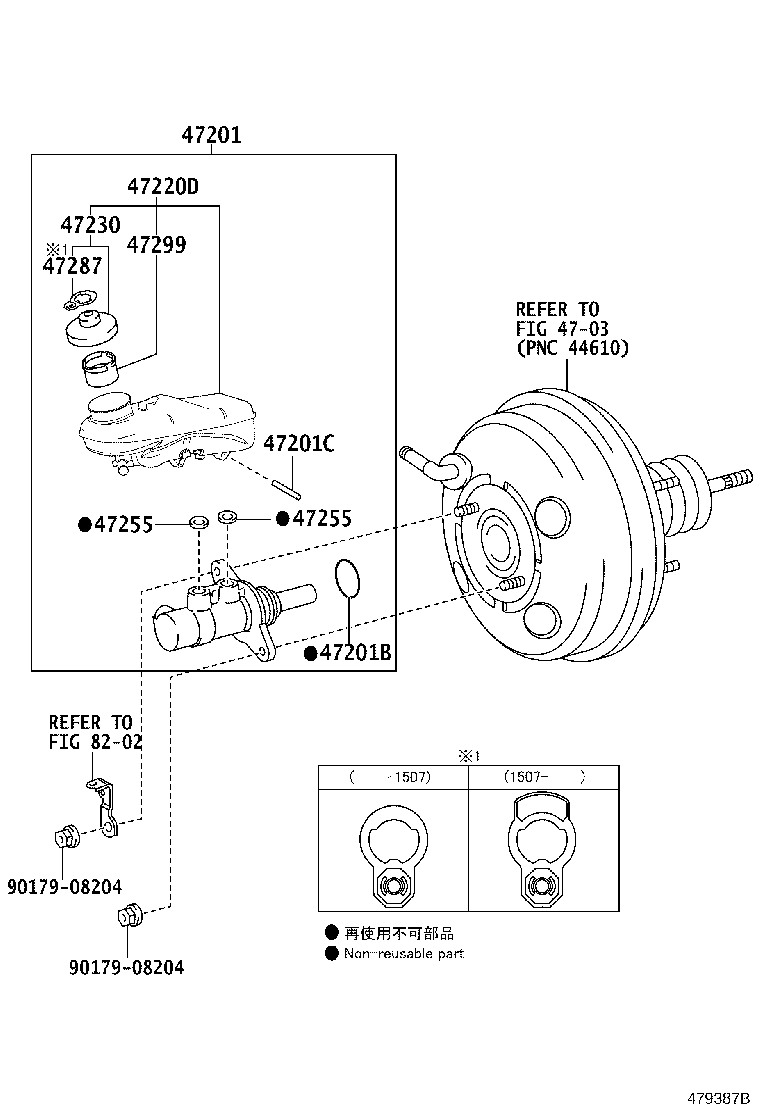

diagram 4703 47201 47201B 47201C 47220D 47230 47255 47255 47287 47299 8202 9017908204 9017908204
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-02850

NRE181,ZRE182..6F

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90016-AH902

ZRE181;ZRE182..6F

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803

ZRE181;ZRE182..6F

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-02410

NRE181,ZRE18#..MTM

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-02260

ZRE18#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90016-AT002

ZRE181;ZRE182..6F

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90016-AT002

ZRE181;ZRE182..6F

 2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

ZRE18#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

ZRE181;ZRE182..6F

 1
Common parts
90179-08204
Linked diagrams
4703
8202
