ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )

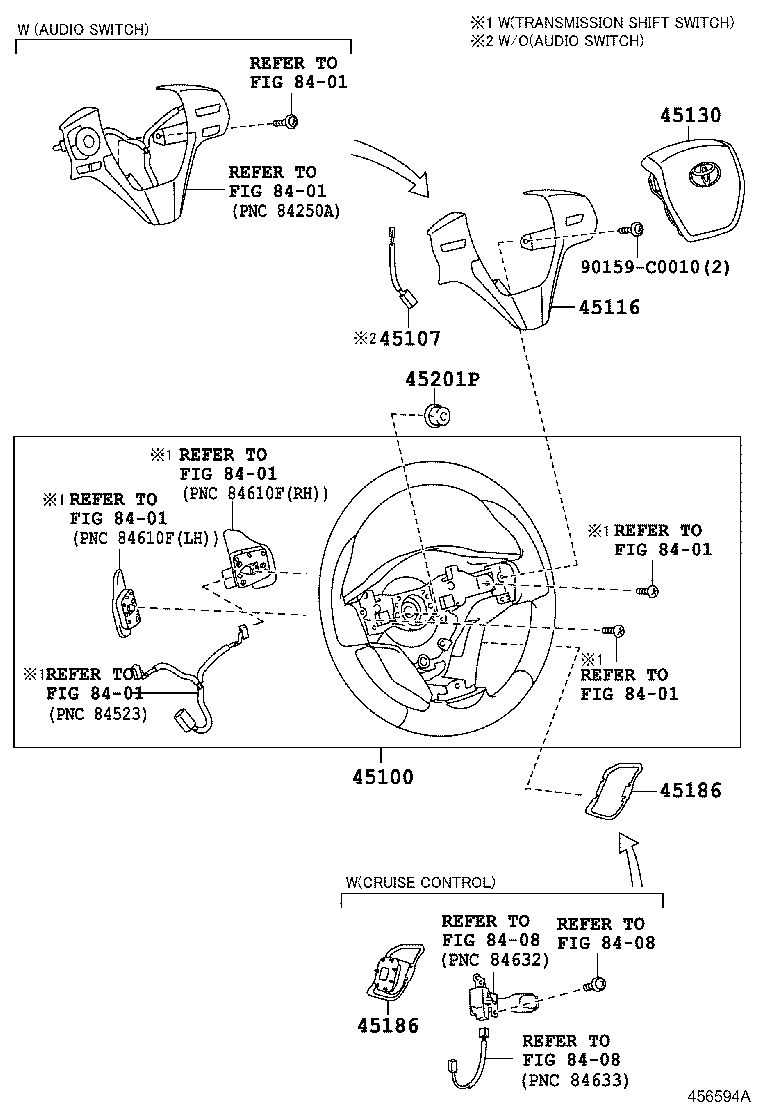

Click highlighted areas on diagram

diagram 45100 45107 45116 45130 45186 45186 45201P 8401 8401 8401 8401 8401 8401 8401 8408 8408 8408 90159C0010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-02T80C0

ZRE182..6F

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

 1
45130 - BUTTON ASSY, HORN
45130-02670C0

NRE181,ZRE18#,ZWE182..E,G,N

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02180C0

NRE181,ZRE18#,ZWE182..E,G,N

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02180C0

NRE181,ZRE18#,ZWE182..E,G,N

BLACK,TRIM0#,2#

 1
45201P - NUT, STEERING WHEEL SET
90178-C0025

ZRE181;ZRE182..6F

 1
Common parts
90159-C0010
Linked diagrams
8401
8408
