ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )ZRE182

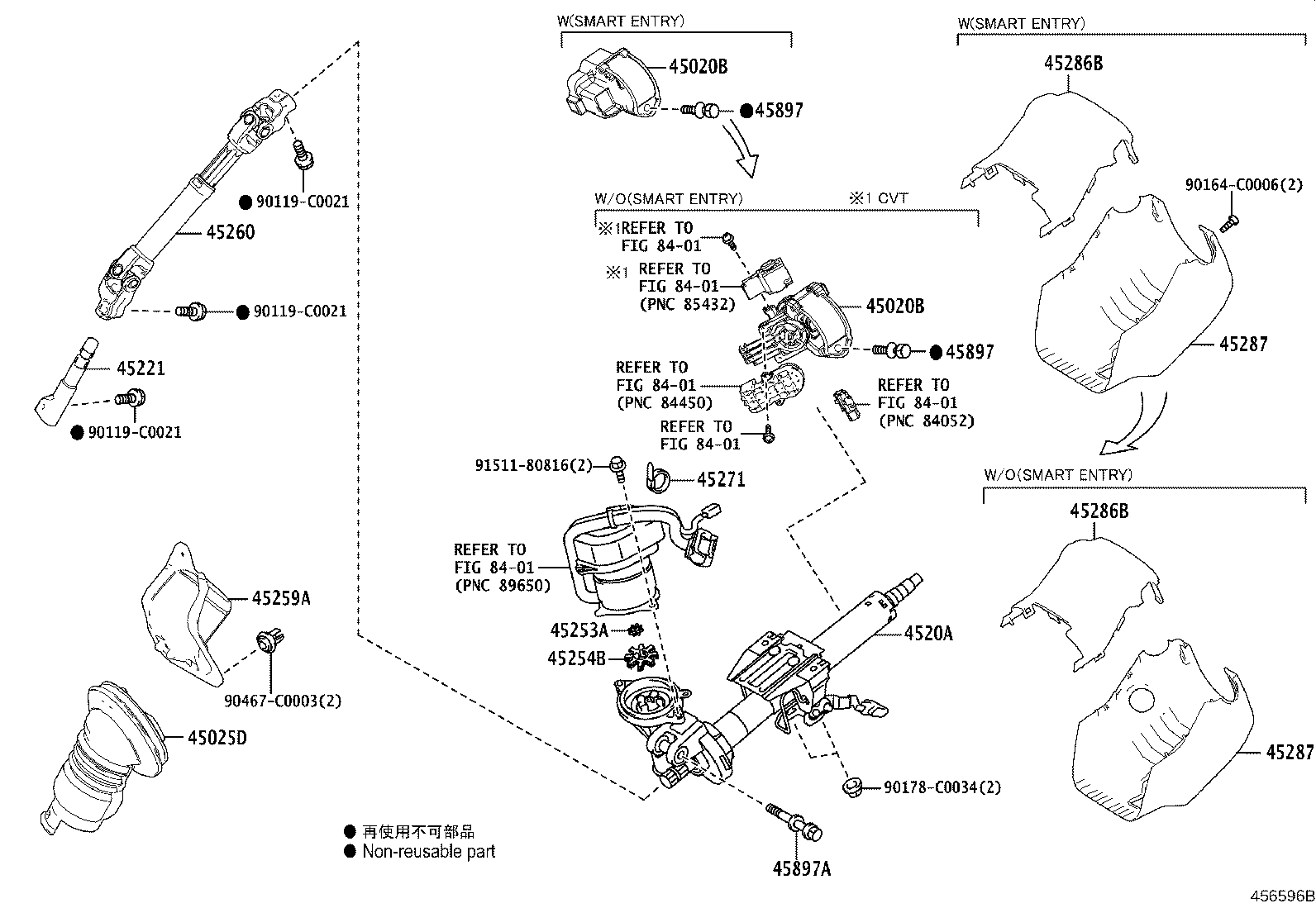

Click highlighted areas on diagram

diagram 45020B 45020B 45025D 4520A 45221 45253A 45254B 45259A 45260 45271 45286B 45286B 45287 45287 45897 45897 45897A 8401 8401 8401 8401 8401 8401 90119C0021 90119C0021 90119C0021 90164C0006 90178C0034 90467C0003 9151180816
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-02470

NRE181,ZRE18#..MTM

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45280-02470

NRE181,ZRE18#..MTM

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0F050

ZRE181;ZRE182..6F

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02340

ZRE182..6F

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-02170

ZRE181;ZRE182..6F

 1
45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT
45253-28130

ZRE182..6F

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

ZRE182..6F

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-0F070

ZRE181;ZRE182..6F

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02260

ZRE181;ZRE182..6F

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52040

ZRE182..6F

 1
45286B - COVER, STEERING COLUMN, UPR
45286-02570C0

NRE181,ZRE18#..E,G,N

BLACK,TRIM0#,2#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-02570C0

NRE181,ZRE18#..E,G,N

BLACK,TRIM0#,2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-02570C0

ZRE18#..E,G,N

BLACK,TRIM0#,2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-02570C0

ZRE18#..E,G,N

BLACK,TRIM0#,2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ZRE181;ZRE182..6F

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ZRE181;ZRE182..6F

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

ZRE18#

 1
90119-10981

ZRE181;ZRE182..6F

(J)

 1
90119-C0427

ZRE181;ZRE182..6F

(L)

 1
Common parts
90119-C0021
90164-C0006
90178-C0034
90467-C0003
91511-80816
Linked diagrams
8401
