ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )1ZRFE,2ZRFE,8ZRFXE

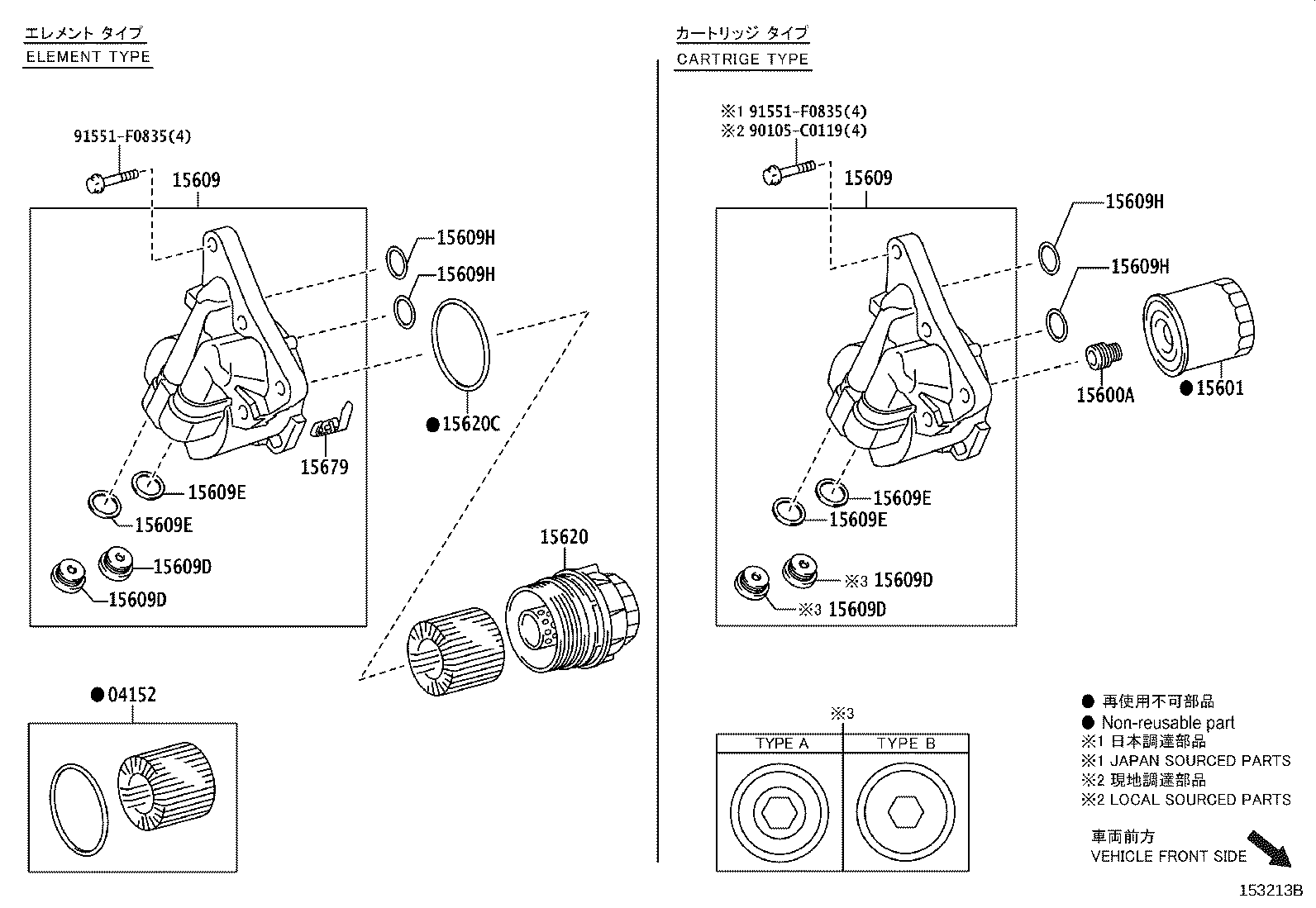

Click highlighted areas on diagram

diagram 04152 15600A 15601 15609 15609 15609D 15609D 15609D 15609D 15609E 15609E 15609E 15609E 15609H 15609H 15609H 15609H 15620 15620C 15679 90105C0119 91551F0835 91551F0835
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-37010

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 1
15600A - UNION(FOR OIL FILTER)
90904-04006

2ZRFE,8ZRFXE..ZRE182,ZWE182

CARTRIGE TYPE

 1
15601 - FILTER SUB-ASSY, OIL
90915-CA003

2ZRFE,8ZRFXE..ZRE182,ZWE182

(L),CARTRIGE TYPE

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-37041

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 1
15609-0T010

2ZRFE,8ZRFXE..ZRE182,ZWE182

(L),CARTRIGE TYPE

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-37041

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 1
15609-0T010

2ZRFE,8ZRFXE..ZRE182,ZWE182

(L),CARTRIGE TYPE

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20012

2ZRFE,8ZRFXE..ZRE182,ZWE182

TYPE B,CARTRIGE TYPE

 2
90341-20002

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20012

2ZRFE,8ZRFXE..ZRE182,ZWE182

TYPE B,CARTRIGE TYPE

 2
90341-20002

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20012

2ZRFE,8ZRFXE..ZRE182,ZWE182

TYPE B,CARTRIGE TYPE

 2
90341-20002

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20012

2ZRFE,8ZRFXE..ZRE182,ZWE182

TYPE B,CARTRIGE TYPE

 2
90341-20002

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
90430-20018

2ZRFE,8ZRFXE..ZRE182,ZWE182

CARTRIGE TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
90430-20018

2ZRFE,8ZRFXE..ZRE182,ZWE182

CARTRIGE TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
90430-20018

2ZRFE,8ZRFXE..ZRE182,ZWE182

CARTRIGE TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
90430-20018

2ZRFE,8ZRFXE..ZRE182,ZWE182

CARTRIGE TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
90301-C0033

2ZRFE,8ZRFXE..ZRE182,ZWE182

(L),CARTRIGE TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
90301-C0033

2ZRFE,8ZRFXE..ZRE182,ZWE182

(L),CARTRIGE TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
90301-C0033

2ZRFE,8ZRFXE..ZRE182,ZWE182

(L),CARTRIGE TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 2
90301-C0033

2ZRFE,8ZRFXE..ZRE182,ZWE182

(L),CARTRIGE TYPE

 2
15620 - CAP ASSY, OIL FILTER
15620-37010

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-69011

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 1
15679 - CLIP, OIL FILTER BRACKET
15679-37011

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 1
15679-37010

1ZRFE,2ZRFE..ZRE18#

ELEMENT TYPE

 1
Common parts
90105-C0119
91551-F0835
