ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )1ZRFE,2ZRFE

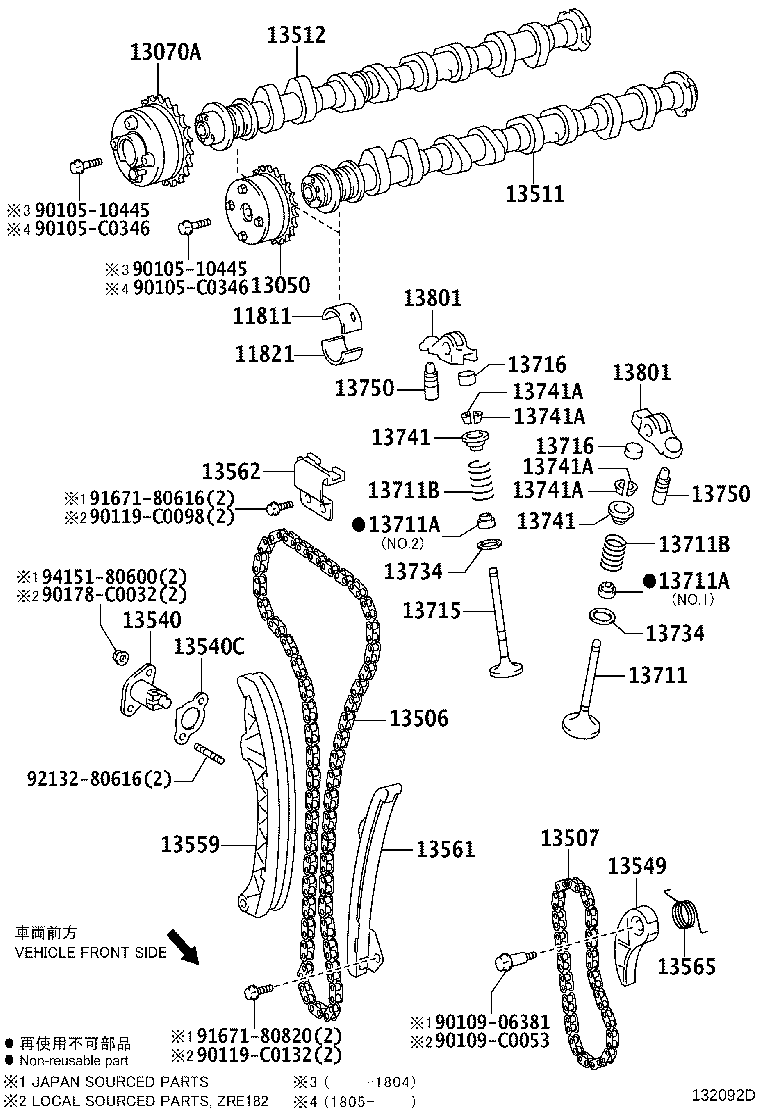

Click highlighted areas on diagram

diagram 11811 11821 13050 13070A 13506 13507 13511 13512 13540 13540C 13549 13559 13561 13562 13565 13711 13711A 13711A 13711B 13711B 13715 13716 13716 13734 13734 13741 13741 13741A 13741A 13741A 13741A 13750 13750 13801 13801 9010510445 9010510445 90105C0346 90105C0346 9010906381 90109C0053 90119C0098 90119C0132 90178C0032 9167180616 9167180820 9213280616 9415180600
Part # Description Qty Price
11811 - BEARING, CAMSHAFT, NO.1
11811-37010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 2
11811-0T010

2ZRFE..ZRE182..6F

*265

 2
11821 - BEARING, CAMSHAFT, NO.2
11821-37010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 2
11821-0T010

2ZRFE..ZRE182..6F

*265

 2
13050 - GEAR ASSY, CAMSHAFT TIMING
13050-37060

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13050-0T060

2ZRFE..ZRE182..6F

*265

 1
13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST
13070-0T050

2ZRFE..ZRE182..6F

*265

 1
13070-37020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13506 - CHAIN SUB-ASSY
13506-0T090

2ZRFE..ZRE182..6F

 1
13506-37070

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13507 - CHAIN SUB-ASSY, NO.2
13507-28010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13507-0H020

2ZRFE..ZRE182..6F

*265

 1
13511 - CAMSHAFT
13501-0T021

2ZRFE..ZRE182..6F

*265

 1
13501-37011

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

(J),*119

 1
13501-0T030

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

(L),*119

 1
13512 - CAMSHAFT, NO.2
13502-37010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

(J)

 1
13502-0T020

2ZRFE..ZRE182..6F

*265

 1
13502-0T030

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

(L),*119

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-37030

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13540-0T011

2ZRFE..ZRE182..6F

 1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-0T010

2ZRFE..ZRE182..6F

 1
13552-37010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13549 - PLATE, CHAIN TENSIONER
13549-37010

1ZRFE,2ZRFE..ZRE18#

*119

 1
13549-0T010

2ZRFE..ZRE182..6F

*265

 1
13549-37020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-37050

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13559-37010

1ZRFE,2ZRFE..ZRE18#

*119

 1
13559-0T010

2ZRFE..ZRE182..6F

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-37020

1ZRFE,2ZRFE..ZRE18#

*119

 1
13561-37050

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13561-0T010

2ZRFE..ZRE182..6F

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-37010

1ZRFE,2ZRFE..ZRE18#

*119

 1
13562-0T010

2ZRFE..ZRE182..6F

 1
13562-37020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13565 - SPRING, CHAIN DAMPER
13565-37010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
13565-0T010

2ZRFE..ZRE182..6F

*265

 1
13711 - VALVE, INTAKE
13711-37020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 8
13711-0T030

2ZRFE..ZRE182..6F

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02101

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119,NO.1

 8
90913-T2003

2ZRFE..ZRE182..6F

NO.2

 8
90913-02112

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119,NO.2

 8
90913-T2001

2ZRFE..ZRE182..6F

NO.1

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02101

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119,NO.1

 8
90913-T2003

2ZRFE..ZRE182..6F

NO.2

 8
90913-02112

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119,NO.2

 8
90913-T2001

2ZRFE..ZRE182..6F

NO.1

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-C0008

2ZRFE,8ZRFXE..ZRE182,ZWE182

 16
90501-32072

1ZRFE,2ZRFE..ZRE18#

*119

 16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-C0008

2ZRFE,8ZRFXE..ZRE182,ZWE182

 16
90501-32072

1ZRFE,2ZRFE..ZRE18#

*119

 16
13715 - VALVE, EXHAUST
13715-0T030

2ZRFE..ZRE182..6F

 8
13715-37030

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 8
13716 - CAP, VALVE STEM
13716-0Y010

2ZRFE..ZRE182..6F

 16
13716-75020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 16
13716 - CAP, VALVE STEM
13716-0Y010

2ZRFE..ZRE182..6F

 16
13716-75020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 16
13734 - SEAT, VALVE SPRING
13734-0P020

2ZRFE..ZRE182..6F

 16
13734-62020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 16
13734 - SEAT, VALVE SPRING
13734-0P020

2ZRFE..ZRE182..6F

 16
13734-62020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 16
13741 - RETAINER, VALVE SPRING
13741-0Y020

2ZRFE,8ZRFXE..ZRE182,ZWE182

 16
13741-36010

1ZRFE,2ZRFE..ZRE18#

*119

 16
13741 - RETAINER, VALVE SPRING
13741-0Y020

2ZRFE,8ZRFXE..ZRE182,ZWE182

 16
13741-36010

1ZRFE,2ZRFE..ZRE18#

*119

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 32
90913-C3002

2ZRFE..ZRE182..6F

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 32
90913-C3002

2ZRFE..ZRE182..6F

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 32
90913-C3002

2ZRFE..ZRE182..6F

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 32
90913-C3002

2ZRFE..ZRE182..6F

 32
13750 - ADJUSTER ASSY, VALVE LASH
13750-21010

1ZRFE,2ZRFE..ZRE18#

*119

 16
13750-0T021

2ZRFE,8ZRFXE..ZRE182,ZWE182

 16
13750 - ADJUSTER ASSY, VALVE LASH
13750-21010

1ZRFE,2ZRFE..ZRE18#

*119

 16
13750-0T021

2ZRFE,8ZRFXE..ZRE182,ZWE182

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-36020

1ZRFE,2ZRFE..ZRE18#

*119

 16
13801-0P020

2ZRFE,8ZRFXE..ZRE182,ZWE182

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-36020

1ZRFE,2ZRFE..ZRE18#

*119

 16
13801-0P020

2ZRFE,8ZRFXE..ZRE182,ZWE182

 16
Common parts
90105-10445
90105-C0346
90109-06381
90109-C0053
90119-C0098
90119-C0132
90178-C0032
91671-80616
91671-80820
92132-80616
94151-80600
