ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )2ZRFE..6F

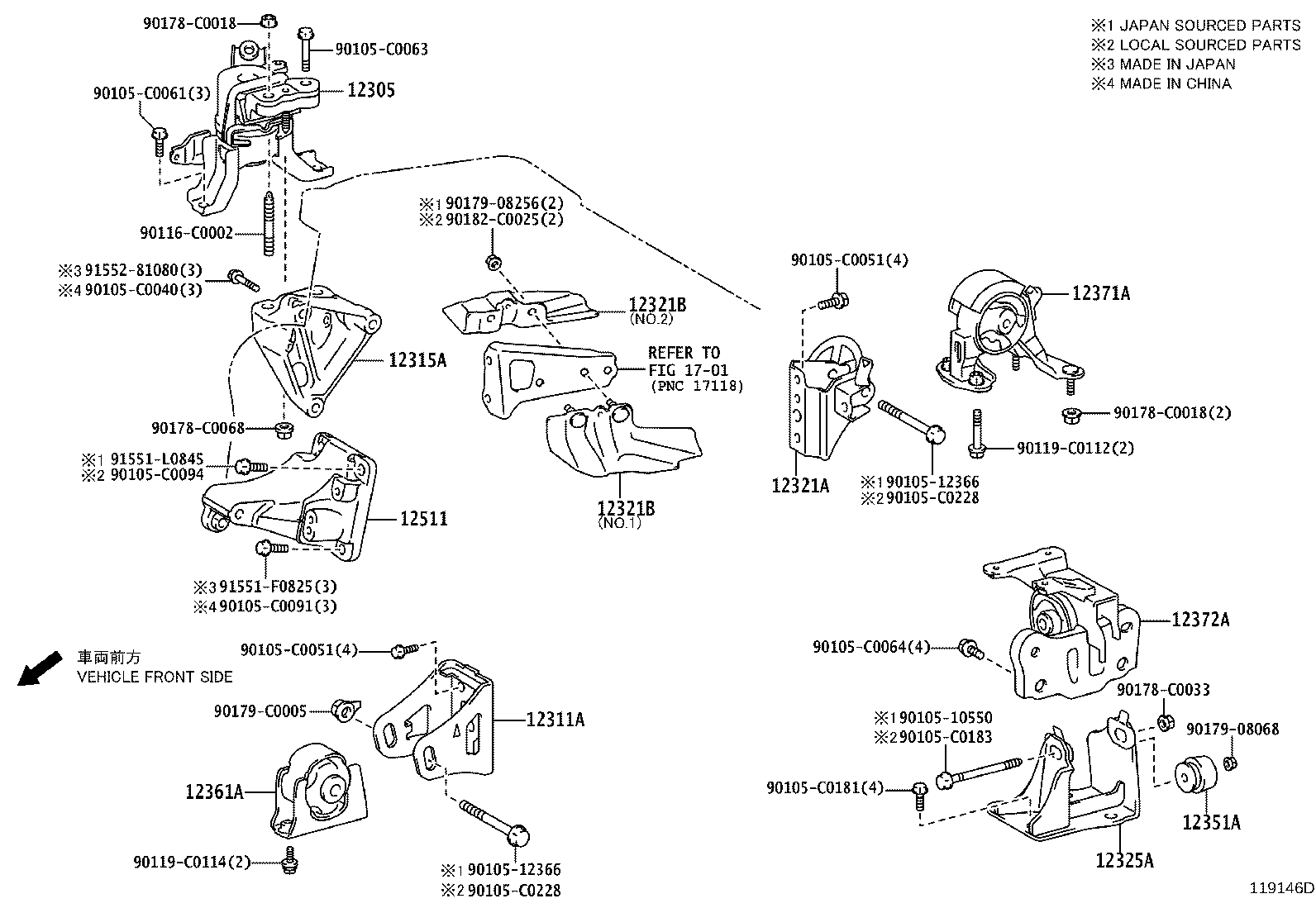

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12321B 12321B 12325A 12351A 12361A 12371A 12372A 12511 1701 9010510550 9010512366 9010512366 90105C0040 90105C0051 90105C0051 90105C0061 90105C0063 90105C0064 90105C0091 90105C0094 90105C0181 90105C0183 90105C0228 90105C0228 90116C0002 90119C0112 90119C0114 90178C0018 90178C0018 90178C0033 90178C0068 9017908068 9017908256 90179C0005 90182C0025 91551F0825 91551L0845 9155281080
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T250

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0T490

2ZRFE..ZRE182..6F;1ZRFE..ZRE181..CVT

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0T010

2ZRFE..ZRE182..6F

 1
12315-37030

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0T300

2ZRFE..ZRE182..6F

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-02071

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

NO.1

 1
43498-02141

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

NO.2

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-02071

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

NO.1

 1
43498-02141

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

NO.2

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0T300

2ZRFE..ZRE182..6F

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-0T010

2ZRFE..ZRE182..6F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0T360

1ZRFE,2ZRFE..ZRE18#..MTM

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0T450

1ZRFE,2ZRFE..ZRE18#..MTM

 1
12371-0T451

1ZRFE,2ZRFE..ZRE18#..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T520

2ZRFE..ZRE182..6F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-0T050

2ZRFE..ZRE182..6F

*265

 1
12501-37020

2ZRFE..ZRE182..6F

*119

 1
Common parts
90105-10550
90105-12366
90105-C0040
90105-C0051
90105-C0061
90105-C0063
90105-C0064
90105-C0091
90105-C0094
90105-C0181
90105-C0183
90105-C0228
90116-C0002
90119-C0112
90119-C0114
90178-C0018
90178-C0033
90178-C0068
90179-08068
90179-08256
90179-C0005
90182-C0025
91551-F0825
91551-L0845
91552-81080
Linked diagrams
1701
