ZRE182L-CEFGKC (2014)

Toyota Levin/Hybrid

Production Aug 2014 - Nov 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1408- )1ZRFE,2ZRFE

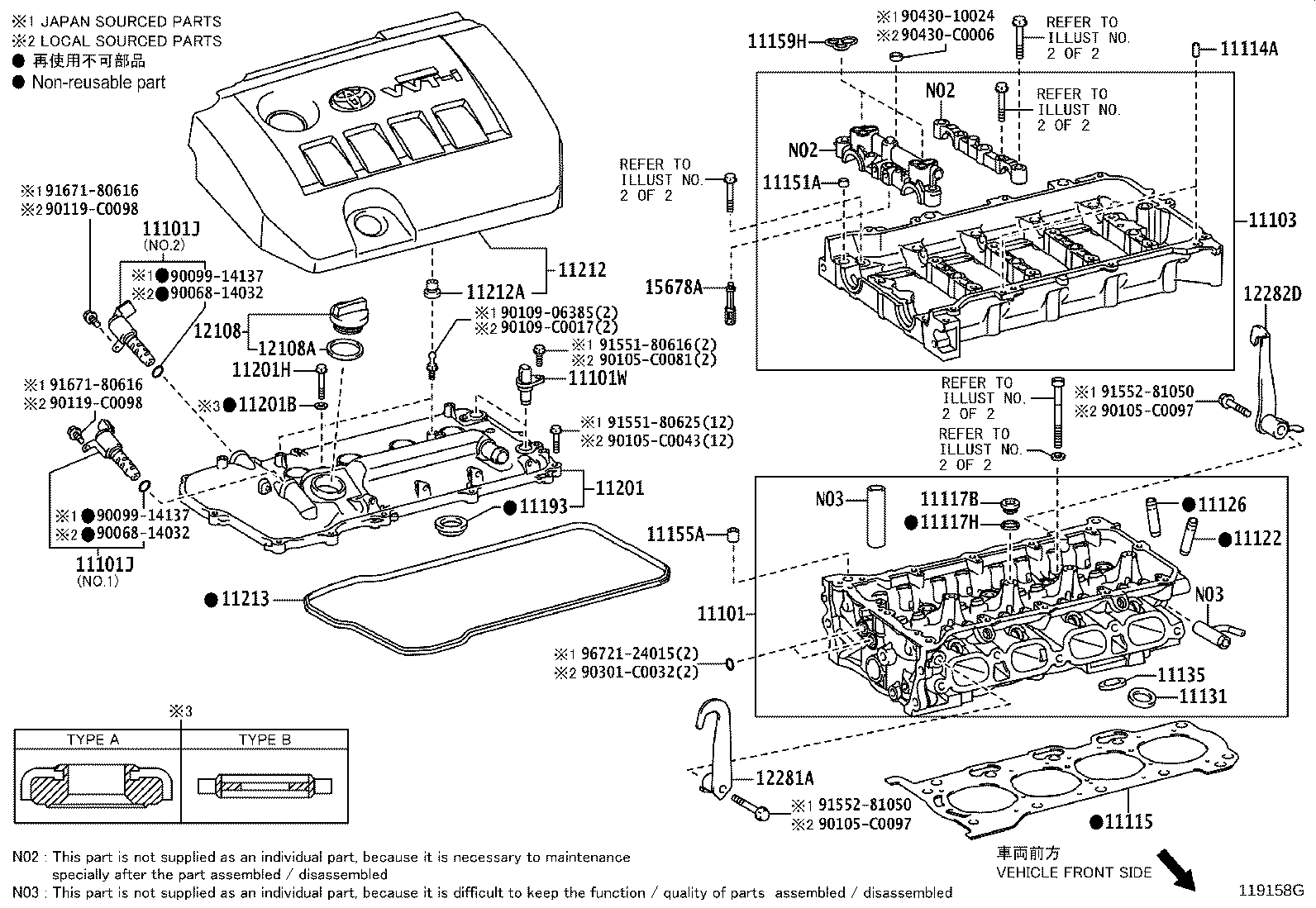

Click highlighted areas on diagram

diagram 11101 11101J 11101J 11101W 11103 11114A 11115 11117B 11117H 11122 11126 11131 11135 11151A 11155A 11159H 11193 11201 11201B 11201H 11212 11212A 11213 12108 12108A 12281A 12282D 15678A 9006814032 9006814032 9009914137 9009914137 90105C0043 90105C0081 90105C0097 90105C0097 9010906385 90109C0017 90119C0098 90119C0098 90301C0032 9043010024 90430C0006 9155180616 9155180625 9155281050 9155281050 9167180616 9167180616 9672124015
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39686

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
11101-09280

2ZRFE..ZRE182..6F

(L),*265

 1
11101-39686

2ZRFE..ZRE182..6F

(J),*265

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119,NO.2

 1
15330-0T040

2ZRFE..ZRE182..6F

*265,NO.2

 1
15330-37010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119,NO.1

 1
15330-0T030

2ZRFE..ZRE182..6F

*265,NO.1

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119,NO.2

 1
15330-0T040

2ZRFE..ZRE182..6F

*265,NO.2

 1
15330-37010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119,NO.1

 1
15330-0T030

2ZRFE..ZRE182..6F

*265,NO.1

 1
11101W - SENSOR, CRANK POSITION, NO.1
90919-05060

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 2
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-0T011

2ZRFE..ZRE182..6F

*265

 1
11103-37021

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
11114A - PIN, STRAIGHT
90250-06001

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

L=14,OD=6,*119

 2
90250-C0010

2ZRFE..ZRE182..6F

L=14,OD=6,*265

 2
11115 - GASKET, CYLINDER HEAD
11115-37061

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
11115-0T010

2ZRFE..ZRE182..6F

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 3
11117H - GASKET(FOR WATER HOLE)
90430-20004

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 3
11122 - BUSH, INTAKE VALVE GUIDE
11123-31050

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

O/S 0.05

 8
11122-31050

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11126-31030

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

STD

 8
11127-31030

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

O/S 0.05

 8
11131 - SEAT, INTAKE VALVE
11131-0T040

2ZRFE..ZRE182..6F

STD,*265

 8
11131-37040

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

STD,*119

 8
11132-37040

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

O/S 0.03,*119

 8
11131-37020

1ZRFE,2ZRFE..ZRE18#

STD,*119

 8
11132-37040

2ZRFE..ZRE182..6F

O/S 0.03,(L),*265,(J),*265

 8
11135 - SEAT, EXHAUST VALVE
11136-37040

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

O/S 0.03,*119

 8
11135-37020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

STD,*119

 8
11135-0T040

2ZRFE..ZRE182..6F

STD,*265

 8
11136-37040

2ZRFE..ZRE182..6F

O/S 0.03,(L),*265,(J),*265

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-13005

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

L=12.5,OD=8,*119

 10
90253-C0004

2ZRFE..ZRE182..6F

L=12.5,OD=8,*265

 10
11155A - PIN, RING W/HEAD
90253-12002

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 2
90253-C0002

2ZRFE..ZRE182..6F

*265

 2
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
11159-0T030

2ZRFE..ZRE182..6F

*265

 2
11159-37010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 2
11193 - GASKET, SPARK PLUG TUBE
11193-37020

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 4
11193-0T030

2ZRFE..ZRE182..6F

*265

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-0T020

2ZRFE..ZRE182..6F

*265

 1
11201-37022

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119T/P A:REF.ILLUST

 1
90210-C0002

2ZRFE..ZRE182..6F

*265

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90105-C0222

2ZRFE..ZRE182..6F

*265

 1
91551-80670

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
11212 - COVER, CYLINDER HEAD, NO.2
11212-0T032

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 1
11212A - CUSHION, CYLINDER HEAD COVER
90480-16049

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-37021

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
11213-0T010

2ZRFE..ZRE182

*265

 1
11213-37020

1ZRFE,2ZRFE..ZRE18#

*119

 1
11213-0T011

2ZRFE..ZRE182..6F

*265

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-0T010

2ZRFE..ZRE182..6F

*265

 1
12180-38010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 1
12281A - HANGER, ENGINE, NO.1
12281-37021

2ZRFE..ZRE182..6F

W/O(PAINTED)

 1
12281-0T020

2ZRFE..ZRE182..6F

W(PAINTED)

 1
12281-37021

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 1
12282D - HANGER, ENGINE, NO.2
12282-37011

2ZRFE..ZRE182..6F

W/O(PAINTED)

 1
12282-37011

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 1
12282-0T020

2ZRFE..ZRE182..6F

W(PAINTED)

 1
15678A - FILTER, OIL CONTROL VALVE
15678-0T020

2ZRFE..ZRE182..6F

*265

 1
15678-37010

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 1
15678-37010

2ZRFE..ZRE182

*265

 1
Common parts
90068-14032
90099-14137
90105-C0043
90105-C0081
90105-C0097
90109-06385
90109-C0017
90119-C0098
90301-C0032
90430-10024
90430-C0006
91551-80616
91551-80625
91552-81050
91671-80616
96721-24015

ILLUST NO. 2 OF 2(1408- )1ZRFE,2ZRFE

Click highlighted areas on diagram

diagram 11101A 11101B 11151H 9010508455 9010508486 90105C0167 90119C0005
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-C2003

2ZRFE..ZRE182..6F

 10
90910-02166

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-C0002

2ZRFE..ZRE182..6F

 10
90201-10344

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

*119

 10

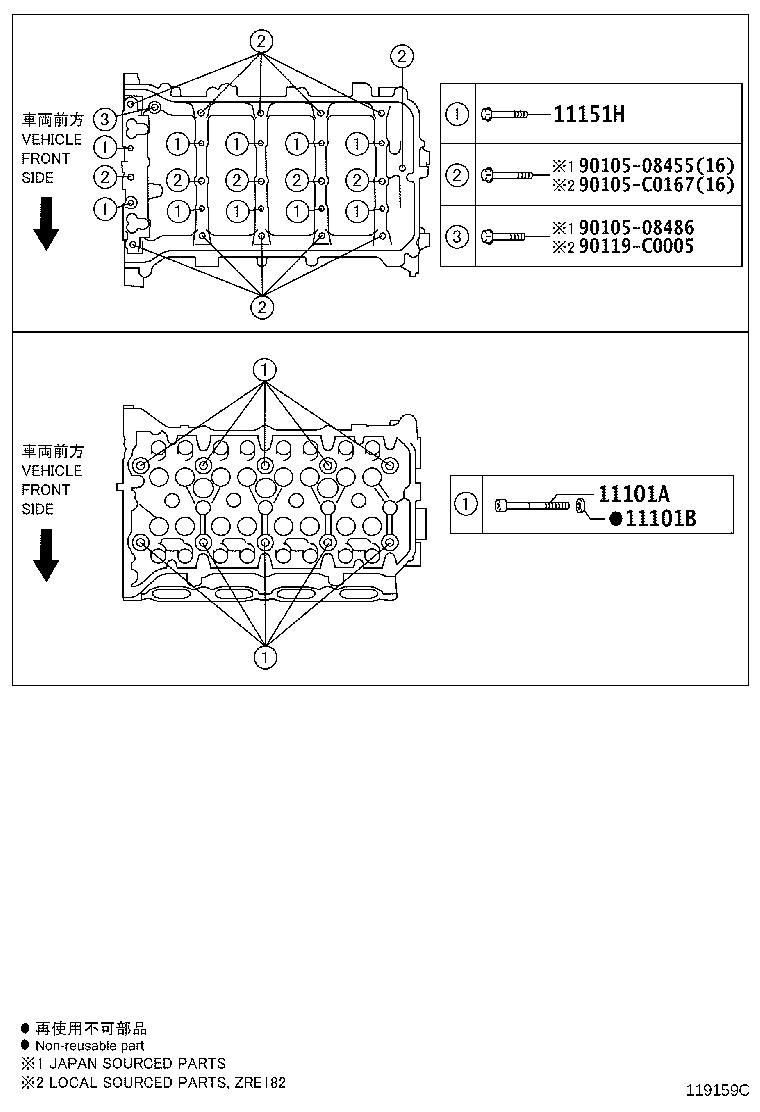

11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
90119-07009

1ZRFE..ZRE181;2ZRFE..ZRE182..6F

 10
Common parts
90105-08455
90105-08486
90105-C0167
90119-C0005
