NRE210L-CEXNZC (2019)

Toyota Levin/Hybrid

Production Jun 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1906- )CVT

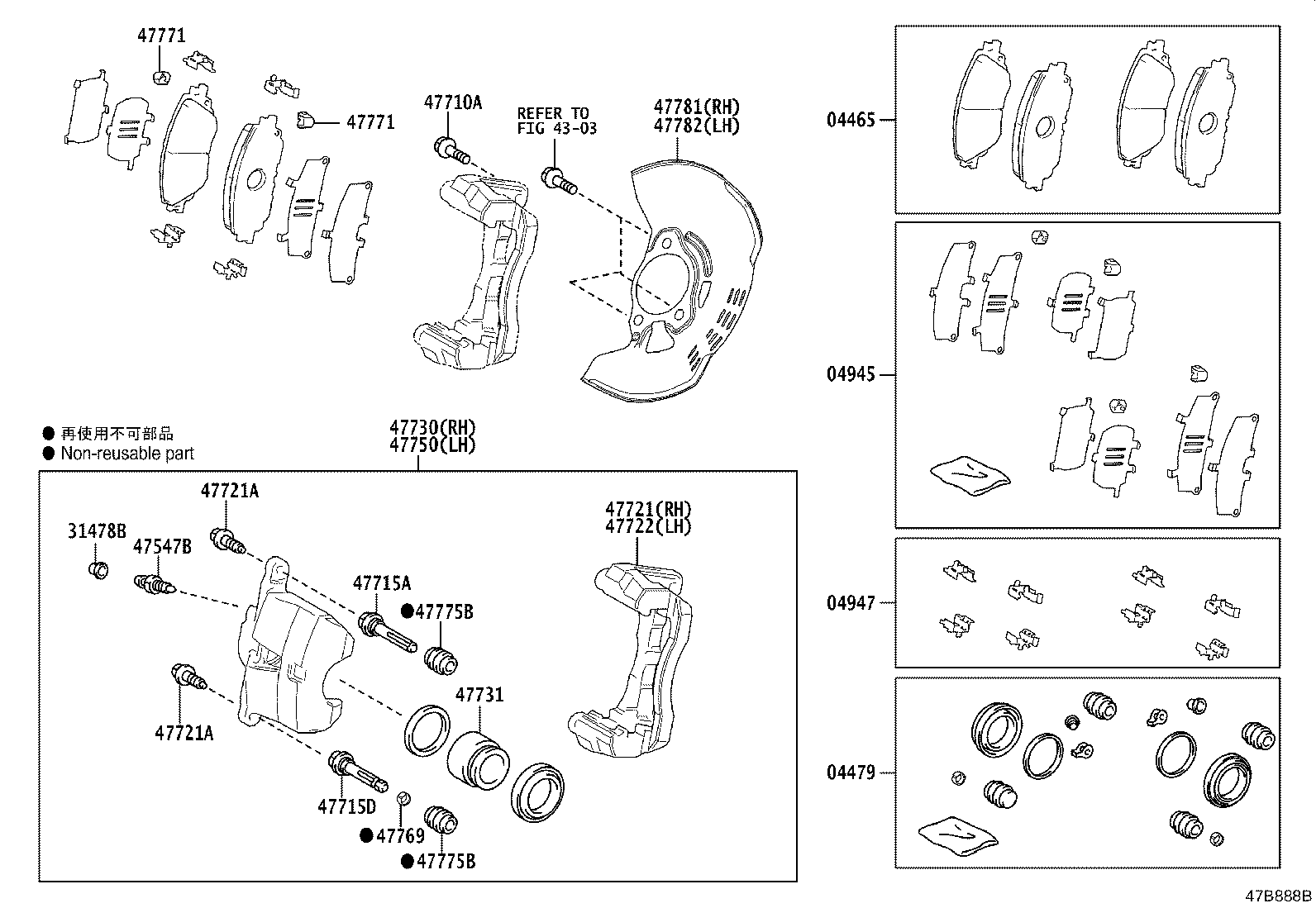

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47750 47769 47771 47771 47775B 47775B 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-02480

MZEA11,NRE210,ZWE211..CVT

MARK ADVICS VC084H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-02420

MZEA11,NRE210,ZWE211..CVT

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-02270

MZEA11,NRE210,ZWE211..CVT

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-02170

MZEA11,NRE210,ZWE211..CVT

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0N010

MZEA11,NRE210,ZWE211..CVT

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

MZEA11,NRE210,ZWE211..CVT

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

MZEA11,NRE210,ZWE211..CVT

*12-1.25PX29.5-23,(J)

 4
90105-C0021

MZEA11,NRE210,ZWE211..CVT

*12-1.25PX29.5-23,(L)

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-0D210

MZEA11,NRE210,ZWE211..CVT

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47714-0R020

MZEA11,NRE210,ZWE211..CVT

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-02640

MZEA11,NRE210,ZWE211..CVT

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90016-AA608

MZEA11,NRE210,ZWE211..CVT

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90016-AA608

MZEA11,NRE210,ZWE211..CVT

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-02540

MZEA11,NRE210,ZWE211..CVT

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-02640

MZEA11,NRE210,ZWE211..CVT

 1
47731 - PISTON, FRONT DISC BRAKE
47731-0D270

MZEA11,NRE210,ZWE211..CVT

 1
47731-0D270

NRE210,ZWE211

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-02540

MZEA11,NRE210,ZWE211..CVT

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-0P010

MZEA11,NRE210,ZWE211..CVT

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33380

MZEA11,NRE210,ZWE211..CVT

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33380

MZEA11,NRE210,ZWE211..CVT

 4
47775B - BOOT, BUSH DUST, NO.1
47775-06270

NRE210,ZWE211

 4
47775-06270

MZEA11,NRE210,ZWE211..CVT

 2
47775B - BOOT, BUSH DUST, NO.1
47775-06270

NRE210,ZWE211

 4
47775-06270

MZEA11,NRE210,ZWE211..CVT

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-F4040

MZEA11,NRE210,ZWE211..CVT

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-F4040

MZEA11,NRE210,ZWE211..CVT

 1
Linked diagrams
4303
