Toyota Levin/hybrid NRE210 ALTERNATOR

NRE210L-CEXGZC (2019)

Toyota Levin/Hybrid

Production Jun 2019 - Sep 9999

Engine 9NRFTS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

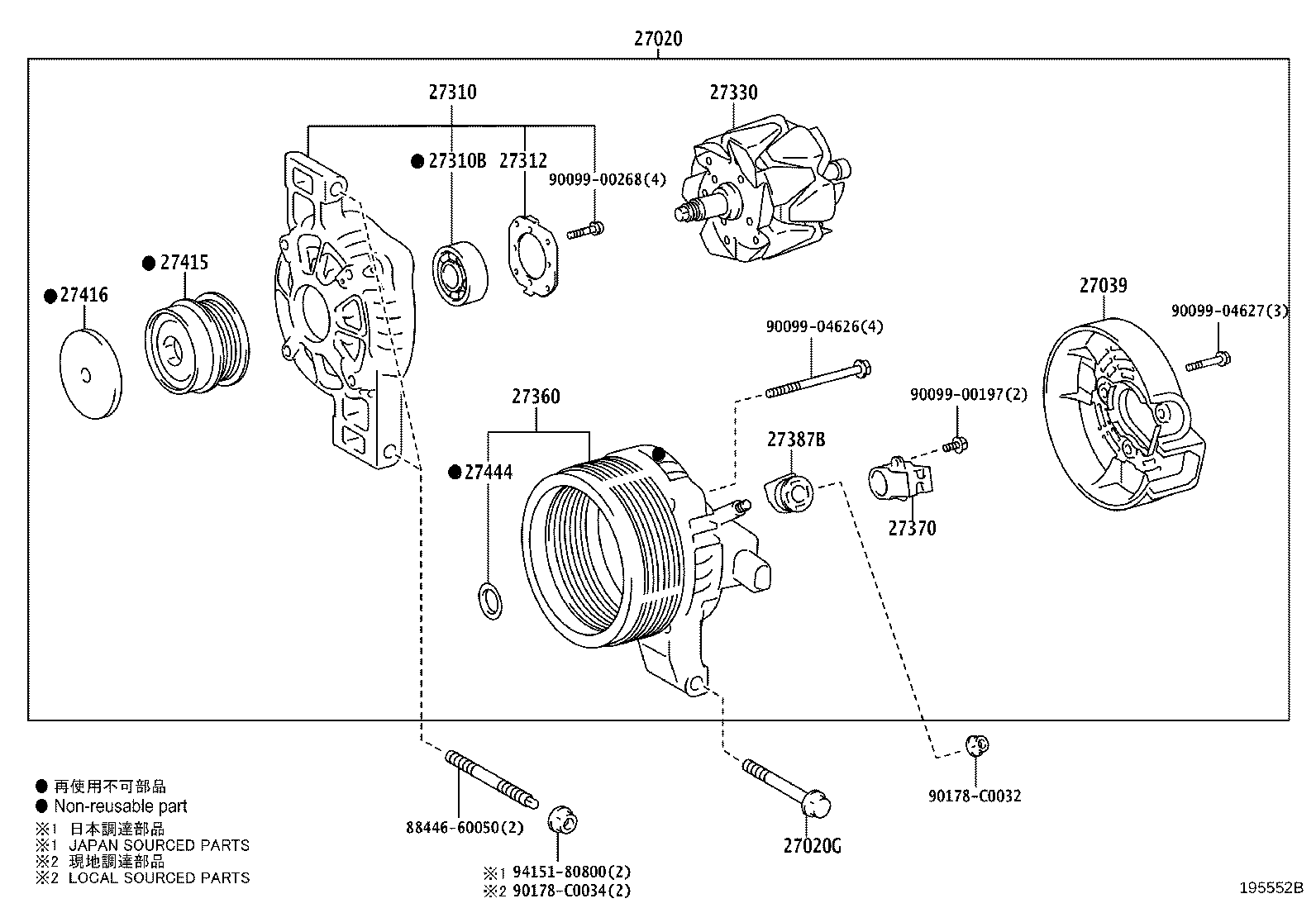

Click highlighted areas on diagram

12V 100A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0Y350	9NRFTS..NRE210 12V 100A	06/2019 - 12/2999	1
27020G - BOLT, NO.2(FOR ALTERNATOR)
90119-08C78	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-0C180	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0Y330	9NRFTS..NRE210	06/2019 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10051	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	07/2019 - 12/2999	1
90068-10050	9NRFTS..NRE210	06/2019 - 07/2019	1
27312 - PLATE, RETAINER
27312-0M070	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-0T260	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27360 - COIL ASSY, ALTERNATOR
27360-0Y330	9NRFTS..NRE210	06/2019 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0T030	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-0H110	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0Y100	9NRFTS..NRE210	06/2019 - 12/2999	1
27416 - CAP, ALTERNATOR PULLEY
27416-0Y010	9NRFTS..NRE210	06/2019 - 12/2999	1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-0Y180	9NRFTS..NRE210	06/2019 - 11/2019	1
Common parts
88446-60050
90099-00197
90099-00268
90099-04626
90099-04627
90178-C0032
90178-C0034
94151-80800

Click highlighted areas on diagram

12V 100A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0Y350	9NRFTS..NRE210 12V 100A	06/2019 - 12/2999	1
27020G - BOLT, NO.2(FOR ALTERNATOR)
90119-08C78	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-0C180	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0Y330	9NRFTS..NRE210	06/2019 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10051	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	07/2019 - 12/2999	1
90068-10050	9NRFTS..NRE210	06/2019 - 07/2019	1
27312 - PLATE, RETAINER
27312-0M070	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-0T260	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27360 - COIL ASSY, ALTERNATOR
27360-0Y330	9NRFTS..NRE210	06/2019 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0T030	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27384 - WASHER
27384-0V170	9NRFTS..NRE210	11/2019 - 12/2999	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-0H110	M15AFKS,9NRFTS..MZEA11,NRE210..CVT	06/2019 - 12/2999	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0Y100	9NRFTS..NRE210	06/2019 - 12/2999	1
27416 - CAP, ALTERNATOR PULLEY
27416-0Y010	9NRFTS..NRE210	06/2019 - 12/2999	1
Common parts
88446-60050
90099-00197
90099-00268
90099-04626
90099-04627
90178-C0032
90178-C0034
94151-80800
