NRE210L-CEXGZC (2019)

Toyota Levin/Hybrid

Production Jun 2019 - Sep 9999
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

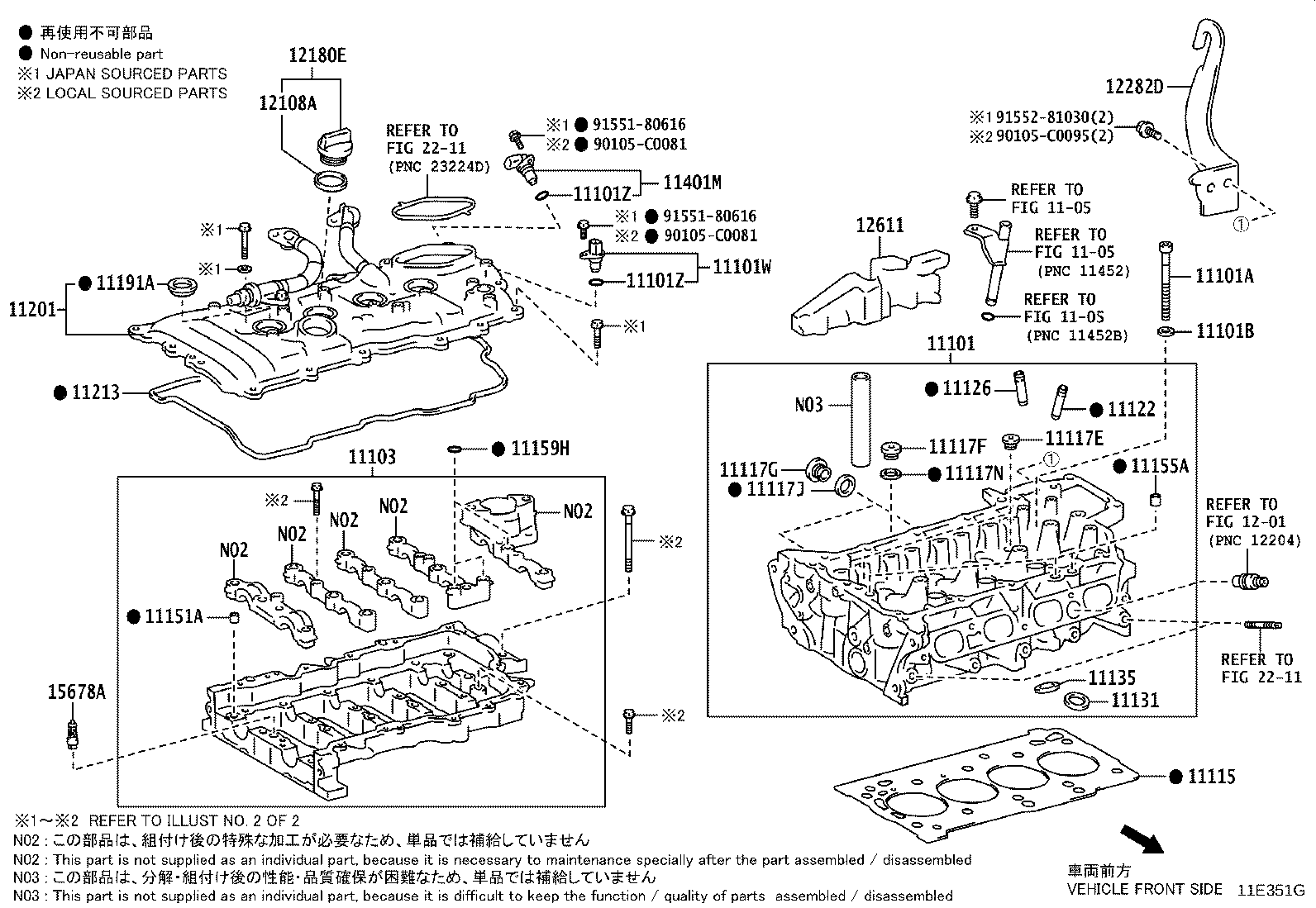

ILLUST NO. 1 OF 2(1906- )9NRFTS

Click highlighted areas on diagram

diagram 1105 1105 1105 11101 11101A 11101B 11101W 11101Z 11101Z 11103 11115 11117E 11117F 11117G 11117J 11117N 11122 11126 11131 11135 11151A 11155A 11159H 11191A 11201 11213 11401M 1201 12108A 12180E 12282D 12611 15678A 2211 2211 90105C0081 90105C0081 90105C0095 9155180616 9155180616 9155281030
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-09661

9NRFTS..NRE210

*615

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-C2002

9NRFTS..NRE210

 10
90910-C2002

9NRFTS..NRE210

*615

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11034

9NRFTS..NRE210

*615

 10
90201-11034

9NRFTS..NRE210

 10
11101W - SENSOR, CRANK POSITION, NO.1
90919-C5001

9NRFTS..NRE210

*615

 1
90919-C5001

9NRFTS..NRE210

 1
11101Z - O RING, CAM POSITION SENSOR
90301-14016

9NRFTS..NRE210

*615

 2
90301-14016

9NRFTS..NRE210

 2
11101Z - O RING, CAM POSITION SENSOR
90301-14016

9NRFTS..NRE210

*615

 2
90301-14016

9NRFTS..NRE210

 2
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-0Y090

9NRFTS..NRE210

*615

 1
11103-0Y090

9NRFTS..NRE210

 1
11115 - GASKET, CYLINDER HEAD
11115-0Y050

9NRFTS..NRE210

 1
11115-0Y050

9NRFTS..NRE210

*615

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-C0012

9NRFTS..NRE210

 2
90341-C0012

9NRFTS..NRE210

*615

 2
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-20002

9NRFTS..NRE210

*615

 1
90341-20002

9NRFTS..NRE210

 1
11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3
90341-C0017

9NRFTS..NRE210

 2
90341-C0017

9NRFTS..NRE210

*615

 2
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-C0009

9NRFTS..NRE210

 2
90430-C0009

9NRFTS..NRE210

*615

 2
11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
90430-C0001

9NRFTS..NRE210

 1
90430-C0001

9NRFTS..NRE210

*615

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-47010

9NRFTS..NRE210

STD,*615

 8
11123-47010

9NRFTS..NRE210

O/S 0.05,*615

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-47010

9NRFTS..NRE210

O/S 0.05,*615

 8
11122-47010

9NRFTS..NRE210

STD,*615

 8
11131 - SEAT, INTAKE VALVE
11131-0Y090

9NRFTS..NRE210

STD

 8
11132-47040

9NRFTS..NRE210

O/S 0.03,*615

 8
11131-0Y090

9NRFTS..NRE210

STD,*615

 8
11135 - SEAT, EXHAUST VALVE
11135-0Y060

9NRFTS..NRE210

STD

 8
11135-0Y060

9NRFTS..NRE210

STD,*615

 8
11136-47010

9NRFTS..NRE210

O/S 0.03,*615

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-C0004

9NRFTS..NRE210

L=12.5,OD=8,*615

 10
90253-C0004

9NRFTS..NRE210

L=12.5,OD=8

 10
11155A - PIN, RING W/HEAD
90253-C0002

9NRFTS..NRE210

*615

 3
90253-C0002

9NRFTS..NRE210

 3
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
90430-C0006

9NRFTS..NRE210

*615

 3
90430-C0006

9NRFTS..NRE210

 3
11191A - GASKET(FOR SPARK PLUG TUBE)
11193-0Y020

9NRFTS..NRE210

 4
11193-0Y020

9NRFTS..NRE210

*615

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-0Y010

9NRFTS..NRE210

 1
11210-0Y010

9NRFTS..NRE210

*615

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-0Y040

9NRFTS..NRE210

 1
11213-0Y040

9NRFTS..NRE210

*615

 1
11401M - SENSOR, CRANK POSITION, NO.2
90919-C5002

9NRFTS..NRE210

 1
90919-C5002

9NRFTS..NRE210

*615

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

9NRFTS..NRE210

*615

 1
90430-35001

9NRFTS..NRE210

 1
12180E - CAP ASSY, OIL FILLER
12180-0T010

9NRFTS..NRE210

*615

 1
12180-0T010

9NRFTS..NRE210

 1
12282D - HANGER, ENGINE, NO.2
12282-0Y070

9NRFTS..NRE210

*615

 1
12282-0Y070

9NRFTS..NRE210

 1
12611 - COVER, ENGINE, NO.1
12611-47110

9NRFTS..NRE210

 1
12611-47110

9NRFTS..NRE210

*615

 1
15678A - FILTER, OIL CONTROL VALVE
15678-0Y020

9NRFTS..NRE210

*615

 1
15678-0Y020

9NRFTS..NRE210

 1
Common parts
90105-C0081
90105-C0095
91551-80616
91552-81030
Linked diagrams
1105
1201
2211

ILLUST NO. 2 OF 2(1906- )9NRFTS

Click highlighted areas on diagram

diagram 11103A 11103A 11103A 11159A 11201B 90105C0043 9155180625
Part # Description Qty Price
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
90105-C0167

9NRFTS..NRE210

NO.2:REFER ILLUST.

 19
90119-C0469

9NRFTS..NRE210

NO.1:REFER ILLUST.

 5
90105-C0167

9NRFTS..NRE210

*615,NO.2:REFER ILL.

 19
90105-C0074

9NRFTS..NRE210

NO.3:REFER ILLUST.

 2
90105-C0074

9NRFTS..NRE210

*615,NO.3:REFER ILL.

 2
90119-C0469

9NRFTS..NRE210

*615,NO.1:REFER ILL.

 5
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
90105-C0167

9NRFTS..NRE210

NO.2:REFER ILLUST.

 19
90119-C0469

9NRFTS..NRE210

NO.1:REFER ILLUST.

 5
90105-C0167

9NRFTS..NRE210

*615,NO.2:REFER ILL.

 19
90105-C0074

9NRFTS..NRE210

NO.3:REFER ILLUST.

 2
90105-C0074

9NRFTS..NRE210

*615,NO.3:REFER ILL.

 2
90119-C0469

9NRFTS..NRE210

*615,NO.1:REFER ILL.

 5
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
90105-C0167

9NRFTS..NRE210

NO.2:REFER ILLUST.

 19
90119-C0469

9NRFTS..NRE210

NO.1:REFER ILLUST.

 5
90105-C0167

9NRFTS..NRE210

*615,NO.2:REFER ILL.

 19
90105-C0074

9NRFTS..NRE210

NO.3:REFER ILLUST.

 2
90105-C0074

9NRFTS..NRE210

*615,NO.3:REFER ILL.

 2
90119-C0469

9NRFTS..NRE210

*615,NO.1:REFER ILL.

 5
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-C0084

9NRFTS..NRE210

*615

 2
90105-C0084

9NRFTS..NRE210

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-C0003

9NRFTS..NRE210

*615

 2
90210-C0003

9NRFTS..NRE210

 2
Common parts
90105-C0043
91551-80625
