Toyota Levin/hybrid NRE210 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
GR
LEVIN/HYBRID
NRE210L-CEXEZC (2019)
5102 - SUSPENSION CROSSMEMBER & UNDER COVER

NRE210L-CEXEZC (2019)

Toyota Levin/Hybrid

Production Jun 2019 - Sep 9999

Engine 9NRFTS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

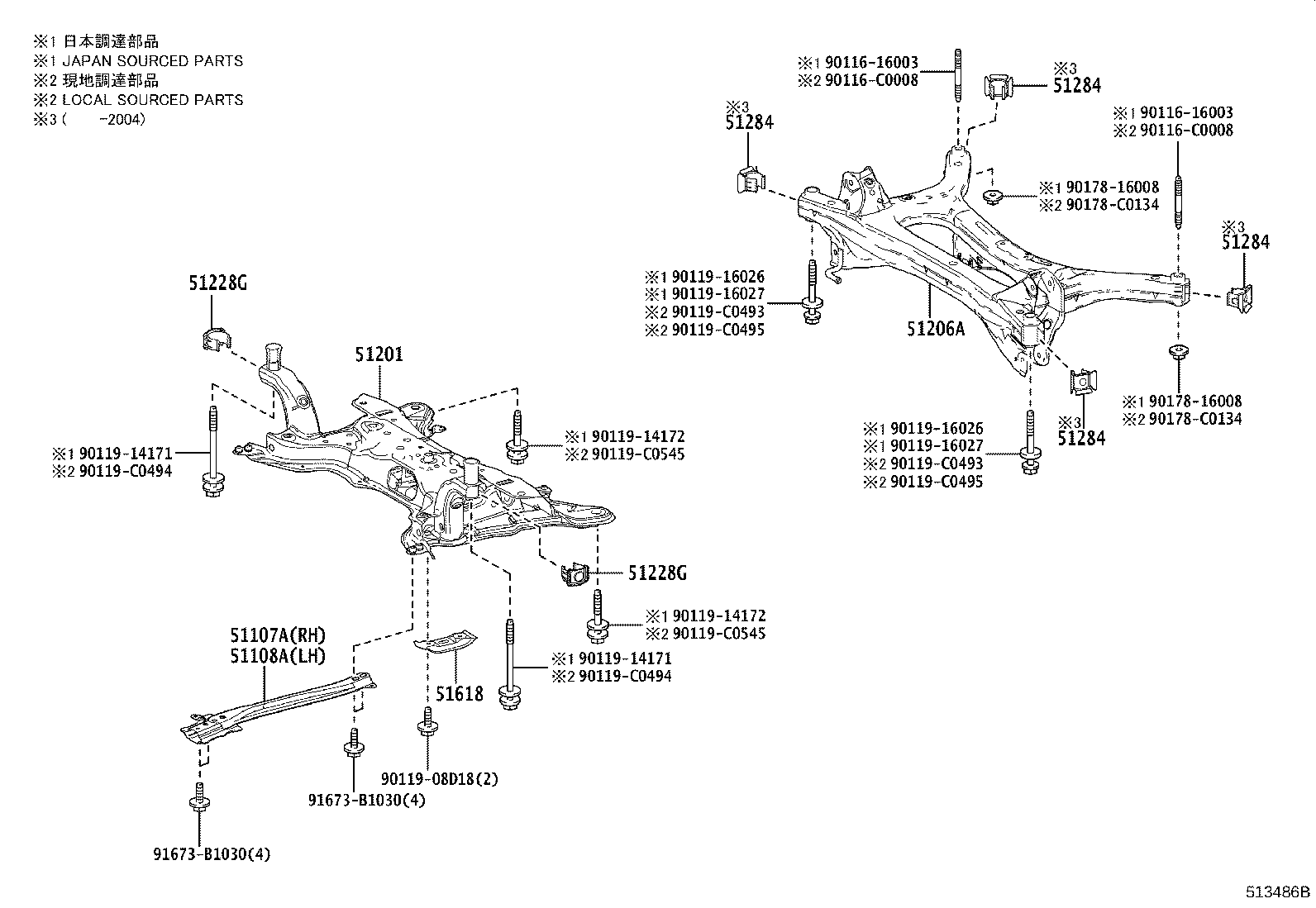

ILLUST NO. 1 OF 2(1906- )CVT

Click highlighted areas on diagram

SUSPENSION CROSSMEMBER

Part #	Description	Period	Qty
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-02060	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-02060	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02291	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-02150	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51228G - PLATE, FRONT SUSPENSION MEMBER
51228-F4040	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	2
51228G - PLATE, FRONT SUSPENSION MEMBER
51228-F4040	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	2
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-F4040	NRE210,ZWE211	06/2019 - 04/2020	4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-F4040	NRE210,ZWE211	06/2019 - 04/2020	4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-F4040	NRE210,ZWE211	06/2019 - 04/2020	4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-F4040	NRE210,ZWE211	06/2019 - 04/2020	4
51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH
51618-02050	NRE210..E SPORT PACKAGE	06/2019 - 12/2999	1
51618-02050	NRE210..E ROUGH ROAD AREA SPEC-WITHOUT(HIGHT UP)	06/2019 - 12/2999	1
51618-02050	NRE210,ZWE211	06/2019 - 12/2999	1
Common parts
90116-16003
90116-C0008
90119-08D18
90119-14171
90119-14172
90119-16026
90119-16027
90119-C0493
90119-C0494
90119-C0495
90119-C0545
90178-16008
90178-C0134
91673-B1030

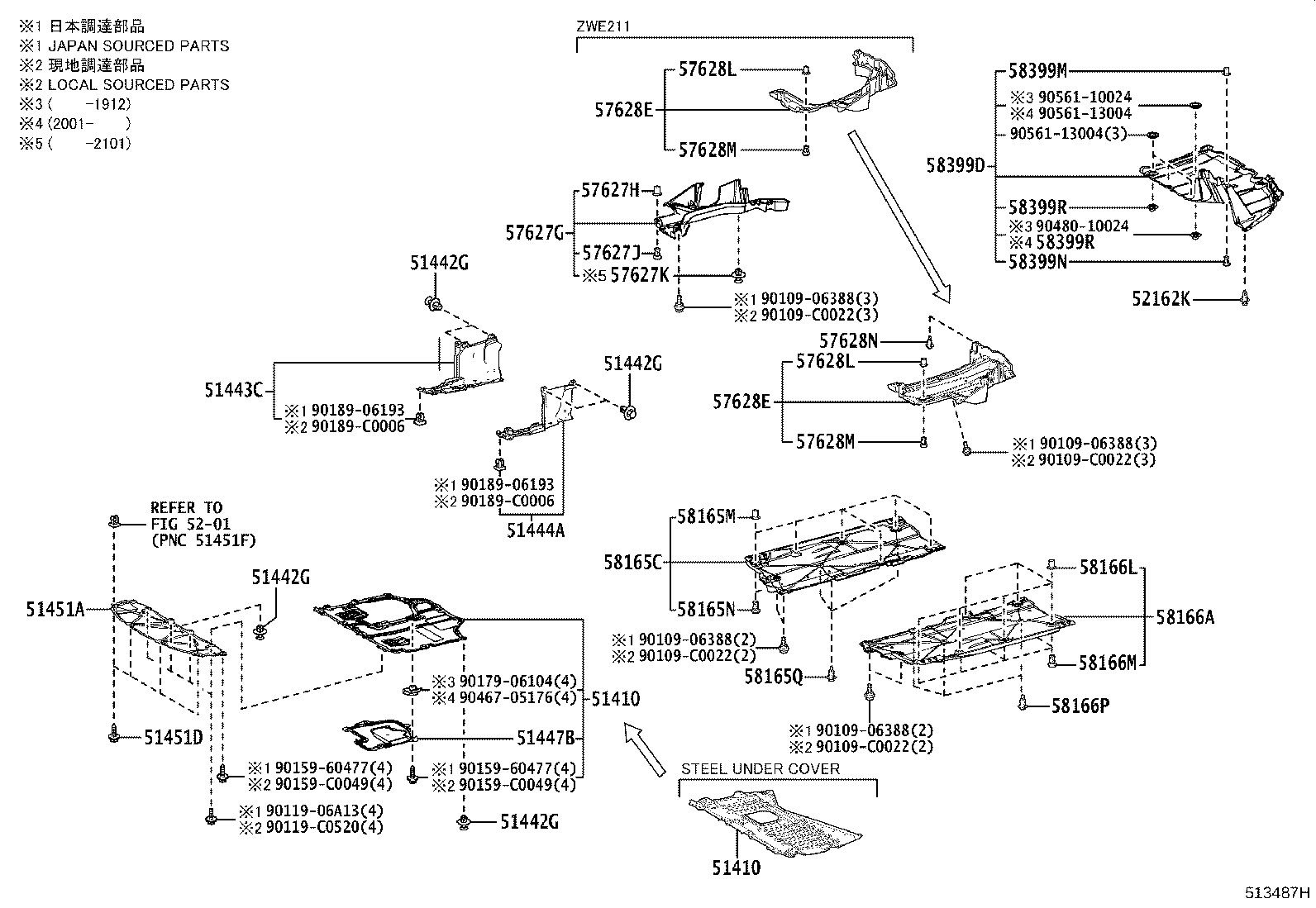

ILLUST NO. 2 OF 2(1906- )NRE210,ZWE211

Click highlighted areas on diagram

UNDER COVER

Part #	Description	Period	Qty
51410 - COVER ASSY, ENGINE UNDER, NO.1
51405-02010	NRE210..E ENGINE UNDER COVER & PROTECTOR-WITH(STEEL)	06/2019 - 07/2020	1
51410-02460	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51410 - COVER ASSY, ENGINE UNDER, NO.1
51405-02010	NRE210..E ENGINE UNDER COVER & PROTECTOR-WITH(STEEL)	06/2019 - 07/2020	1
51410-02460	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51443C - COVER, ENGINE UNDER, REAR RH
51443-02210	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51444A - COVER, ENGINE UNDER, REAR LH
51444-02270	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51447B - PROTECTOR, OIL PAN
51447-02200	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51451A - COVER, ENGINE UNDER, CENTER
51451-02240	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
51451D - SCREW, NO.1
90159-C0049	MZEA11,NRE210,ZWE211..CVT (L)	06/2019 - 12/2999	4
90159-60477	MZEA11,NRE210,ZWE211..CVT (J)	06/2019 - 12/2999	4
52162K - PIECE, REAR BUMPER
52161-02040	MZEA11,NRE210,ZWE211..CVT (L)	06/2019 - 12/2999	5
52161-16010	MZEA11,NRE210,ZWE211..CVT (J)	06/2019 - 12/2999	5
57627G - COVER, REAR FLOOR SIDE MEMBER, RH
57627-02220	NRE210,ZWE211	01/2021 - 12/2999	1
58390-02090	NRE210,ZWE211	06/2019 - 01/2021	1
57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17026A0	MZEA11,NRE210,ZWE211..CVT SUPER WHITE 2	06/2019 - 12/2999	1
57627J - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2
90467-17027C0	MZEA11,NRE210,ZWE211..CVT BLACK	06/2019 - 12/2999	1
57627K - CLIP, REAR FLOOR SIDE MEMBER COVER
90467-C0043	NRE210,ZWE211 (L)	06/2019 - 01/2021	5
90467-07220	NRE210,ZWE211 (J)	06/2019 - 01/2021	5
57628E - COVER, REAR FLOOR SIDE MEMBER, LH
57628-02240	MZEA11,NRE210..CVT	06/2019 - 12/2999	1
57628E - COVER, REAR FLOOR SIDE MEMBER, LH
57628-02240	MZEA11,NRE210..CVT	06/2019 - 12/2999	1
57628L - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17026A0	MZEA11,NRE210,ZWE211..CVT SUPER WHITE 2	06/2019 - 12/2999	1
57628L - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17026A0	MZEA11,NRE210,ZWE211..CVT SUPER WHITE 2	06/2019 - 12/2999	1
57628M - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2
90467-17027C0	MZEA11,NRE210,ZWE211..CVT BLACK	06/2019 - 12/2999	1
57628M - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2
90467-17027C0	MZEA11,NRE210,ZWE211..CVT BLACK	06/2019 - 12/2999	1
57628N - CLIP, REAR FLOOR SIDE MEMBER COVER
90467-07220	MZEA11,NRE210,ZWE211..CVT (J)	06/2019 - 12/2999	1
90467-C0043	MZEA11,NRE210,ZWE211..CVT (L)	06/2019 - 12/2999	1
58165C - COVER, FRONT FLOOR, RH
58165-02290	MZEA11,NRE210..CVT	06/2019 - 12/2999	1
58165M - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0	MZEA11,NRE210,ZWE211..CVT SUPER WHITE 2	06/2019 - 12/2999	6
58165N - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0	MZEA11,NRE210,ZWE211..CVT BLACK	06/2019 - 12/2999	6
58165Q - CLIP, FRONT FLOOR COVER
90467-C0043	MZEA11,NRE210,ZWE211..CVT (L)	06/2019 - 12/2999	3
90467-07220	MZEA11,NRE210,ZWE211..CVT (J)	06/2019 - 12/2999	3
58166A - COVER, FRONT FLOOR, LH
58166-02240	MZEA11,NRE210,ZWE211..CVT	06/2019 - 12/2999	1
58166L - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0	MZEA11,NRE210,ZWE211..CVT SUPER WHITE 2	06/2019 - 12/2999	6
58166M - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0	MZEA11,NRE210,ZWE211..CVT BLACK	06/2019 - 12/2999	6
58166P - CLIP, FRONT FLOOR COVER
90467-07220	MZEA11,NRE210,ZWE211..CVT (J)	06/2019 - 12/2999	3
90467-C0043	MZEA11,NRE210,ZWE211..CVT (L)	06/2019 - 12/2999	3
58399D - COVER, FLOOR UNDER, NO.2
58399-02250	NRE210,ZWE211	06/2019 - 12/2019	1
58399-02251	MZEA11,NRE210,ZWE211..CVT	01/2020 - 12/2999	1
58399M - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0	MZEA11,NRE210,ZWE211..CVT SUPER WHITE 2	06/2019 - 12/2999	1
58399N - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0	MZEA11,NRE210,ZWE211..CVT BLACK	06/2019 - 12/2999	1
58399R - CLIP, FLOOR UNDER COVER, NO.3
90467-14053	NRE210,ZWE211	06/2019 - 12/2019	3
90467-14054	MZEA11,NRE210,ZWE211..CVT	01/2020 - 12/2999	4
58399R - CLIP, FLOOR UNDER COVER, NO.3
90467-14053	NRE210,ZWE211	06/2019 - 12/2019	3
90467-14054	MZEA11,NRE210,ZWE211..CVT	01/2020 - 12/2999	4
Common parts
90109-06388
90109-C0022
90119-06A13
90119-C0520
90159-60477
90159-C0049
90179-06104
90189-06193
90189-C0006
90467-05176
90480-10024
90561-10024
90561-13004
Linked diagrams
5201

NRE210L-CEXEZC (2019)

ILLUST NO. 1 OF 2(1906- )CVT

ILLUST NO. 2 OF 2(1906- )NRE210,ZWE211
