NRE181L-CEXEZC (2016)

Toyota Levin/Hybrid

Production Dec 2016 - Jun 2017
Engine 9NRFTS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1612- )NRE181

Click highlighted areas on diagram

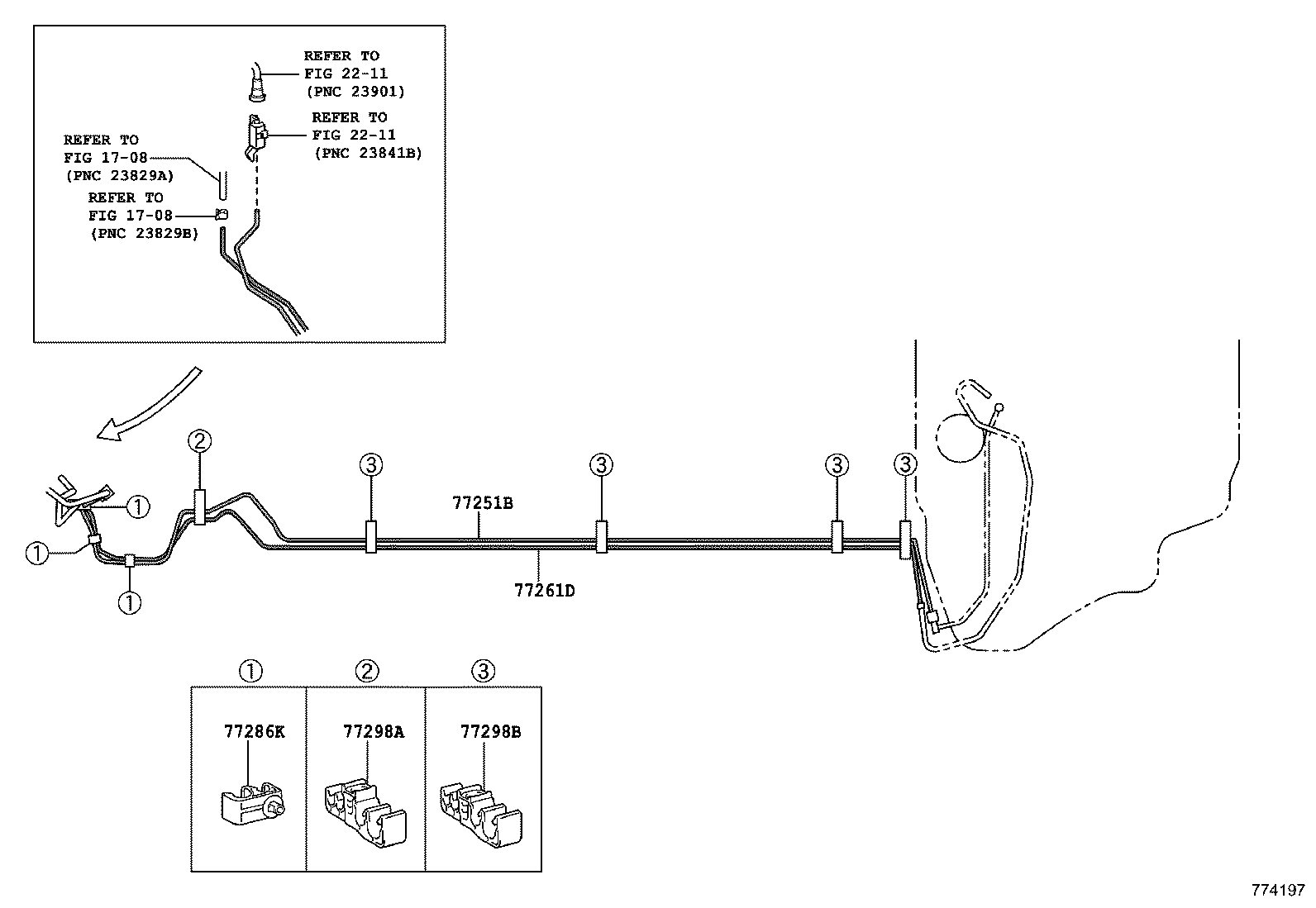

FUEL TUBE

diagram 1708 1708 2211 2211 77251B 77261D 77286K 77298A 77298B
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-02A20

NRE181

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-02690

NRE181

 1
77286K - CLAMP, FUEL TUBE, NO.2
77286-75010

NRE181

 3
77298A - CLAMP, FUEL TUBE, NO.4
77298-75010

NRE181

 1
77298B - CLAMP, FUEL TUBE, NO.4
77298-12150

NRE181

 4
Linked diagrams
1708
2211
