NRE181L-CEFNZC (2017)

Toyota Levin/Hybrid

Production Jun 2017 - May 2019
Engine 9NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1706- )

Click highlighted areas on diagram

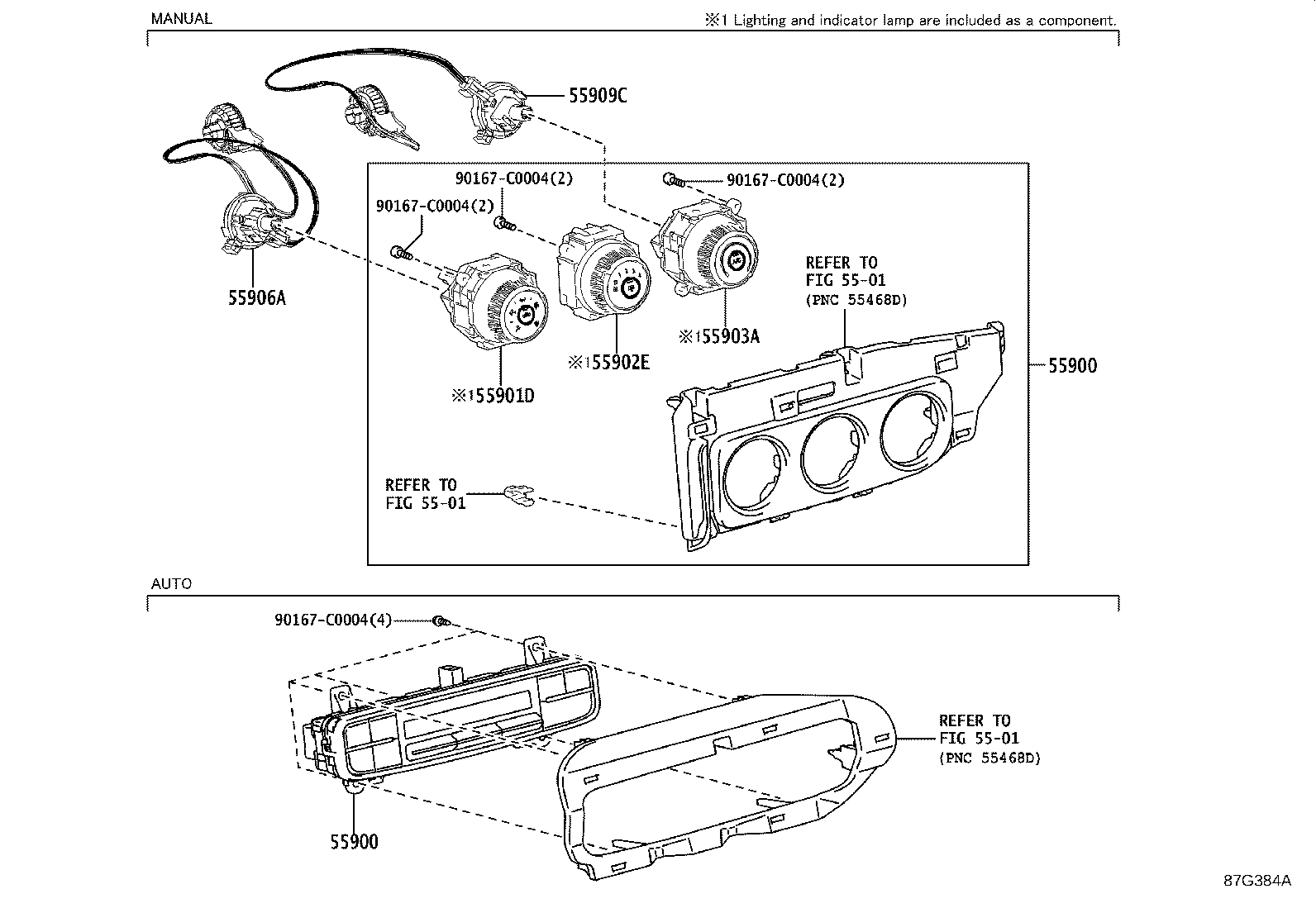

HEATER CONTROL PANEL

diagram 5501 5501 5501 55900 55900 55901D 55902E 55903A 55906A 55909C 90167C0004 90167C0004 90167C0004 90167C0004
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02C20

NRE181,ZRE182..E,G,N

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02C20

NRE181,ZRE182..E,G,N

 1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-02120

NRE181,ZRE18#..E,G,N

 1
55901-02120

NRE181,ZRE182..E,G,N

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-02261

NRE181,ZRE18#..E,G,N

 1
55902-02261

NRE181,ZRE182..E,G,N

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-02370

NRE181,ZRE182..E,G,N

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0K010

NRE181,ZRE182..E,G,N

 1
55906-0K010

NRE181,ZRE18#..E,G,N

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

NRE181,ZRE182..E,G,N

 1
55909-0K010

NRE181,ZRE18#..E,G,N

 1
Common parts
90167-C0004
Linked diagrams
5501
