NRE181L-CEFNZC (2017)

Toyota Levin/Hybrid

Production Jun 2017 - May 2019
Engine 9NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )

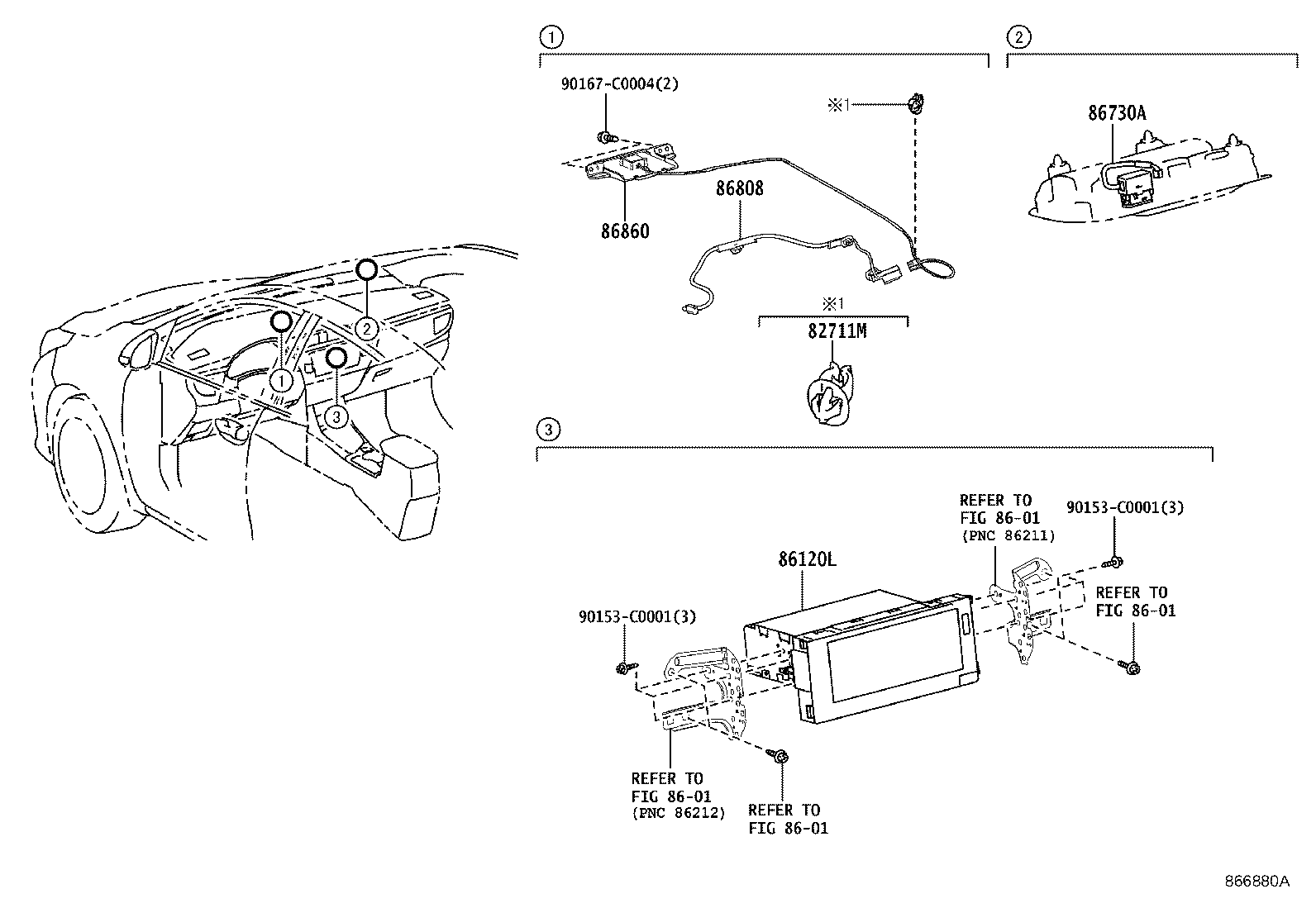

Click highlighted areas on diagram

diagram 82711M 8601 8601 8601 8601 86120L 86730A 86808 86860 90153C0001 90153C0001 90167C0004
Part # Description Qty Price
82711M - CLAMP, WIRING HARNESS
82711-1A750

NRE181,ZRE182..E,G

AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
86120L - RECEIVER ASSY, NAVIGATION
86100-YY140

ZWE182..G;NRE181,ZRE182..E,G

FUJITSU TEN,AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-06020

ZWE182..G;NRE181,ZRE182..E,G

AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
86808-02130

ZWE182..G;NRE181,ZRE182..E,G

AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-02060

ZWE182..G;NRE181,ZRE182..E,G

AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
Common parts
90153-C0001
90167-C0004
Linked diagrams
8601
