NRE181L-CEFNZC (2017)

Toyota Levin/Hybrid

Production Jun 2017 - May 2019
Engine 9NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 6 OF 9(1706- )NRE181,ZRE182

Click highlighted areas on diagram

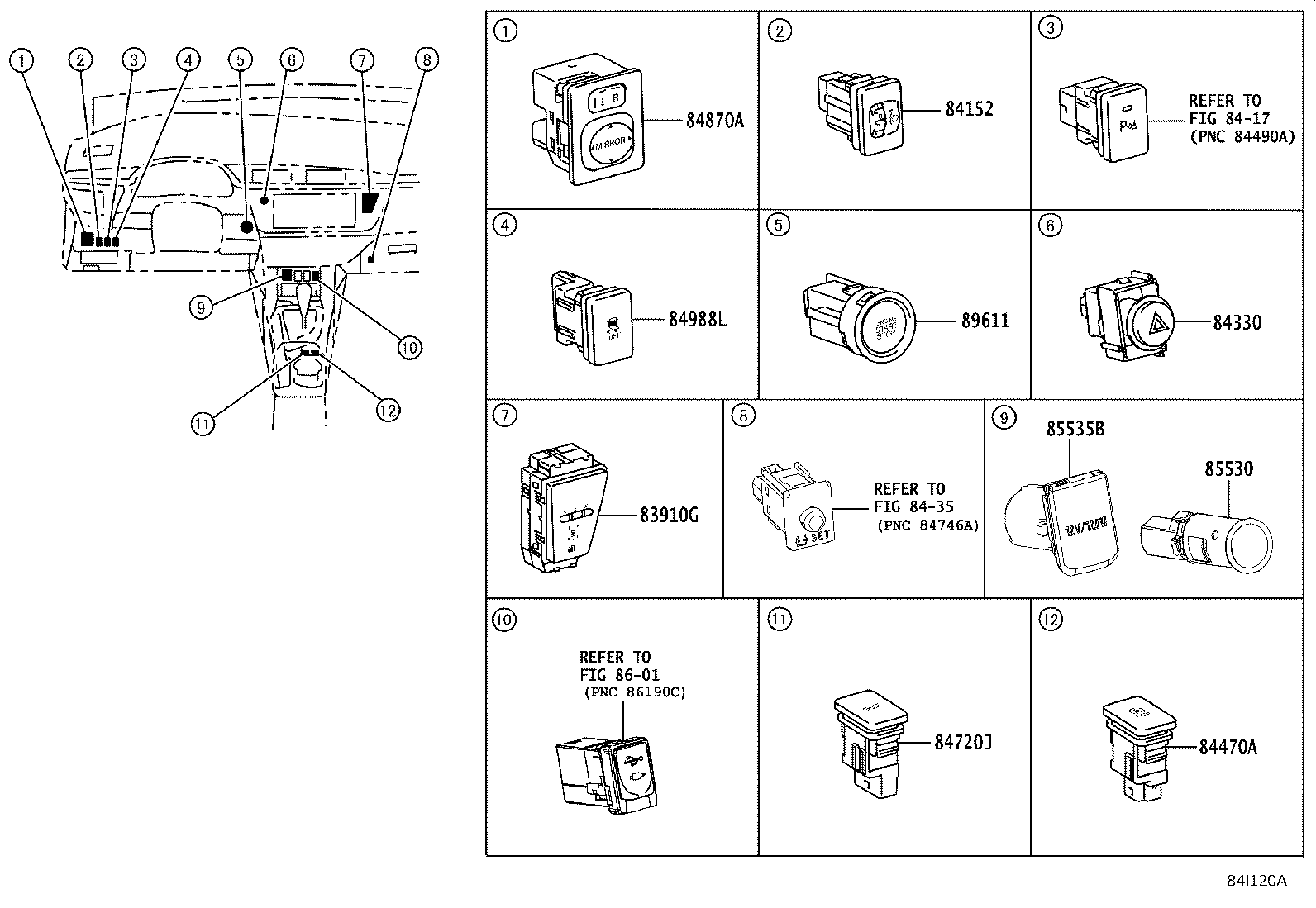

INSTRUMENT PANEL

diagram 83910G 84152 8417 84330 8435 84470A 84720J 84870A 84988L 85530 85535B 8601 89611
Part # Description Qty Price
83910G - CLOCK ASSY
83910-02190

ZRE182..CVT;NRE181,ZWE182

 1
83910-02330

ZWE182..G,V;NRE181,ZRE182..E,G,V

 1
83910-02340

NRE181..N;ZWE182..E

 1
84152 - SWITCH, HEADLAMP LEVELING
84152-02121

NRE181,ZRE182..E,G,N

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-02370

NRE181,ZRE182,ZWE182

 1
84470A - SWITCH ASSY, ECORUN CANCEL
84470-0E031

NRE181,ZRE182

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-02230

NRE181,ZRE182,ZWE182

 1
84870-02230

ZRE182..CVT;NRE181,ZWE182

 1
84988L - SWITCH, VSC OFF
84988-02061

NRE181,ZRE182,ZWE182

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0E070

NRE181,ZRE182,ZWE182

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-02100

NRE181,ZRE182,ZWE182

 1
Linked diagrams
8417
8435
8601
