NRE181L-CEFNZC (2017)
Toyota Levin/Hybrid
(1706- )NRE181,ZRE182
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-C0186 |
NRE181,ZRE182,ZWE182 |
8 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-02290 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 52021-02290 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02470 |
NRE181,ZRE182 |
1 | ||
| 52115-02300 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02300 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 52116-02450 |
NRE181,ZRE182 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F2903 |
NRE181,ZRE182 PAINT REQ. |
1 | ||
| 52119-0Z951 |
NRE181,ZRE18# PAINT REQ. |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-C0012 |
NRE181,ZRE18#,ZWE182 |
8 | ||
| 90159-60477 |
NRE181,ZRE182,ZWE182 |
8 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-C0012 |
NRE181,ZRE18#,ZWE182 |
8 | ||
| 90159-60477 |
NRE181,ZRE182,ZWE182 |
8 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-C0012 |
NRE181,ZRE18#,ZWE182 |
8 | ||
| 90159-60477 |
NRE181,ZRE182,ZWE182 |
8 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-02310 |
NRE181,ZRE182 |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-02300 |
NRE181,ZRE182 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-02923 |
NRE181;ZRE182..CVT |
1 | ||
| 52127-02942 |
NRE181,ZRE182 |
1 | ||
| 52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-02180 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 52145-02180 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-02160 |
ZRE182..CVT;NRE181,ZWE182 |
1 | ||
| 52146-02160 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRE182..CVT;NRE181,ZWE182 (J) |
3 | ||
| 52161-02040 |
NRE181,ZRE182,ZWE182 |
3 | ||
| 52439A - TAPE, FRONT BUMPER GUARD PRTECTOR | ||||
| 52439-02010 |
NRE181,ZRE182 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02480 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02120 |
NRE181,ZRE18#,ZWE182 |
1 | ||
| 52618-02120 |
NRE181,ZRE182,ZWE182 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-02070 |
NRE181,ZRE182 PLATED |
1 | ||
| 52711-02090 |
NRE181..E;ZRE182..CVT PLATED |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-02020 |
NRE181,ZRE182 |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-02020 |
NRE181,ZRE182 |
1 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-02230 |
NRE181,ZRE182..E,G,V |
1 | ||
| 53102-02270 |
NRE181..N |
1 | ||
| 53102-02260 |
NRE181,ZRE182..E,G,V |
1 | ||
| 53122B - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-02160 |
NRE181..N |
1 | ||
| 53122-02170 |
NRE181,ZRE182..E,G,V |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-06080 |
ZRE182..CVT;NRE181,ZWE182 |
2 | ||
| 53879-06080 |
NRE181,ZRE182,ZWE182 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-C0024 |
NRE181,ZRE182 (L) |
4 | ||
| 90189-06237 |
NRE181;ZRE182..CVT |
4 | ||
| 90189-06237 |
NRE181,ZRE182 |
4 | ||
| 90189-06237 |
NRE181,ZRE182 (J) |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-C0024 |
NRE181,ZRE182 (L) |
4 | ||
| 90189-06237 |
NRE181;ZRE182..CVT |
4 | ||
| 90189-06237 |
NRE181,ZRE182 |
4 | ||
| 90189-06237 |
NRE181,ZRE182 (J) |
4 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02510 |
NRE181..E;ZRE182..CVT |
1 | ||
| 81481-02830 |
NRE181..N |
1 | ||
| 81481-02840 |
NRE181,ZRE182..E,G,V |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02820 |
NRE181..N |
1 | ||
| 81482-02500 |
NRE181..E;ZRE182..CVT |
1 | ||
| 81482-02830 |
NRE181,ZRE182..E,G,V |
1 | ||
| Common parts | ||||
| 90119-C0157 | ||||
| 90119-C0186 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90189-06237 | ||||
| 90467-05170 | ||||
| 90467-09237 | ||||
| 90467-C0032 | ||||
| 90467-C0058 | ||||

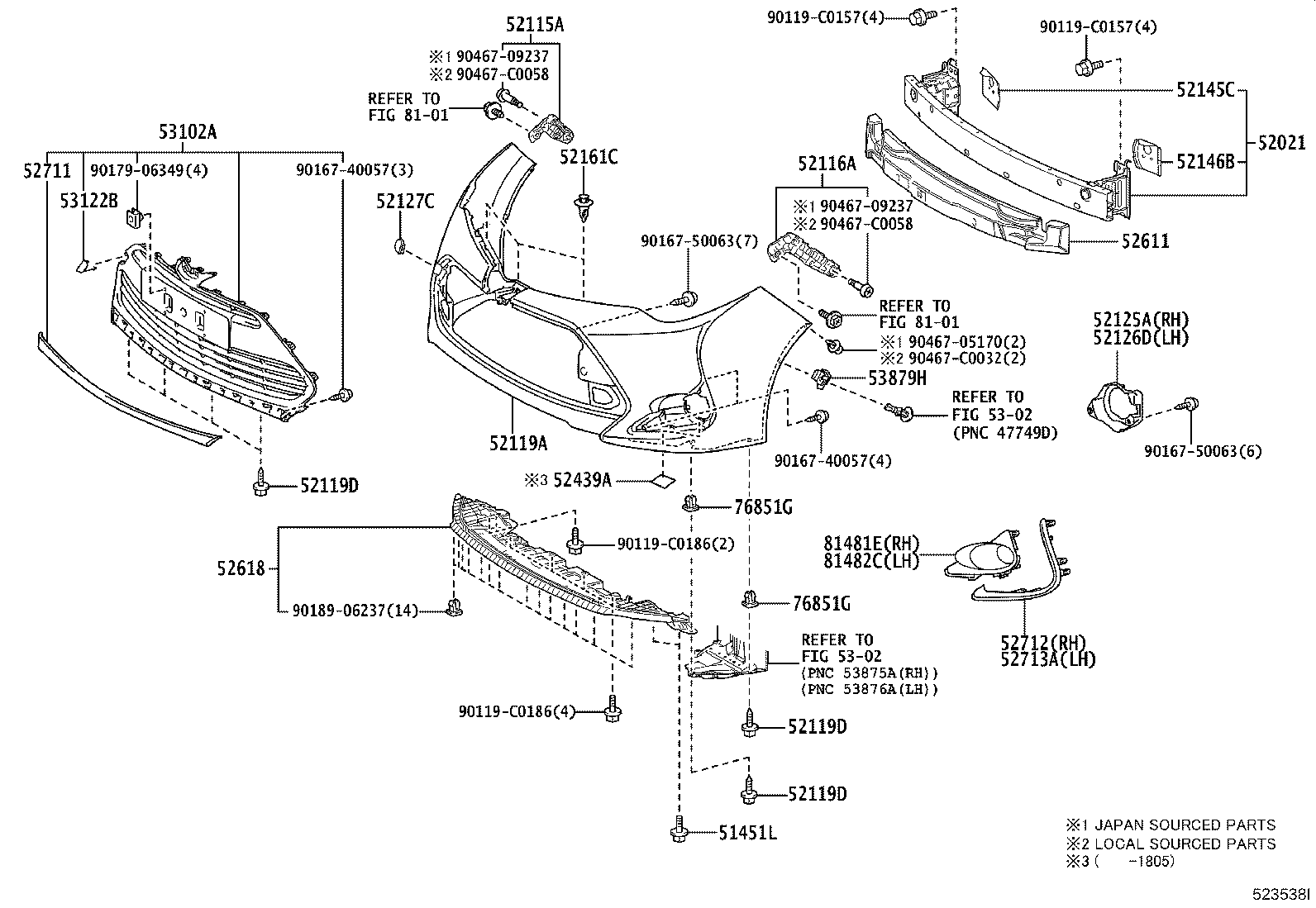

| Linked diagrams | ||||
| 5302 | ||||
| 8101 | ||||
