NRE181L-CEFNZC (2017)

Toyota Levin/Hybrid

Production Jun 2017 - May 2019
Engine 9NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1810- )9NRFTS

Click highlighted areas on diagram

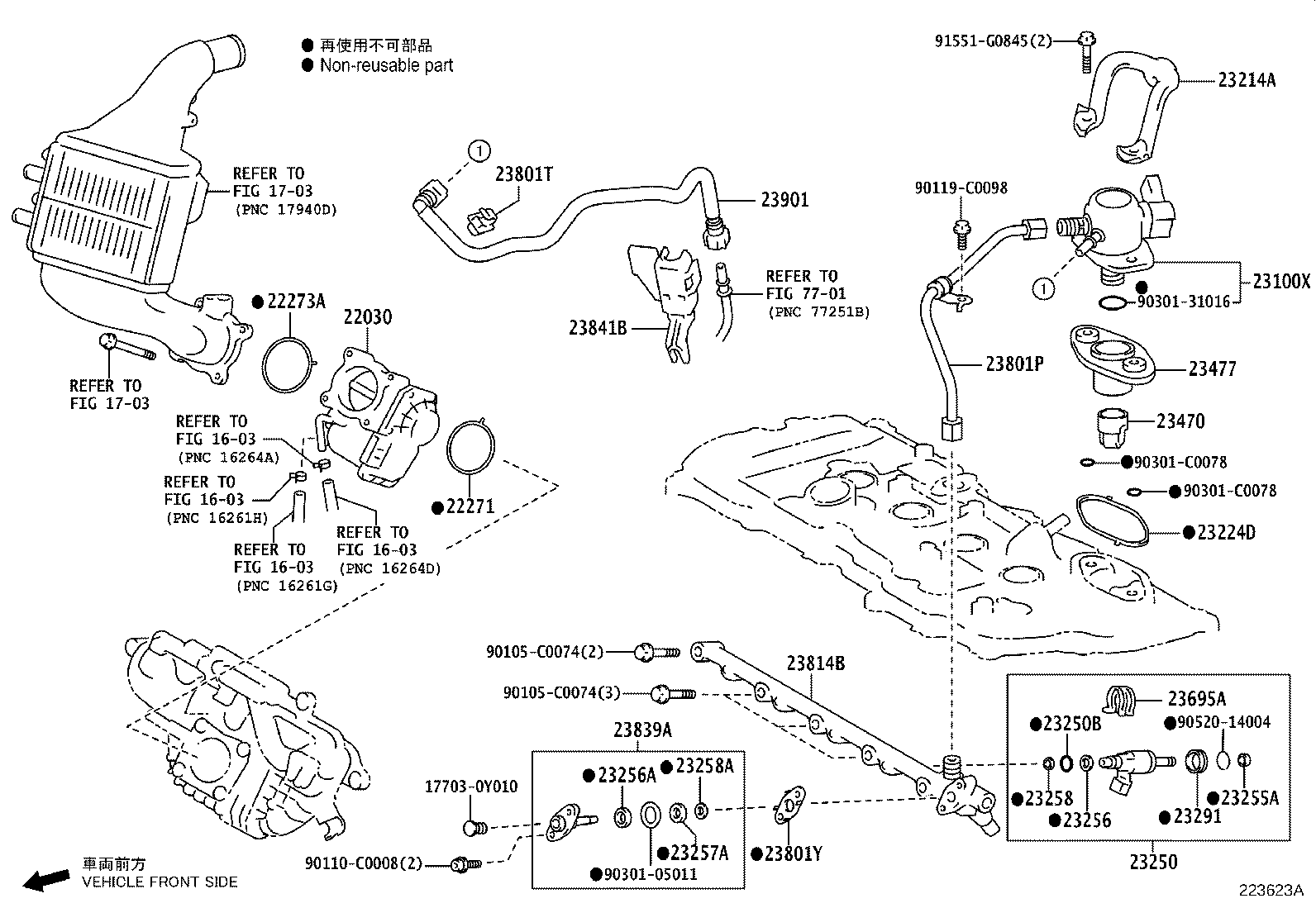

EXHAUST EMISSION CONTROL-CHINA 6B

diagram 1603 1603 1603 1603 1703 1703 177030Y010 22030 22271 22273A 23100X 23214A 23224D 23250 23250B 23255A 23256 23256A 23257A 23258 23258A 23291 23470 23477 23695A 23801P 23801T 23801Y 23814B 23839A 23841B 23901 7701 90105C0074 90105C0074 90110C0008 90119C0098 9030105011 9030131016 90301C0078 90301C0078 9052014004 91551G0845
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0Y070

9NRFTS..NRE181

 1
22271 - GASKET, THROTTLE BODY
22271-0Y050

9NRFTS..NRE181

 1
22273A - GASKET, THROTTLE BODY, NO.2
22271-0Y050

9NRFTS..NRE181

 1
23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE)
23101-0Y010

9NRFTS..NRE181

 1
23214A - PROTECTOR, FUEL PUMP
23214-0Y010

9NRFTS..NRE181

 1
23224D - GASKET, FUEL PUMP SPACER
23224-0Y010

9NRFTS..NRE181

 1
23250 - INJECTOR ASSY, FUEL
23209-0Y09003

9NRFTS..NRE181

MARK 3,REFER REPAIR MANUAL

 4
23209-0Y09001

9NRFTS..NRE181

MARK 1,REFER REPAIR MANUAL

 4
23209-0Y09002

9NRFTS..NRE181

MARK 2,REFER REPAIR MANUAL

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-05011

9NRFTS..NRE181

 4
90301-05013

9NRFTS..NRE181

 4
23255A - SEAL, FUEL INJECTOR
23255-31030

9NRFTS..NRE181

 4
23255-31020

9NRFTS..NRE181

 4
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-31010

9NRFTS..NRE181

 4
23256-25010

9NRFTS..NRE181

 4
23256A - RING, FUEL PIPE, NO.1
23256-31010

9NRFTS..NRE181

 1
23257A - RING, FUEL PIPE, NO.2
23257-47010

9NRFTS..NRE181

 1
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-47030

9NRFTS..NRE181

 4
23258A - RING, FUEL PIPE, NO.3
23258-31010

9NRFTS..NRE181

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-31020

9NRFTS..NRE181

 4
23470 - LIFTER ASSY, FUEL PUMP
23470-0Y010

9NRFTS..NRE181

 1
23477 - GUIDE, FUEL PUMP LIFTER
23477-0Y010

9NRFTS..NRE181

 1
23695A - CLAMP, NOZZLE HOLDER
23695-0Y010

9NRFTS..NRE181

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-0Y010

9NRFTS..NRE181

 1
23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI)
23841-47020

9NRFTS..NRE181

 1
23841-0Y120

9NRFTS..NRE181

(L)

 1
23841-47020

9NRFTS..NRE181

(J)

 1
23801Y - GASKET
23893-0Y010

9NRFTS..NRE181

 1
23814B - PIPE, FUEL DELIVERY
23800-0Y010

9NRFTS..NRE181

 1
23839A - PLUG, FUEL PIPE, NO.1
23809-47010

9NRFTS..NRE181

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-37090

9NRFTS..NRE181

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0Y351

9NRFTS..NRE181

 1
23901-0Y350

9NRFTS..NRE181

 1
23901-0Y230

9NRFTS..NRE181

 1
Common parts
17703-0Y010
90105-C0074
90110-C0008
90119-C0098
90301-05011
90301-31016
90301-C0078
90520-14004
91551-G0845
Linked diagrams
1603
1703
7701
