NRE181L-CEFNZC (2017)
Toyota Levin/Hybrid
Production
Jun 2017
-
May 2019
Engine
9NRFTS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1806- )9NRFTS

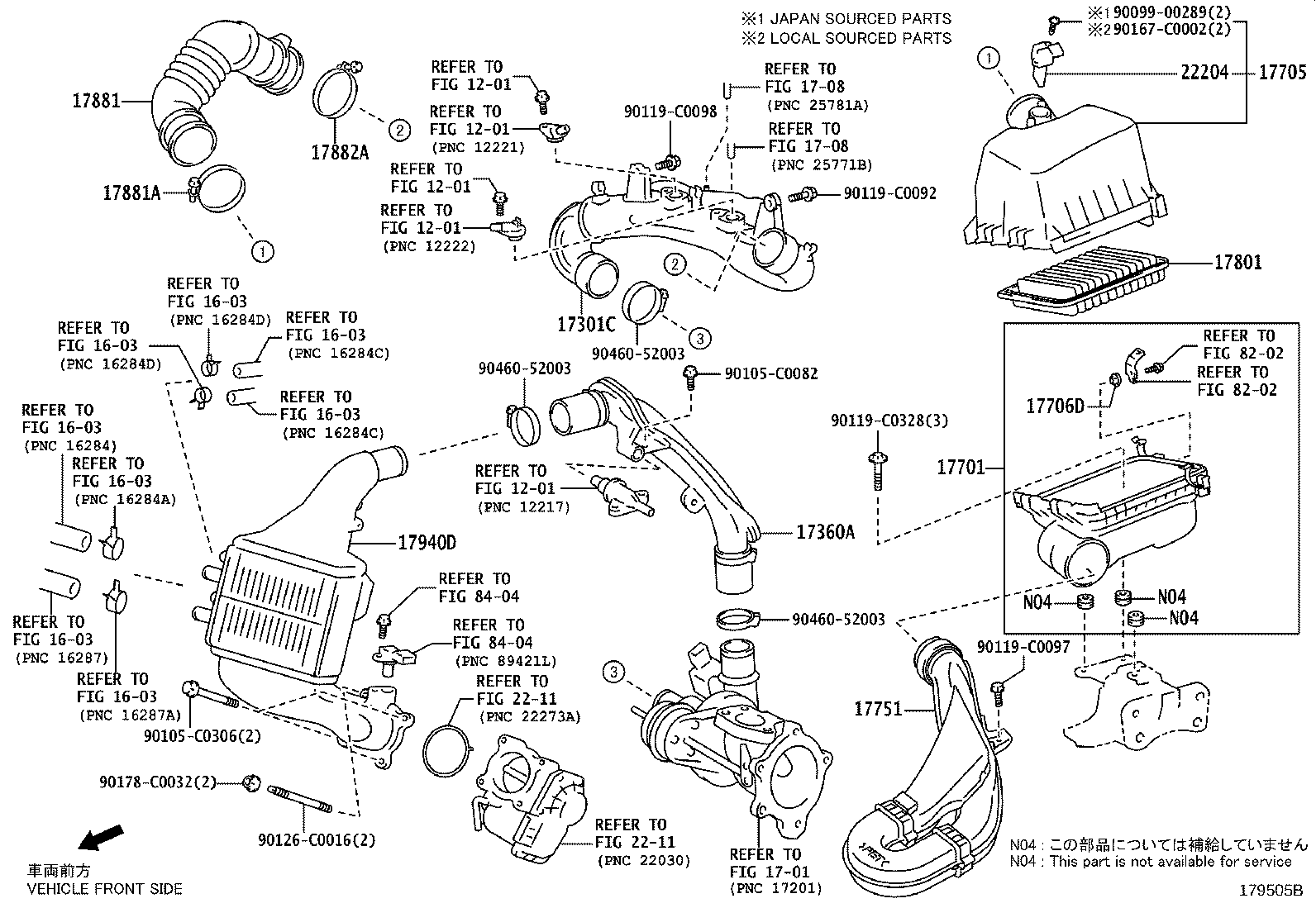

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17301C - DUCT SUB-ASSY, AIR INLET, NO.1 | ||||
| 17301-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 17301-0Y011 |
9NRFTS..NRE181 |
1 | ||
| 17301-0Y021 |
9NRFTS..NRE181 |
1 | ||
| 17360A - TUBE ASSY, AIR | ||||
| 17360-0Y020 |
9NRFTS..NRE181 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0T100 |
9NRFTS..NRE181 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0Y230 |
9NRFTS..NRE181 |
1 | ||
| 17706D - STAY SUB-ASSY, AIR CLEANER | ||||
| 17706-22010 |
9NRFTS..NRE181 (J) |
1 | ||
| 17706-0T010 |
9NRFTS..NRE181 (L) |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0T181 |
9NRFTS..NRE181 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0T020 |
9NRFTS..NRE181 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0Y230 |
9NRFTS..NRE181 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
9NRFTS..NRE181 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10670 |
9NRFTS..NRE181 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0Y010 |
9NRFTS..NRE181 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
9NRFTS..NRE181 (J) |
1 | ||
| 22204-0Y020 |
9NRFTS..NRE181 (L) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90105-C0082 | ||||
| 90105-C0306 | ||||
| 90119-C0092 | ||||
| 90119-C0097 | ||||
| 90119-C0098 | ||||
| 90119-C0328 | ||||
| 90126-C0016 | ||||
| 90167-C0002 | ||||
| 90178-C0032 | ||||
| 90460-52003 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1701 | ||||
| 1708 | ||||
| 2211 | ||||
| 8202 | ||||
| 8404 | ||||
