NRE181L-CEFNZC (2017)

Toyota Levin/Hybrid

Production Jun 2017 - May 2019
Engine 9NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )9NRFTS

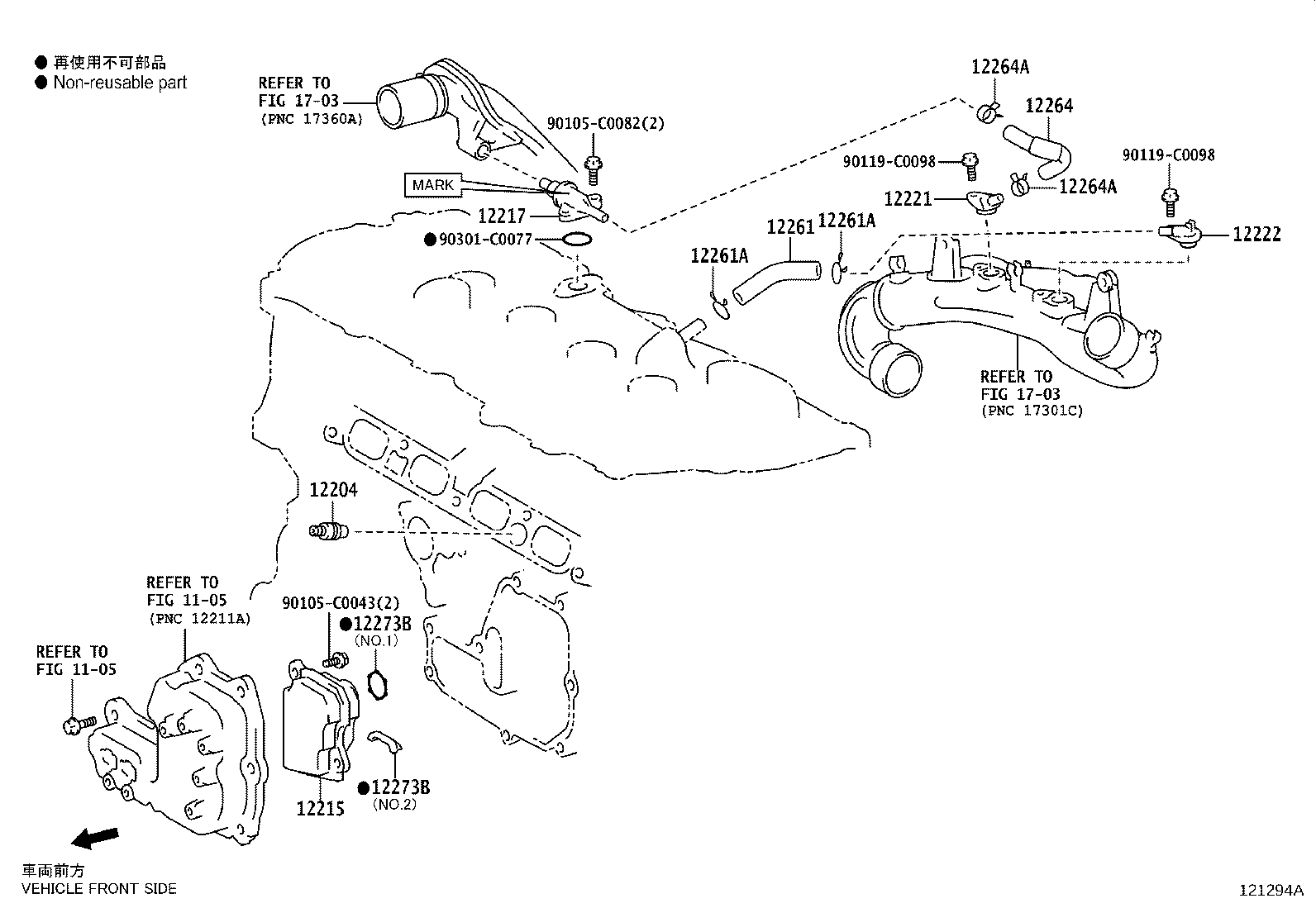

Click highlighted areas on diagram

W/O(*EXEC = CHINA 6B)

diagram 1105 1105 12204 12215 12217 12221 12222 12261 12261A 12261A 12264 12264A 12264A 12273B 12273B 1703 1703 90105C0043 90105C0082 90119C0098 90119C0098 90301C0077
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-0Y030

9NRFTS..NRE181

 1
12215 - SEPARATOR, CASE
12215-0Y010

9NRFTS..NRE181

 1
12217 - EJECTOR, VENTILATION
12217-0Y020

9NRFTS..NRE181

MARK 12217-0Y020

 1
12217-0Y010

9NRFTS..NRE181

MARK 12217-0Y010

 1
12221 - TUBE, VENTILATION NO.1
12221-0Y010

9NRFTS..NRE181

 1
12222 - TUBE, VENTILATION, NO.2
12222-0Y010

9NRFTS..NRE181

 1
12261 - HOSE, VENTILATION
12261-0Y110

9NRFTS..NRE181

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

9NRFTS..NRE181

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

9NRFTS..NRE181

 2
12264 - HOSE, VENTILATION, NO.4
12262-47050

9NRFTS..NRE181

 1
12264-0Y010

9NRFTS..NRE181

 1
12264A - CLIP(FOR VENTILATION HOSE)
96137-52501

9NRFTS..NRE181

 2
12264A - CLIP(FOR VENTILATION HOSE)
96137-52501

9NRFTS..NRE181

 2
12273B - GASKET, OIL SEPARATOR
12273-0Y010

9NRFTS..NRE181

NO.1:REFER ILLUST.

 1
12273-0Y020

9NRFTS..NRE181

NO.2:REFER ILLUST.

 1
12273B - GASKET, OIL SEPARATOR
12273-0Y010

9NRFTS..NRE181

NO.1:REFER ILLUST.

 1
12273-0Y020

9NRFTS..NRE181

NO.2:REFER ILLUST.

 1
Common parts
90105-C0043
90105-C0082
90119-C0098
90301-C0077
Linked diagrams
1105
1703
