MZEA11L-CEXNBC (2021)

Toyota Levin/Hybrid

Production Jan 2021 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

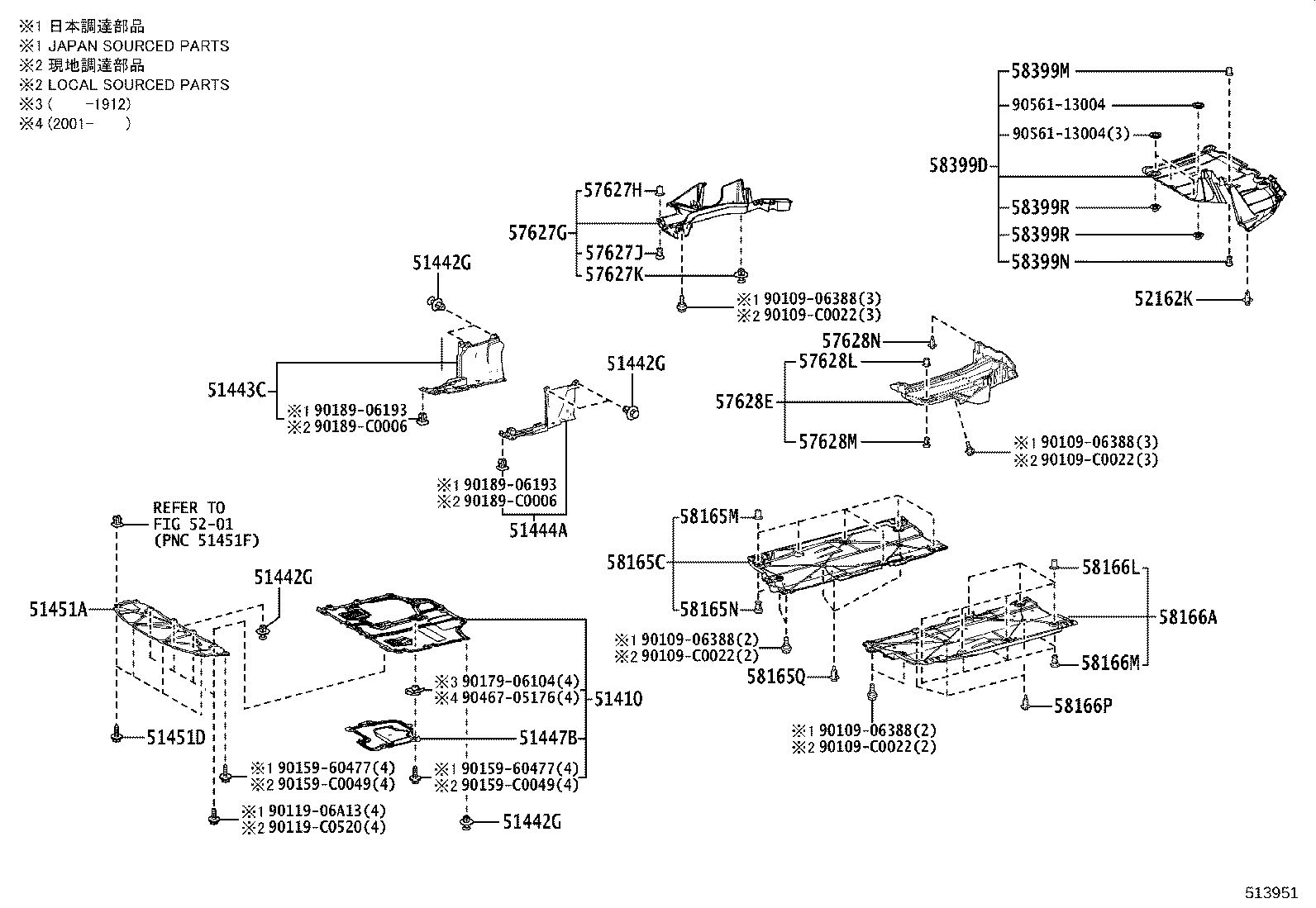

ILLUST NO. 2 OF 2(2101- )MZEA11..CVT

Click highlighted areas on diagram

UNDER COVER

diagram 51410 51442G 51442G 51442G 51442G 51443C 51444A 51447B 51451A 51451D 5201 52162K 57627G 57627H 57627J 57627K 57628E 57628L 57628M 57628N 58165C 58165M 58165N 58165Q 58166A 58166L 58166M 58166P 58399D 58399M 58399N 58399R 58399R 9010906388 9010906388 9010906388 9010906388 90109C0022 90109C0022 90109C0022 90109C0022 9011906A13 90119C0520 9015960477 9015960477 90159C0049 90159C0049 9017906104 9018906193 9018906193 90189C0006 90189C0006 9046705176 9056113004 9056113004
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-02460

MZEA11,NRE210,ZWE211..CVT

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

MZEA11,NRE210,ZWE211..CVT

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

MZEA11,NRE210,ZWE211..CVT

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

MZEA11,NRE210,ZWE211..CVT

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

MZEA11,NRE210,ZWE211..CVT

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-02210

MZEA11,NRE210,ZWE211..CVT

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-02270

MZEA11,NRE210,ZWE211..CVT

 1
51447B - PROTECTOR, OIL PAN
51447-02200

MZEA11,NRE210,ZWE211..CVT

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-02240

MZEA11,NRE210,ZWE211..CVT

 1
51451D - SCREW, NO.1
90159-C0049

MZEA11,NRE210,ZWE211..CVT

(L)

 4
90159-60477

MZEA11,NRE210,ZWE211..CVT

(J)

 4
52162K - PIECE, REAR BUMPER
52161-02040

MZEA11,NRE210,ZWE211..CVT

(L)

 5
52161-16010

MZEA11,NRE210,ZWE211..CVT

(J)

 5
57627G - COVER, REAR FLOOR SIDE MEMBER, RH
58390-02090

MZEA11..CVT

 1
57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17026A0

MZEA11,NRE210,ZWE211..CVT

SUPER WHITE 2

 1
57627J - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2
90467-17027C0

MZEA11,NRE210,ZWE211..CVT

BLACK

 1
57627K - CLIP, REAR FLOOR SIDE MEMBER COVER
90467-07220

MZEA11..CVT

(J)

 5
90467-C0043

MZEA11..CVT

(L)

 5
57628E - COVER, REAR FLOOR SIDE MEMBER, LH
57628-02240

MZEA11,NRE210..CVT

 1
57628L - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17026A0

MZEA11,NRE210,ZWE211..CVT

SUPER WHITE 2

 1
57628M - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2
90467-17027C0

MZEA11,NRE210,ZWE211..CVT

BLACK

 1
57628N - CLIP, REAR FLOOR SIDE MEMBER COVER
90467-07220

MZEA11,NRE210,ZWE211..CVT

(J)

 1
90467-C0043

MZEA11,NRE210,ZWE211..CVT

(L)

 1
58165C - COVER, FRONT FLOOR, RH
58165-02290

MZEA11,NRE210..CVT

 1
58165M - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0

MZEA11,NRE210,ZWE211..CVT

SUPER WHITE 2

 6
58165N - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0

MZEA11,NRE210,ZWE211..CVT

BLACK

 6
58165Q - CLIP, FRONT FLOOR COVER
90467-C0043

MZEA11,NRE210,ZWE211..CVT

(L)

 3
90467-07220

MZEA11,NRE210,ZWE211..CVT

(J)

 3
58166A - COVER, FRONT FLOOR, LH
58166-02240

MZEA11,NRE210,ZWE211..CVT

 1
58166L - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0

MZEA11,NRE210,ZWE211..CVT

SUPER WHITE 2

 6
58166M - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0

MZEA11,NRE210,ZWE211..CVT

BLACK

 6
58166P - CLIP, FRONT FLOOR COVER
90467-07220

MZEA11,NRE210,ZWE211..CVT

(J)

 3
90467-C0043

MZEA11,NRE210,ZWE211..CVT

(L)

 3
58399M - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0

MZEA11,NRE210,ZWE211..CVT

SUPER WHITE 2

 1
58399N - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0

MZEA11,NRE210,ZWE211..CVT

BLACK

 1
Common parts
90109-06388
90109-C0022
90119-06A13
90119-C0520
90159-60477
90159-C0049
90179-06104
90189-06193
90189-C0006
90467-05176
90561-13004
Linked diagrams
5201
