MZEA11L-CEXGBC (2021)

Toyota Levin/Hybrid

Production Jan 2021 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2101- )MZEA11..CVT

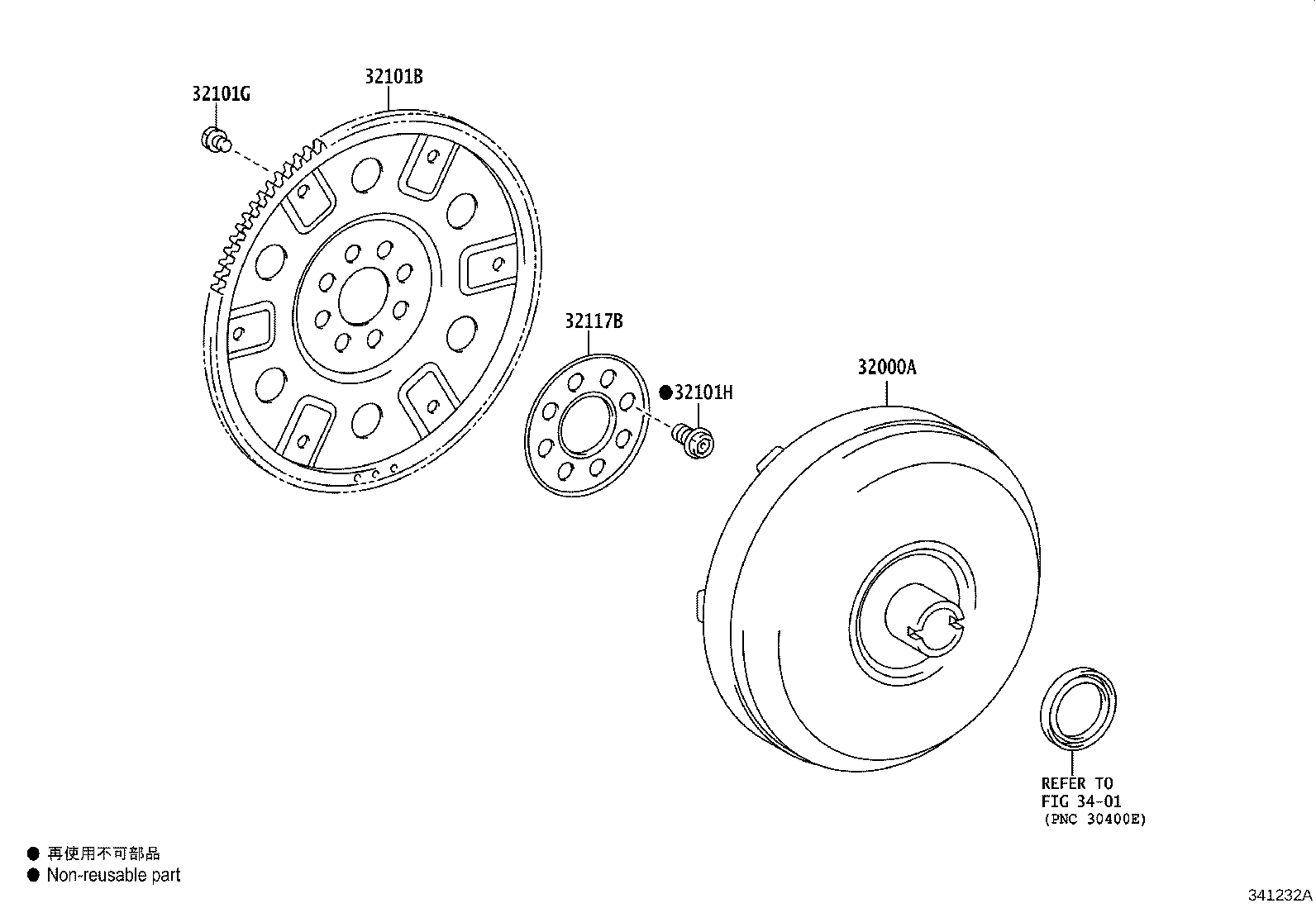

Click highlighted areas on diagram

K320

diagram 32000A 32101B 32101G 32101H 32117B 3401
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-K0010

MZEA11..CVT

AISIN AW:REFER 34-01

 1
32000-12540

MZEA11..CVT

TOYOTA:REFER 34-01

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-02070

MZEA11..CVT

(L)

 1
32101-52100

MZEA11..CVT

(J)

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

MZEA11..CVT

*8-1.25PX12-8,SILVER WHITE

 5
90109-08113

MZEA11..CVT

*8-1.25PX12-8.4,BLACK

 1
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12404

MZEA11..CVT

 8
32117B - SPACER, DRIVE PLATE, REAR
32117-33010

MZEA11..CVT

(J)

 1
32117-0R010

MZEA11..CVT

(L)

 1
Linked diagrams
3401
